#91006035

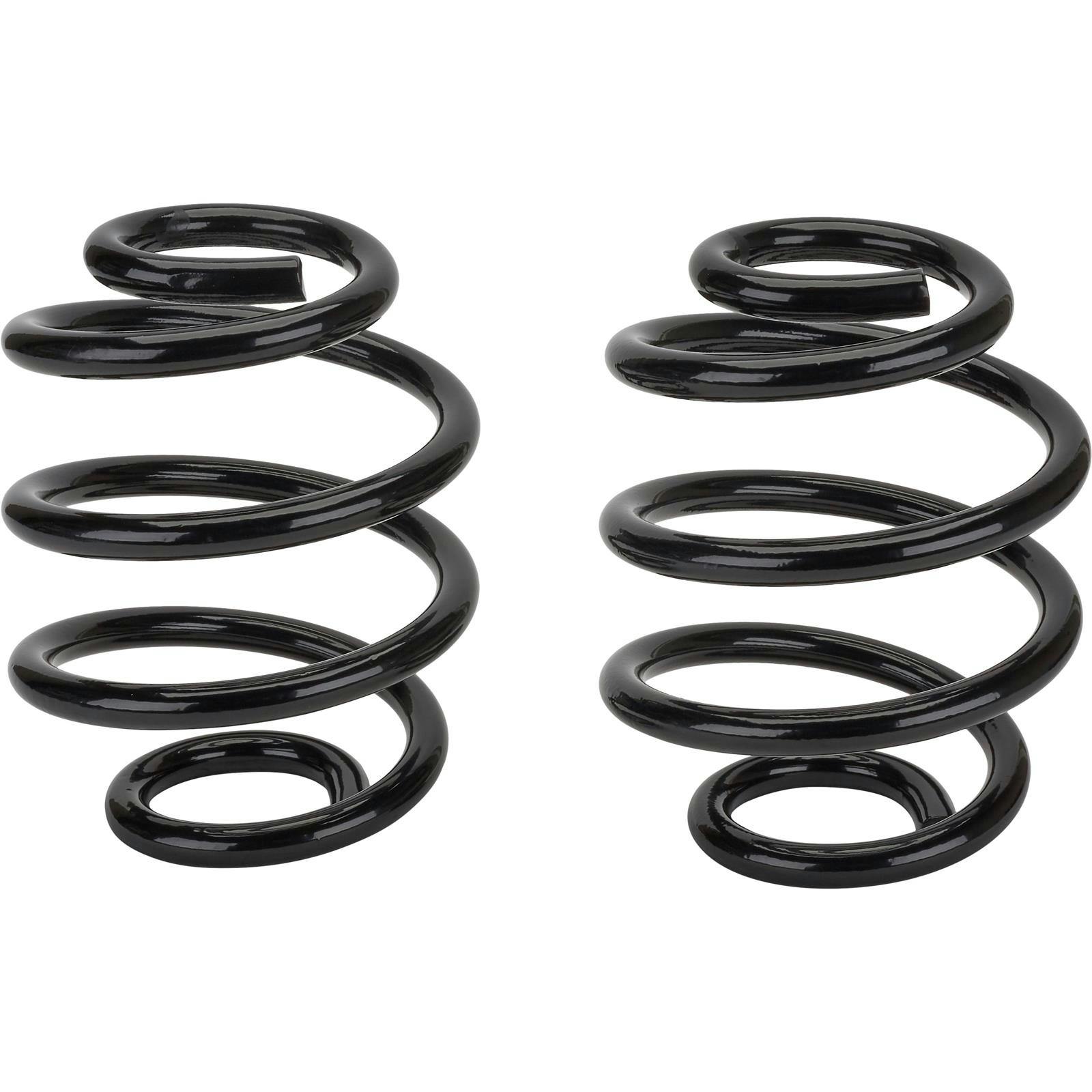

Rear Springs 1960-72 Chevy Truck 5 In Drop/1967-72 Chevelle 3 In Drop
19 Reviews
|
2 Questions
- Desgined to lower your V6/V8 truck 5" while still maintaining a proper spring to keep your suspension from bottoming out
- Fits '67-'72 GM A-Body, SBC cars offering a 3" drop over stock height
- Retains stock spring rate and ride quality in shorter length
See More
$118.99
pair
In Stock
$122.00
Save $3.01
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Buick, Chevy, GMC, Oldsmobile, Pontiac, Rear Position
- Desgined to lower your V6/V8 truck 5" while still maintaining a proper spring to keep your suspension from bottoming out
- Fits '67-'72 GM A-Body, SBC cars offering a 3" drop over stock height
- Retains stock spring rate and ride quality in shorter length
- Black powder coat finish for corrsion resistance with top and bottom pigtail design
- May not be suited for panels, Suburban or heavy duty towing applications
See more details
Key Specs
Position | Rear |
Spring Rate Range | 300 - 399 lbs. |
Spring Rate | 300 lbs. |
Free Height | 9" |
Outside Diameter | 7" |
See more specs
Need To Know
Free Shipping on Orders Over $149
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 91006035 Details
Speedway Motors 91006035 Details
These rear coils are desgined to lower your truck, while still maintaining a proper spring rate to keep your suspension from bottoming out. They work great on six-cylinder and V8 trucks, but may not be suited for panels, Suburban or heavy duty towing applications.
Retains stock spring rate and ride quality in shorter length.
Note: The drop rate is different on the A-Body cars than it is on the trucks. There is a 5" drop in the truck and 3" drop on the small block A bodies.
Application:
- 1967-1972 A-Body GM cars
- 1960-1972 Chevy Trucks
- 1967-1972 Chevelle
Speedway Motors 91006035 Specifications
Speedway Motors 91006035 Specifications
KEY SPECS | |
---|---|
MFG. Part # | 91006035 |
Brand | Speedway Motors |
Position | Rear |
Spring Rate Range | 300 - 399 lbs. |
Spring Rate | 300 lbs. |
Free Height | 9" |
Outside Diameter | 7" |
Material Type | Steel |
Finish | Powder Coated |
Color | Black |
GENERAL | |
Rear Suspension Height | 5.0 Inch Lowered |
Progressive Rate Spring | No |
Coil Spring End (A) | Pigtail |
Coil Spring End (B) | Pigtail |
Sold in Quantity | Pair |
