Ready to Run Pro Billet Distributor w/ Coil and Wires, SBC, Black
Chevy Small Block V8, HEI / Male Cap Terminal Style, Mechanical and Vacuum Advance Type, Black
Build Your KitYou're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
This kit is the perfect way to give your ride a street performance ignition upgrade at a price you can't beat! When your ignition system is due for an upgrade, this kit gives you the best performance and best reliability, at the best price. Kit includes Ready-to-Run Billet Distributor, Pertronix Flame-Thrower Coil and bracket, and MSD Street-Fire wires.
(1) Speedway Motors Ready to Run Pro Billet Distributor
This distributor features a CNC-machined billet aluminum body and hardened steel shaft, with a sealed ball bearing on top and a sintered steel bushing on the bottom. It also comes with a fully adjustable mechanical advance, vacuum advance, magnetic pickup trigger, and a high-output circuit board module with digital tach output. The dielectric cap comes with solid brass terminals and a color-matched wire retainer.

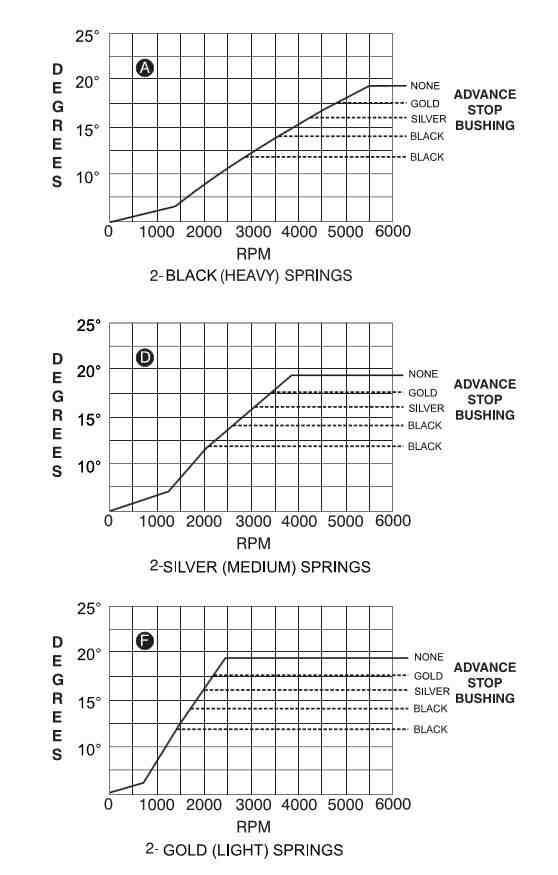

An important feature on all Speedway Motors Pro Series distributors is the fully adjustable mechanical advance. This allows you to easily modify the distributor to achieve a variety of timing curves. Included with all Pro Series distributors are four bushings of varied size. The bushing determines the mechanical advance the distributor can achieve. Also included are six springs, with two at each level of tension. The springs control the rate at which the distributor reaches the advance.
What separates a Ready to Run from a Pro Billet is the top-of-the-line internal ignition module. Built using the latest circuit board technology, this module eliminates the need for external ignition control, such as a CDI box. It also comes with a digital tachometer output. With a Pro Series Ready to Run distributor, just hook up your ignition coil, and you're good to go.
- 3 Bushings and 4 Springs for Mechanical Advance
- Color-Matched Spark Plug Wire Retainer with Screws
- Vacuum Advance Block-off Plate (Black)
- Power Extension Cable
- Tachometer Output Extension Cable
(1) PerTronix 40011 Flame-Thrower Coil, Black
The hotter the spark, the easier your engine will start, and this 40,000-volt coil is just the ticket to a quick start! Its higher voltage allows larger spark plug gaps for added power, smoother response and better fuel economy. These coils are internally resisted so they are compatible with many inductive ignition systems.
- 40,000 volts
- Black finish for that "stock look"
- For use with 12-volt inductive ignition systems
- 1.5 Ohm primary resistance.
- Legal in all 50 states and Canada
(1) MSD 5564 Street-Fire Spark Plug Wire Set, S/B Chevy Stock, Under Manifold
Street Fire spark plug wires have the quality you've come to expect from MSD Ignition at a price that's comparable to other brands. They feature spiral-wound, low-resistance conductors and high EMI suppression capabilities, all wrapped in simple, durable black sleeves and boots. Fully assembled wires designed for S/B Chevys with points style stock socket cap. Routed under the headers.
- Helically wound conductor suppresses electro and radio noise
- Kevlar core combination for great strength and durability
- Heavy-duty terminals for secure connection
- 8mm silicone and synthetic jacket resists heat and abrasion
- 500 Ohms per foot resistance for improved spark delivery and power
- Silicone boots protect against high exhaust temps
(1) PerTronix 10001 Bracket Coil, Zinc Clear
Universal Coil Bracket available in Chrome or Zinc plated. FIts your Flame-Thrower I, II or II canister style coil.
- Universal Coil Bracket available in Chrome or Zinc plated.
- High-quality construction.
- Fits all 2.15" diameter Coils.
- Limited 90 Day Warranty.
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
What's In The Kit
Speedway Motors Ready to Run Pro Billet Distributor, Chevy V8Part # 2897701Qty x 1
PerTronix 40011 Flame-Thrower Coil, BlackPart # 44745011Qty x 1
MSD 5564 Street-Fire Spark Plug Wires, S/B Chevy Stock, Under ManifoldPart # 5475564Qty x 1
PerTronix 10001 Bracket Coil, Zinc ClearPart # 44710001Qty x 1
