Product Summary

Universal Fit

    Key Specs

    MFG. Part #610-KT-SPRTMN
    BrandRacepak

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Details

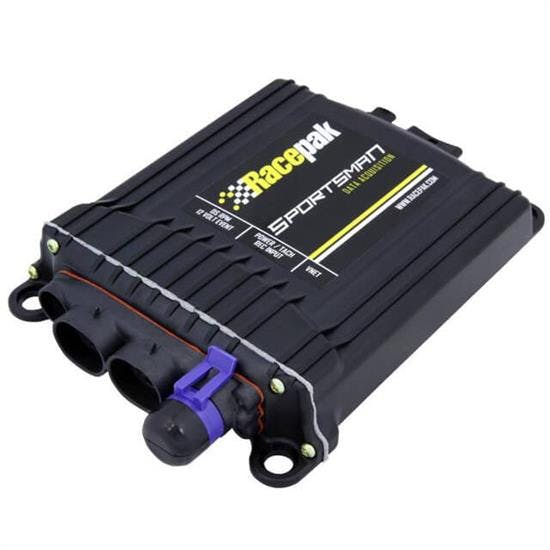

    SPORTSMAN DATA LOGGER

    The Sportsman Data Logger records Engine and Driveshaft RPM, Battery Voltage, 2 G-meters and up to six V-Net channels.

    Containing the same hardware and software utilized by our professional series data recorders, the Sportsman Drag Race Data Logger package offers an economical solution for the sportsman drag racer. Utilizing Racepak's exclusive V-Net sensor input compatibility with our full V-Net product line, while the 21 total sensor inputs (internal and external) provide the ideal balance of cost and features, allowing the sportsman racer to monitor information such as EGT, oil pressure, water temperature, transmission pressure, 12v events, air/fuel ratio, and more. The use of an SD memory card ensures hours of recording time and the ability to store multiple run files, before downloading. Installation is simplified by the use of a factory terminated wiring harness and pre-programmed software.

    Channel Upgrades:

    Upgrades are available in sets of 2 channels or 4 channels and can be mixed and match up to 12 total new channels increasing the total V-Net inputs from 6 to 18!

    2 Channel Upgrade - 610-UG-SPRT2

    4 Channel Upgrade - 610-UG-SPRT4

    Features:

  • Channels: 21 Total - 8 EGT - 6 V-Net (expandable up to 12 additional channels)
  • Sample Rate: up to 100 frames per second, to capture every channel for in-depth analysis.
  • Memory: included SD Card, for quick and easy file transfer to a computer.
  • Internal Sensors: Engine RPM, Driveshaft RPM, Battery Voltage, Start Record Button, 2 Axis G Meter, 12 Volt Event
  • Weight: .65 lbs
  • In The Box

    • Sportsman data logger
    • Harness
    • Driveshaft speed sensor and bracket
    • USB programming cable
    • Racepak Datalink II software

    Charts

    Specifications

    KEY SPECS
    MFG. Part #610-KT-SPRTMN
    BrandRacepak
    GENERAL
    GTIN Code815046024909
    Sold in QuantityKit
