#72170627

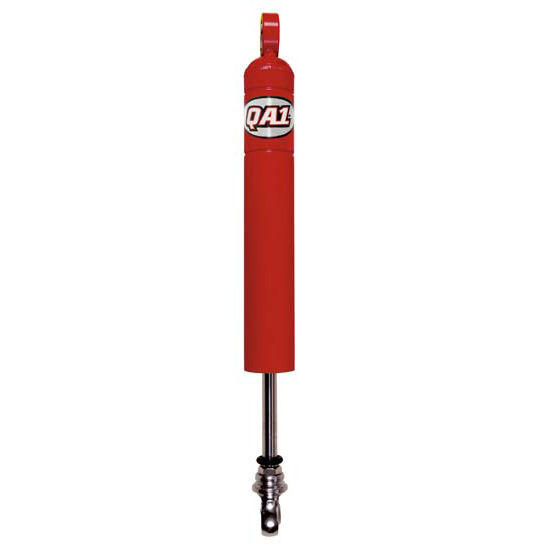

QA1 7062-7 70 Series Small Body Shock, 11.63/17.75 Comp/Ext, 2-7 Valving
$124.95
each
Discontinued
This item is currently not available
Shop all QA1 70 Series Shocks
Product Summary
Dirt Late Model, Modified, Pavement Late Model
See more details
Key Specs
| Shock Type | Twin Tube |
| Shock Adjustability | Non-Adjustable |
| Shock Body Material | Steel |
| Shock Body Type | Smooth |
| Shock Body Size | Small Body |
See more specs
Need To Know
Free Shipping on Orders Over $149
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyQA1 7062-7 Details
QA1 7062-7 Details
QA1's 70 Series shock is just like the 51 Series shock absorber, but smaller. The increased O.D. allows the 70 Series to fit where large bodies cannot. Designed for lightweight classes and for increased control arm clearance. Works best on smooth to average dirt and asphalt tracks.
- Small body
- Similar in function as the 51 Series
- Racer revalveable and rebuildable
- Non-fading
- Deflective disc valving
- Linear valving
- Custom valving available
- Twin tube design allows outer tube to be dented without binding the shock
- Can be run in any orientation with no change in rate
- Replaceable 1/2" I.D. Bearings
- 100% Dyno tested and serialized
- Made in the USA
QA1 7062-7 Specifications
QA1 7062-7 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 7062-7 |
| Brand | QA1 |
| Shock Type | Twin Tube |
| Shock Adjustability | Non-Adjustable |
| Shock Body Material | Steel |
| Shock Body Type | Smooth |
| Shock Body Size | Small Body |
| Shock Stroke Range | 6.00" to 6.99" |
| Compression Valving | 2 |
| Rebound Valving | 7 |
| Lower Shock Mount | Spherical Rod End |
| Extended Length Range | 17.00" to 17.99" |
| Extended Length | 17.77" |
| Compressed Length Range | 11.00" to 11.99" |
| Compressed Length | 11.39" |
| Finish | Powder Coated |
| Gas Charged | No |
| GENERAL | |
| Shock Stroke | 6.00 |
| Schrader Valve | No |
| Sold in Quantity | Each |
| Color | Red |
