#582ASB624B

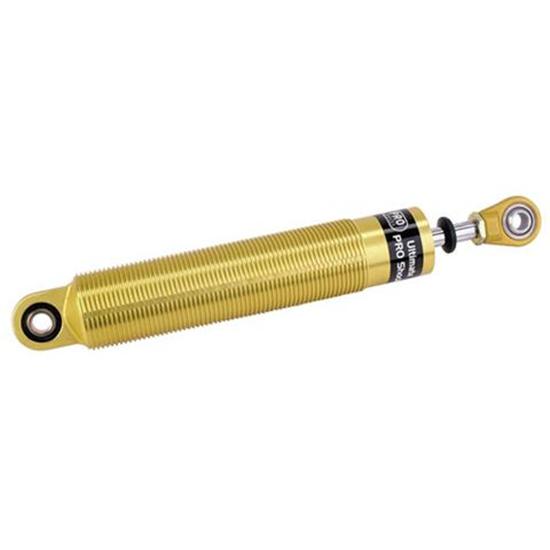

Pro Shocks® ASB624B Small Body Threaded Alum 6" Shock 2/4
- Body is made from lightweight aluminum with an anodized finish
- Both the upper and lower shock mounts have a 1/2" spherical rod end
- Compresed length measures 11-3/8" and has a 17-3/8" extended length
$278.99
/each
Made to Order
This is a custom fabricated part. We estimate this item will ship on or before July 23rd.
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Micro Sprint, Midget, Mini Sprint, Sprint Car, Anodized
- Body is made from lightweight aluminum with an anodized finish
- Both the upper and lower shock mounts have a 1/2" spherical rod end
- Compresed length measures 11-3/8" and has a 17-3/8" extended length
- All pro Shocks® Shock Ulitmate Series shocks are dynoed, serial numbered and come with a dyno sheet
- They feature a small threaded body shock design
Key Specs
| Shock Type | Twin Tube |
| Shock Body Material | Aluminum |
| Shock Body Type | Threaded |
| Shock Body Size | Small Body |
| Shock Stroke Range | 6.00" to 6.99" |
Need To Know
Made to Order
This custom item will ship when completed
Need help?
855.313.9176Quick and Easy Returns
Return PolicyPro Shocks ASB624B Details
Pro Shocks ASB624B Details
Pro Shocks® Shock Ulitmate Series shocks are dynoed serial numbered and come with a dyno sheet. ASB Series shocks feature a small threaded body shock.
Comp. Length: 11-3/8"
Ext. Length: 17-3/8"
Comp. Length: 11-3/8"
Ext. Length: 17-3/8"
Charts
Guides & Documents
Pro Shocks ASB624B Specifications
Pro Shocks ASB624B Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | ASB624B |
| Brand | Pro Shocks |
| Shock Type | Twin Tube |
| Shock Body Material | Aluminum |
| Shock Body Type | Threaded |
| Shock Body Size | Small Body |
| Shock Stroke Range | 6.00" to 6.99" |
| Compression Valving | 2 |
| Rebound Valving | 4 |
| Upper Shock Mount | 1/2" Spherical Rod End |
| Lower Shock Mount | 1/2" Spherical Rod End |
| Extended Length Range | 17.00" to 17.99" |
| Extended Length | 17.375" |
| Compressed Length Range | 11.00" to 11.99" |
| Compressed Length | 11.375" |
| Finish | Anodized |
| GENERAL | |
| Shock Stroke | 6.00 |
| Schrader Valve | No |
| Coil-Over Compatible | Yes |
| External Canister | No |
| Rebuildable | Yes |
| Sold in Quantity | Each |
