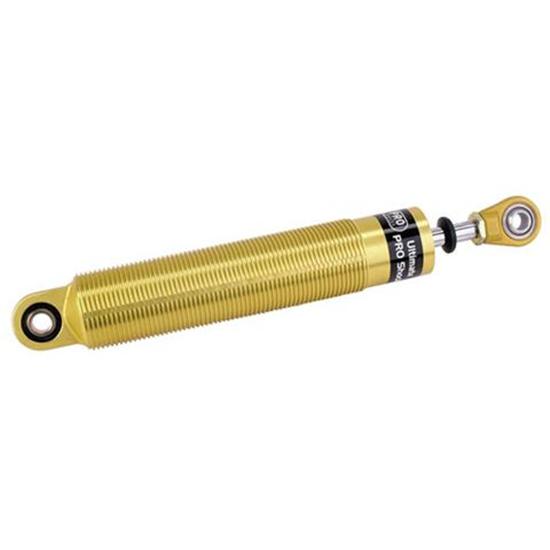

PRO Shocks® ASB620B Small Body Threaded Alum 6" Shock, 2/2

#582ASB620B

PRO Shocks® ASB620B Small Body Threaded Alum 6" Shock, 2/2

All Pro Shocks® Shock Ultimate Series shocks are dynoed serial numbered and come with a dyno sheet
They feature a small threaded body shock with an anodized finish for added protection
Compressed length measures 11-3/8" and has an extended length of 17-3/8"

$278.99

/each

Made to Order

This is a custom fabricated part. We estimate this item will ship on or before November 16th.

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Micro Sprint, Midget, Mini Sprint, Sprint Car, Anodized

All Pro Shocks® Shock Ultimate Series shocks are dynoed serial numbered and come with a dyno sheet
They feature a small threaded body shock with an anodized finish for added protection
Compressed length measures 11-3/8" and has an extended length of 17-3/8"
Has a twin tube design with a small body
Both the upper and lower shock mounts have a 1/2" spherical rod end

See more details

Key Specs

Shock Type	Twin Tube
Shock Adjustability	Non-Adjustable
Shock Body Material	Aluminum
Body Diameter	2"
Shock Body Type	Threaded

See more specs

Need To Know

Made to Order

This custom item will ship when completed

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Pro Shocks ASB620B Details

Pro Shocks® Shock Ulitmate Series shocks are dynoed serial numbered and come with a dyno sheet. ASB Series shocks feature a small threaded body shock.

Comp. Length: 11-3/8"
Ext. Length: 17-3/8"

Charts

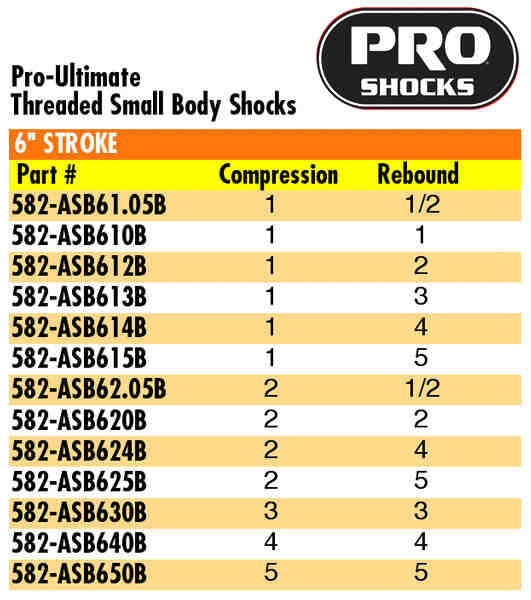

Pro Shocks® Threaded Small Alum. Shock Chart Application (GIF)

Specs

Shock Stroke: 6 Inch
Compression Valving: 2
Rebound Valving: 2
Extended Length: 17-3/8 Inch
Compressed Length: 11-3/8 Inch

Guides & Documents

Shocks Technical Information (582ASB620B)

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

Pro Shocks ASB620B Specifications

KEY SPECS
MFG. Part #	ASB620B
Brand	Pro Shocks
Shock Type	Twin Tube
Shock Adjustability	Non-Adjustable
Shock Body Material	Aluminum
Body Diameter	2"
Shock Body Type	Threaded
Shock Body Size	Small Body
Shock Stroke Range	6.00" to 6.99"
Position	Front or Rear
Compression Valving	2
Rebound Valving	2
Upper Shock Mount	1/2" Spherical Rod End
Lower Shock Mount	1/2" Spherical Rod End
Extended Length Range	17.00" to 17.99"
Extended Length	17.375"
Compressed Length Range	11.00" to 11.99"
Finish	Anodized
Compressed Length	11.375"
Gas Charged	No

GENERAL
Rebuildable	Yes
Schrader Valve	No
Coil-Over Compatible	Yes
External Canister	No
Sold in Quantity	Each
