#582AC780B

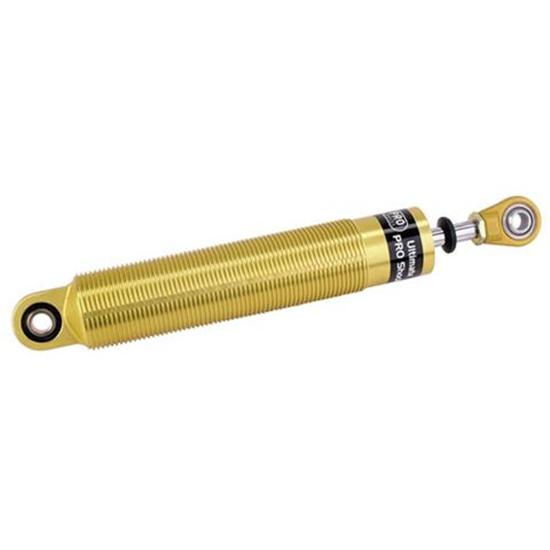

Pro Shocks® AC780B Large Aluminum Threaded, 7 Inch Shock, 8/8
$235.99
each
Factory Shipped
This part will be shipped by the manufacturer. We estimate this item will ship on or before July 24th.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Dirt Late Model, Twin Tube Shock Type, Anodized
See more details
Key Specs
Shock Type | Twin Tube |
Shock Body Material | Aluminum |
Shock Body Type | Threaded |
Shock Body Size | Large Body |
Shock Stroke Range | 7.00" to 7.99" |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyPro Shocks AC780B Details
Pro Shocks AC780B Details
Threaded aluminum body shocks are just the ticket for late models. Sold with bearing ends.
- 7" stroke
- 2.00 diameter shocks
- 12-3/4" comp. length
- 19-1/2" ext. length
Item Details
damp 8, rebound 8
Pro Shocks AC780B Specifications
Pro Shocks AC780B Specifications
KEY SPECS | |
---|---|
MFG. Part # | AC780B |
Brand | Pro Shocks |
Shock Type | Twin Tube |
Shock Body Material | Aluminum |
Shock Body Type | Threaded |
Shock Body Size | Large Body |
Shock Stroke Range | 7.00" to 7.99" |
Compression Valving | 8 |
Rebound Valving | 8 |
Upper Shock Mount | 1/2" Spherical Rod End |
Lower Shock Mount | 1/2" Spherical Rod End |
Extended Length Range | 19.00" to 19.99" |
Extended Length | 19.5" |
Compressed Length Range | 12.00" to 12.99" |
Compressed Length | 12.75" |
Finish | Anodized |
Coil-Over Compatible | Yes |
External Canister | No |
GENERAL | |
Speedway Motors Catalog Part # | 582-AC780B |
Shock Stroke | 7.00 |
Schrader Valve | No |
Body Diameter | 2" |
Rebuildable | Yes |
Sold in Quantity | Each |
