#582AC757B
Pro Shocks® AC757B Large Aluminum Threaded, 7 In Shock, C5/R7
$235.99
each
Made to Order
This is a custom fabricated part. We estimate this item will ship on or before June 6th.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Dirt Late Model, Twin Tube Shock Type, Anodized
See more details
Key Specs
| Shock Type | Twin Tube |
| Shock Body Material | Aluminum |
| Shock Body Type | Threaded |
| Shock Body Size | Large Body |
| Shock Stroke Range | 7.00" to 7.99" |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsMade to Order
This custom item will ship when completed
Need help?
855.313.9176Quick and Easy Returns
Return PolicyPro Shocks AC757B Details
Pro Shocks AC757B Details

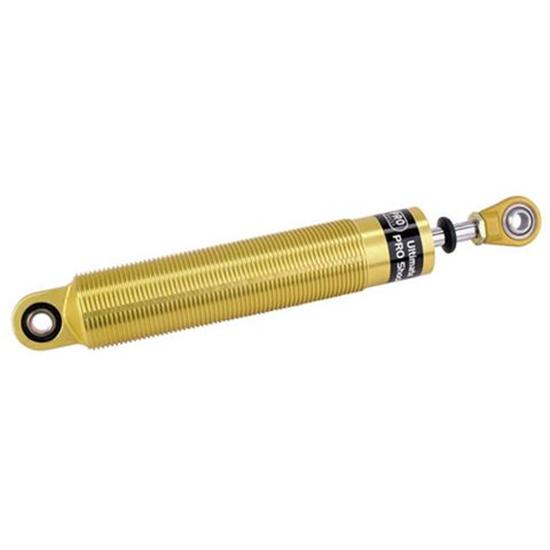

Threaded aluminum body shocks are just the ticket for late models. Sold with bearing ends.
- 7" stroke
- 2.00 diameter shocks
- 12-3/4" comp. length
- 19-1/2" ext. length
Item Details
damp 5, rebound 7
Pro Shocks AC757B Specifications
Pro Shocks AC757B Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | AC757B |
| Brand | Pro Shocks |
| Shock Type | Twin Tube |
| Shock Body Material | Aluminum |
| Shock Body Type | Threaded |
| Shock Body Size | Large Body |
| Shock Stroke Range | 7.00" to 7.99" |
| Compression Valving | 5 |
| Rebound Valving | 7 |
| Upper Shock Mount | 1/2" Spherical Rod End |
| Lower Shock Mount | 1/2" Spherical Rod End |
| Extended Length Range | 19.00" to 19.99" |
| Extended Length | 19.5" |
| Compressed Length Range | 12.00" to 12.99" |
| Compressed Length | 12.75" |
| Finish | Anodized |
| Coil-Over Compatible | Yes |
| External Canister | No |
| GENERAL | |
| Speedway Motors Catalog Part # | 582-AC757B |
| Shock Stroke | 7.00 |
| Schrader Valve | No |
| Body Diameter | 2" |
| Rebuildable | Yes |
| Sold in Quantity | Each |
