#582A960B

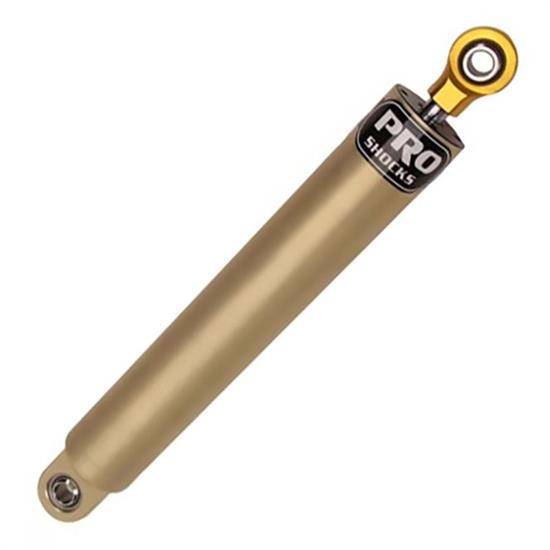

Pro Shocks® A960B Pro Ultimate Large Shock, 9 In Shaft, C6/R6
- Each aluminum Ultimate Pro Shocks® shock comes with a serial numbered dyno graph
- Both the upper and lower mounts have a 1/2" spherical rod end
- Compressed length measures 14-1/2" and has an extended length of 32-1/2"
See More
$235.99
each
Made to Order
This is a custom fabricated part. We estimate this item will ship on or before June 9th.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Sprint Car, Twin Tube Shock Type, 6 Compression Valving
- Each aluminum Ultimate Pro Shocks® shock comes with a serial numbered dyno graph
- Both the upper and lower mounts have a 1/2" spherical rod end
- Compressed length measures 14-1/2" and has an extended length of 32-1/2"
- Features a twin tube design with an aluminum shock body
- The anodized finish ensures a long lasting, rust-free shock
See more details
Key Specs
| Shock Type | Twin Tube |
| Shock Body Material | Aluminum |
| Shock Body Type | Smooth |
| Shock Body Size | Large Body |
| Shock Stroke Range | 9.00" to 9.99" |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsMade to Order
This custom item will ship when completed
Need help?
855.313.9176Quick and Easy Returns
Return PolicyPro Shocks A960B Details
Pro Shocks A960B Details
Aluminum body, 9" shaft with bearings.
Pro Shocks® now offers their entire line in Ultimate Shocks. All Ultimate Pro Shocks® are serial numbered and dyno tested, each aluminum Ultimate Pro Shocks® shock comes with a serial numbered dyno graph. The proof of quality and superiority is packaged with each Ultimate Pro Shocks® shock.
Comp. Length: 14-1/2"
Ext. Length: 23-1/2"
Charts
Guides & Documents
Pro Shocks A960B Specifications
Pro Shocks A960B Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | A960B |
| Brand | Pro Shocks |
| Shock Type | Twin Tube |
| Shock Body Material | Aluminum |
| Shock Body Type | Smooth |
| Shock Body Size | Large Body |
| Shock Stroke Range | 9.00" to 9.99" |
| Compression Valving | 6 |
| Rebound Valving | 6 |
| Upper Shock Mount | 1/2" Spherical Rod End |
| Lower Shock Mount | 1/2" Spherical Rod End |
| Extended Length Range | 23.00" to 23.99" |
| Extended Length | 23.5" |
| Compressed Length Range | 14.00" to 14.99" |
| Compressed Length | 14.5" |
| Finish | Anodized |
| Coil-Over Compatible | No |
| External Canister | No |
| GENERAL | |
| Speedway Motors Catalog Part # | 582-A960B |
| Shock Stroke | 9.00 |
| Schrader Valve | No |
| Body Diameter | 2" |
| Rebuildable | Yes |
| Sold in Quantity | Each |
| Shock Eyelet Width | .625" |
