Pro Shocks® A948B Pro Ultimate Large Shock, 9 Inch Shaft, 4/8

All Ultimate Pro Shocks® are serial numbered and dyno tested before being shipped
They features a smooth aluminum body with an anodized finish for added protection
Both the upper and lower shock mounts have a 1/2" spherical rod end

$235.00

/each

Made to Order

$278.24

Save $43.24

This is a custom fabricated part. We estimate this item will ship on or before October 14th.

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Sprint Car, Twin Tube Shock Type, No Value" Stroke

All Ultimate Pro Shocks® are serial numbered and dyno tested before being shipped
They features a smooth aluminum body with an anodized finish for added protection
Both the upper and lower shock mounts have a 1/2" spherical rod end
Compressed length measures 14-1/2" and has a 23-1/2" extended length
Shocks have a total of 4 compression valved and 8 rebound valves

See more details

Key Specs

Shock Type	Twin Tube
Shock Adjustability	Non-Adjustable
Shock Body Material	Aluminum
Body Diameter	2"
Shock Body Type	Smooth

See more specs

Need To Know

Made to Order

This custom item will ship when completed

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Pro Shocks A948B Details

Aluminum body, 9" shaft with bearings.
Pro Shocks® now offers their entire line in Ultimate Shocks. All Ultimate Pro Shocks® are serial numbered and dyno tested, each aluminum Ultimate Pro Shocks® shock comes with a serial numbered dyno graph. The proof of quality and superiority is packaged with each Ultimate Pro Shocks® shock.

Comp. Length: 14-1/2"
Ext. Length: 23-1/2"

Charts

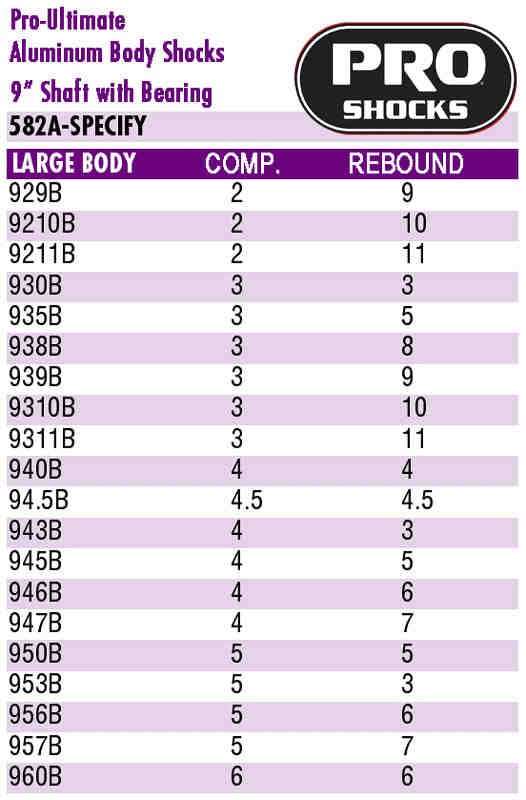

Pro Shocks® Aluminum Shock Chart Application (GIF)

Guides & Documents

Shocks Technical Information (582A948B)

CA Prop 65

Pro Shocks A948B Specifications

KEY SPECS
MFG. Part #	A948B
Brand	Pro Shocks
Shock Type	Twin Tube
Shock Adjustability	Non-Adjustable
Shock Body Material	Aluminum
Body Diameter	2"
Shock Body Type	Smooth
Shock Body Size	Large Body
Shock Stroke Range	9.00" to 9.99"
Position	Front or Rear
Compression Valving	4
Rebound Valving	8
Mount Position	Stock Mount
Upper Shock Mount	1/2" Spherical Rod End
Lower Shock Mount	1/2" Spherical Rod End
Extended Length Range	23.00" to 23.99"
Extended Length	23.5"
Compressed Length Range	14.00" to 14.99"
Finish	Anodized
Compressed Length	14.5"
Gas Charged	No

GENERAL
Rebuildable	Yes
Schrader Valve	No
External Canister	No
Sold in Quantity	Each
