Product Summary

Sprint Car, Twin Tube Shock Type, 3 Compression Valving

    Key Specs

    MFG. Part #A933-8B
    Shock TypeTwin Tube
    Shock Body MaterialAluminum
    Shock Body TypeSmooth
    Shock Body SizeLarge Body

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Details

    Large body rebound adjustable 9" shocks. The shock is totally adjustable on rebound or extension only. Not effecting the compression control at all.

    Comp. Length: 15"
    Ext. Length: 24"

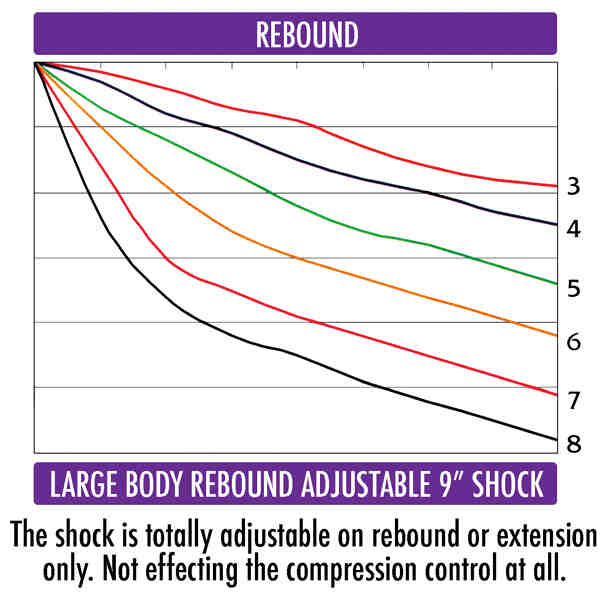

    Charts

    Specifications

    KEY SPECS
    MFG. Part #A933-8B
    BrandPro Shocks
    Shock TypeTwin Tube
    Shock Body MaterialAluminum
    Shock Body TypeSmooth
    Shock Body SizeLarge Body
    GENERAL
    Shock Stroke Range9.00" to 9.99"
    Compression Valving3
    Rebound Valving3 - 8
    Shock Stroke9.00
    Upper Shock Mount1/2" Spherical Rod End
    Lower Shock Mount1/2" Spherical Rod End
    Extended Length Range23.00" to 23.99"
    Extended Length23.5"
    Compressed Length Range15.00" to 15.99"
    Compressed Length15"
    Schrader ValveNo
    FinishAnodized
    Coil-Over CompatibleNo
    External CanisterNo
    Body Diameter2"
    RebuildableYes
    Sold in QuantityEach
    Shock Eyelet Width.625"
