#582A753B
Pro Shocks® A753B Alum. 7 In Shock - Lg. Body, Comp 5/Reb 3
- These Pro Shocks® Ultimate Series shocks have dyno serial numbers and come with a dyno sheet
- The "A" Series Shocks feature a large smooth body with a twin tube design
- Body has an aluminum construction and features an anodized finish for added corrosion resistance
$278.24
/each
In Stock
Order soon, only 3 left in stock!
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Midget, Sprint Car, Twin Tube Shock Type, Anodized
- These Pro Shocks® Ultimate Series shocks have dyno serial numbers and come with a dyno sheet
- The "A" Series Shocks feature a large smooth body with a twin tube design
- Body has an aluminum construction and features an anodized finish for added corrosion resistance
- Both the upper and lower shock mounts have a 1/2" spherical rod end
- Extended length measures 19.5" and compressed length measures 12.5"
Key Specs
| Shock Type | Twin Tube |
| Shock Body Material | Aluminum |
| Body Diameter | 2" |
| Shock Body Type | Smooth |
| Shock Body Size | Large Body |
Need To Know
Made to Order
This custom item will ship when completed
Need help?
855.313.9176Quick and Easy Returns
Return PolicyPro Shocks A753B Details
Pro Shocks A753B Details
Pro Shocks® Ultimate Series shocks have dyno serial numbers and come with a dyno sheet. "A" Series Shocks feature a large smooth body shock.
Comp. Length: 12-1/2"
Ext. Length: 19-1/2"
Charts

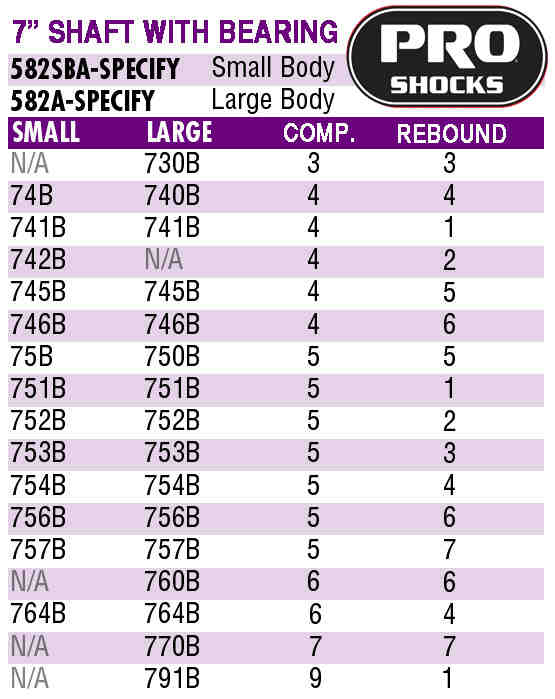

Application Chart (GIF)
Guides & Documents
Pro Shocks A753B Specifications
Pro Shocks A753B Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | A753B |
| Brand | Pro Shocks |
| Shock Type | Twin Tube |
| Shock Body Material | Aluminum |
| Body Diameter | 2" |
| Shock Body Type | Smooth |
| Shock Body Size | Large Body |
| Shock Stroke Range | 7.00" to 7.99" |
| Compression Valving | 5 |
| Rebound Valving | 3 |
| Upper Shock Mount | 1/2" Spherical Rod End |
| Lower Shock Mount | 1/2" Spherical Rod End |
| Extended Length Range | 19.00" to 19.99" |
| Extended Length | 19.5" |
| Compressed Length Range | 12.00" to 12.99" |
| Compressed Length | 12.5" |
| Finish | Anodized |
| GENERAL | |
| Shock Stroke | 7.00 |
| Schrader Valve | No |
| Coil-Over Compatible | No |
| External Canister | No |
| Rebuildable | Yes |
| Sold in Quantity | Each |
| Shock Eyelet Width | .625" |
