Product Summary

Midget, Sprint Car, Twin Tube Shock Type, Anodized

  • All Pro Shocks® Ultimate Series shocks have dyno serial numbers and come with a dyno sheet
  • Features a twin-tube design with a that is smooth
  • Body has an aluminum construction and is 2" in diameter
  • Both the upper and lower shock mounts have a 1/2" spherical rod end
  • The anodized finish ensures a long lasting, rust-free shock

Key Specs

MFG. Part #A746B
Shock TypeTwin Tube
Shock Body MaterialAluminum
Shock Body TypeSmooth
Shock Body SizeLarge Body

Need To Know

This Product Will Ship Free

Shipping Policies & FAQs

Made to Order

This custom item will ship when completed

Quick and Easy Returns

Return Policy

Details

Pro Shocks® Ultimate Series shocks have dyno serial numbers and come with a dyno sheet. "A" Series Shocks feature a large smooth body shock.

Comp. Length: 12-1/2"
Ext. Length: 19-1/2"

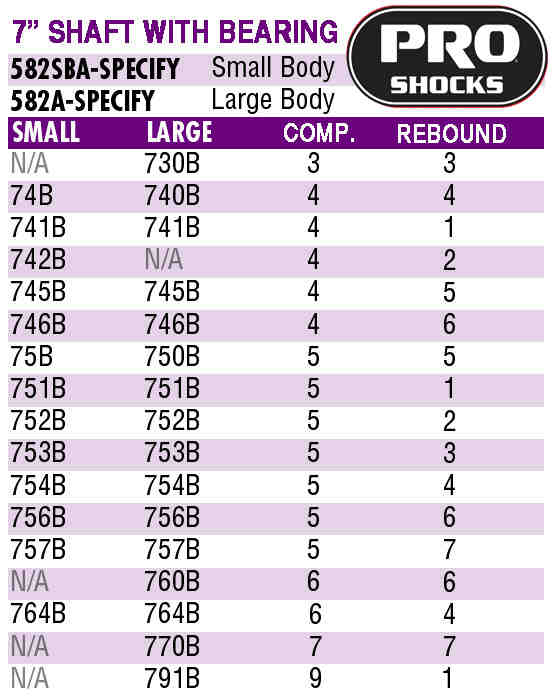

Charts

Specifications

KEY SPECS
MFG. Part #A746B
BrandPro Shocks
Shock TypeTwin Tube
Shock Body MaterialAluminum
Shock Body TypeSmooth
Shock Body SizeLarge Body
GENERAL
Shock Stroke Range7.00" to 7.99"
Compression Valving4
Rebound Valving6
Shock Stroke7.00
Upper Shock Mount1/2" Spherical Rod End
Lower Shock Mount1/2" Spherical Rod End
Extended Length Range19.00" to 19.99"
Extended Length19.5"
Compressed Length Range12.00" to 12.99"
Compressed Length12.5"
Schrader ValveNo
FinishAnodized
Coil-Over CompatibleNo
External CanisterNo
Body Diameter2"
RebuildableYes
Sold in QuantityEach
Shock Eyelet Width.625"
