Pro Shocks® A653B Smooth Large Body Alum, 6 Inch Shaft, C5/R3

All Ultimate Series shocks have dyno serial numbers and come with a dyno sheet
Feature a large smooth body shock with a 2" diameter
Compressed length measures 11-1/2" and has an extended length of 17-1/2"

$235.00

/each

In Stock

$278.24

Save $43.24

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Midget, Sprint Car, Twin Tube Shock Type, Anodized

All Ultimate Series shocks have dyno serial numbers and come with a dyno sheet
Feature a large smooth body shock with a 2" diameter
Compressed length measures 11-1/2" and has an extended length of 17-1/2"
Both the upper and lower shock mounts have a 1/2" spherical rod end
The anodized finish protects against corrosion and enhances the overall look

See more details

Key Specs

Shock Type	Twin Tube
Shock Adjustability	Non-Adjustable
Shock Body Material	Aluminum
Body Diameter	2"
Shock Body Type	Smooth

See more specs

Need To Know

Made to Order

This custom item will ship when completed

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Pro Shocks A653B Details

Pro Shocks® Ultimate Series shocks have dyno serial numbers and come with a dyno sheet. "A" Series Shocks feature a large smooth body shock.

Comp. Length: 11-1/2"
Ext. Length: 17-1/2"

Charts

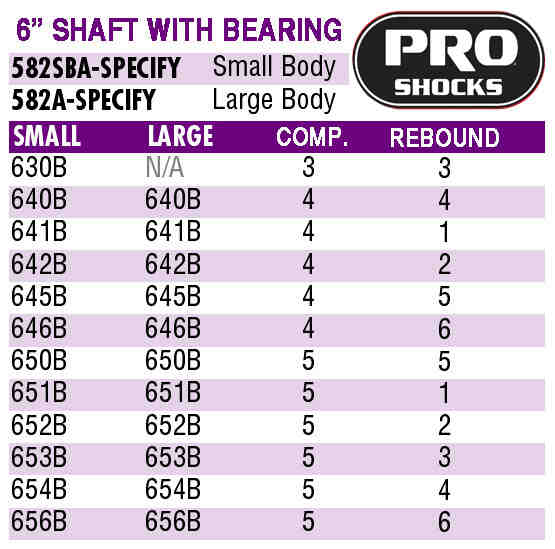

Pro Shocks® Smooth Large Body Alum. Shock Chart Application (GIF)

Guides & Documents

Shocks Technical Information (582A653B)

CA Prop 65

Pro Shocks A653B Specifications

KEY SPECS
MFG. Part #	A653B
Brand	Pro Shocks
Shock Type	Twin Tube
Shock Adjustability	Non-Adjustable
Shock Body Material	Aluminum
Body Diameter	2"
Shock Body Type	Smooth
Shock Body Size	Large Body
Shock Stroke Range	6.00" to 6.99"
Position	Front or Rear
Compression Valving	5
Rebound Valving	3
Mount Position	Stock Mount
Upper Shock Mount	1/2" Spherical Rod End
Lower Shock Mount	1/2" Spherical Rod End
Extended Length Range	17.00" to 17.99"
Extended Length	17.5"
Compressed Length Range	11.00" to 11.99"
Finish	Anodized
Compressed Length	11.5"
Gas Charged	No

GENERAL
Rebuildable	Yes
Schrader Valve	No
External Canister	No
Sold in Quantity	Each
