#582A6538R

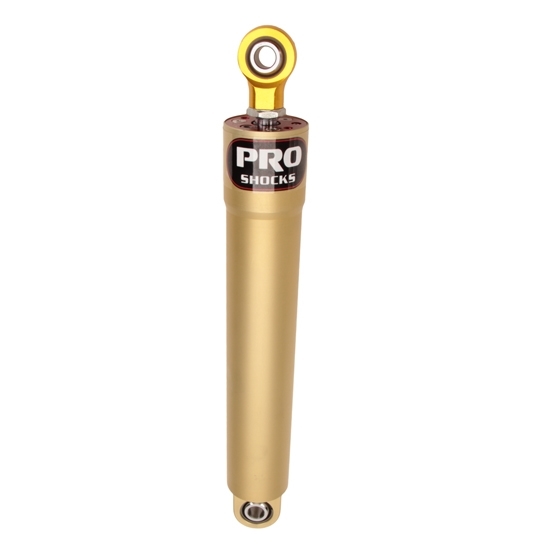

Pro Shocks A653-8R A-Series Big Body Smooth Shock, 5/5-14 6 Inch
$359.99
each
In Stock
$399.99
Save $40.00
Order soon, only 3 left in stock!
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Oval Track Cars, Twin Tube Shock Type, Anodized
See more details
Key Specs
| Shock Type | Twin Tube |
| Shock Body Material | Aluminum |
| Body Diameter | 2" |
| Shock Body Type | Smooth |
| Shock Body Size | Large Body |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyPro Shocks A653-8R Details
Pro Shocks A653-8R Details
This aluminum big body shock features re-buildable housing that improves the life of the adjuster with yearly maintnance. They come with the new valve bodies with updated rebound ranges and provide a proven, leak-free sealing system. The click adjuster allows the rebound to be the reset the same everytime.
- Positive detent locating mechanism for fine tuned adjustability
- 2-piece valve body improves serviceability of seals and reliability of internal components
- +/- indicator
- Big Body Smooth A-Series 5/5-14
- 6 Inch Pro Shocks® Shock
- Sold Individually
Positive detent locating mechanism for fine tuned adjustability - See more at: http://www.afcodynapro.com/proshocks/1944291956#sthash.Dv0Xj2A9.dpuf
Charts
Guides & Documents
Pro Shocks A653-8R Specifications
Pro Shocks A653-8R Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | A653-8R |
| Brand | Pro Shocks |
| Shock Type | Twin Tube |
| Shock Body Material | Aluminum |
| Body Diameter | 2" |
| Shock Body Type | Smooth |
| Shock Body Size | Large Body |
| Shock Stroke Range | 9.00" to 9.99" |
| Compression Valving | 5 |
| Rebound Valving | 5 - 14 |
| Extended Length Range | 24.00" to 24.99" |
| Extended Length | 24" |
| Compressed Length Range | 15.00" to 15.99" |
| Compressed Length | 15" |
| Finish | Anodized |
| GENERAL | |
| Shock Stroke | 9.00 |
| Upper Shock Mount | 1/2" Spherical Rod End |
| Lower Shock Mount | 1/2" Spherical Rod End |
| Schrader Valve | No |
| Sold in Quantity | Each |
