Pro-Lite Vented Rear Brake Rotor and Hat Kit
Pro-Lite Vented Rear Brake Rotor and Hat Kit

Pro-Lite Vented Rear Brake Rotor and Hat Kit

Universal Fit, Rear Position, Round Rotor Shape, 11.75 Inch Rotor Diameter, Vented Rotor Type

0 Reviews | 0 Answered Questions
In Stock
Can Ship FREE
Select your vehicle to verify fitment.
Select Vehicle
Pro-Lite Vented Rear Brake Rotor and Hat Kit
Pro-Lite Vented Rear Brake Rotor and Hat Kit
Pro-Lite Vented Rear Brake Rotor and Hat Kit
Pro-Lite Vented Rear Brake Rotor and Hat Kit
Pro-Lite Vented Rear Brake Rotor and Hat Kit
Pro-Lite Vented Rear Brake Rotor and Hat Kit
Pro-Lite Vented Rear Brake Rotor and Hat Kit
Pro-Lite Vented Rear Brake Rotor and Hat Kit
X
Pro-Lite Vented Rear Brake Rotor and Hat Kit
Pro-Lite Vented Rear Brake Rotor and Hat Kit
Pro-Lite Vented Rear Brake Rotor and Hat Kit
Pro-Lite Vented Rear Brake Rotor and Hat Kit
Pro-Lite Vented Rear Brake Rotor and Hat Kit
Pro-Lite Vented Rear Brake Rotor and Hat Kit
Zoomed In Image
Part # 91605080
$59.99
kit
Call to Order
Add to Buildlist
Compare
Details
What's In The Kit
Reviews
Q&A
Videos & Articles
  • Rotor is cast from premium grade, long grain carbon iron which exhibits long wear, high thermal stability, and excellent resistance to distortion in high heat
  • The use of a modern foundry and machining techniques hold close tolerances on face and vane thickness
  • Having the correct face thickness and a 32 vane casting provides superior heat management and long service life with low rotating and unsprung weight
  • A straight vane design also makes it possible to use the same rotor on left or right hand mounting locations
  • Rotor has an overall diameter of 11.75" and has a 5 on 5"

Build Your Kit

You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Next
Add to Cart

Details

Position:
Rear
Rotor Shape:
Round
Rotor Diameter:
11.75 Inch
Rotor Type:
Vented
Rotor Style:
Plain Face
Rotor Material Type:
Carbon Iron
Rotor Finish:
Plain
Rotor Thickness:
0.81"
Bolt Pattern:
Multi: 5 on 5" | 4.75" | 4.50"
Vane Count:
32 Straight Vane
Rotor Hat Included:
Yes
Hat Material Type:
Steel
Hat Finish:
Painted
Rotor Hat Bolt Pattern:
8 x 7.00"
Offset:
3.00"
Rotor Mount Hole Size:
0.325"
Stud Diameter:
0.5"
Thread Length:
0.73"
Thread Pitch:
5/16"-24
Hardware Included:
Yes
Sold in Quantity:
Kit

Info

Every rotor is cast from premium grade, long grain carbon iron which exhibits long wear, high thermal stability, and excellent resistance to distortion in high heat. Modern foundry and machining techniques hold close tolerances on face and vane thickness. Combining the correct face thickness with a 32 vane casting provides superior heat management and long service life with low rotating and unsprung weight. The straight vane design also makes it possible to use the same rotor on left or right hand mounting locations.

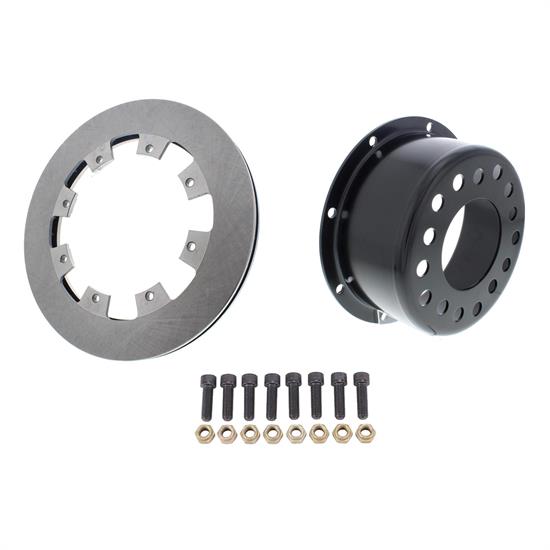

Kit Includes:

  • (1) Pro-Lite Vented Rear Brake Rotor
    • # Holes: 8
    • Bolt Circle: 7"
    • Thread: Thru
    • Position: Rear
    • Rotor Shape: Round
    • Rotor Diameter: 11.75 Inch
    • Rotor Type: Vented
    • Rotor Style: Plain Face
    • Rotor Material Type: Cast Iron
    • Rotor Finish: Natural
    • Rotor Thickness: 0.81"
    • Rotor Hat Bolt Pattern: 8 x 7.00"
  • (1) Stamped Steel Disc Brake Rotor Hat with 3 Inch Offset
    • Rotor Bolt Circle: 7" x 8 holes
    • Stud Hole Diameter: 1/2"
    • Rotor Mount Bolt Hole: .325"
    • Offset: 3.00"
    • Outside Diameter: 7.60"
    • Inside Diameter: 3.05"
    • Overall Thickness: .09"
    • Bolt Pattern: Multi: 5 on 5" | 4.75" | 4.50"
    • Finish: Painted
    • Notes: Clearance ID 5.83"
  • (1) Rotor Hat Bolt Set
    • Overall Length: 1.05"
    • Under Head Length: .73"
    • Wrench Type: Allen
    • Wrench Size: 1/4"
    • Material Type: Steel
    • Finish: Black Oxide
    • Notes: For 1/8" thick rotor hats. Set of (8) bolts and lock nuts.
    • Thread Pitch: 5/16"-24
    • Thread Length: .73"

Notes

Proper Break-In Procedure for Steel or Cast Iron Rotors

New steel/iron rotors should be bedded in before being used in racing conditions. Proper bedding will prepare the rotor surface, prolong the rotor's life, and make it more resistant to thermal checking or cracking under severe braking conditions. The following procedures should be performed when bedding in both steel and cast iron rotors. It is best to bed in a new rotor using a used set of pads, preferably ones which will not create heat rapidly. Generating heat too rapidly will thermal shock the rotors. Likewise, when bedding in a new set of brake pads it is best to perform the process on a used rotor. This new/used bedding process permits controlled bedding of each individual component.

Make sure rotor surfaces are free from oils, grease, and brake fluid. Run vehicle up to a moderate speed and make several medium deceleration stops to heat up the rotor slowly. This will help reduce the chance of thermal shock caused by uneven heating of the rotor. Pull into the pits and allow the rotor to cool to ambient air temperature. Care should be taken not to ride the brakes into the pits as this may hot spot the rotor causing premature wear to the surface or structural damage.

Disc Brake Rotor Hat Instructions (PDF)

Pro-Lite Rotor Application Chart (GIF)



Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
  • Speedway Stamped Steel Disc Brake Rotor Hat, 3 Inch Offset
    Qty x 1
  • Speedway Pro-Lite Vented Brake Rotor, 11.75 x .81 Inch
    Qty x 1
  • Rotor Hat Bolt Set, 1/8 Inch Thick
    Qty x 1
