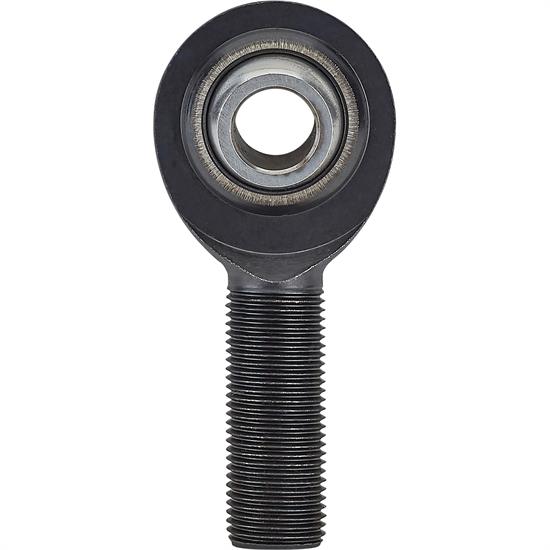

Pro-1 Chromoly Heim Joint Rod Ends, 5/8-18 LH Male, 1/2 Inch Hole
Pro-1 Chromoly Heim Joint Rod Ends, 5/8-18 LH Male, 1/2 Inch Hole
Universal Fit, LH Male Thread Type, Male Threads/Eyelet Rod End Attachment, Chromoly, Black
In Stock
Can Ship FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select Vehicle
Pro-1 Chromoly Heim Joint Rod Ends, 5/8-18 LH Male, 1/2 Inch Hole
X
Part # 1750726
$14.99
each
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
- This Pro-1 rod end is a general purpose 2-piece heavy duty rod end that will withstand extreme abuse
- The chromoly steel body and hardened steel ball without a race provides metal to metal contact for a precise no-slop joint
- Useful for a wide variety of applications including clutch, brake, steering, and suspension components for moderate to high horsepower applications
- 5/8"-18 LH male rolled threads ensure strength and precision
- 26 degrees of misalignment provides a wide range of motion without binding
Details
Thread Type:
LH Male
Rod End Attachment:
Male Threads/Eyelet
Thread Pitch:
5/8"-18
Material Type:
Chromoly
Hole Diameter:
0.500"
Rod End Style:
Metal-to-metal
Rod End Construction:
2-piece
Grease Fitting:
No
Finish:
Black Oxide
Color:
Black
MFG. Part #:
1750726
Sold in Quantity:
Each
Info
These Pro-1 rod ends are general purpose, 2-piece, heavy duty rod ends. They feature a chromoly steel body and are black oxide coated to resist corrosion. Heat treated, precision ground ball without a race (metal to metal contact). Pro-1 ends will withstand a greater static load than our "Standard" or "Precision" rod ends.
Applications: Steering & suspension components on moderate to high horsepower applications.
Assembly Tip: To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.
