#1750507

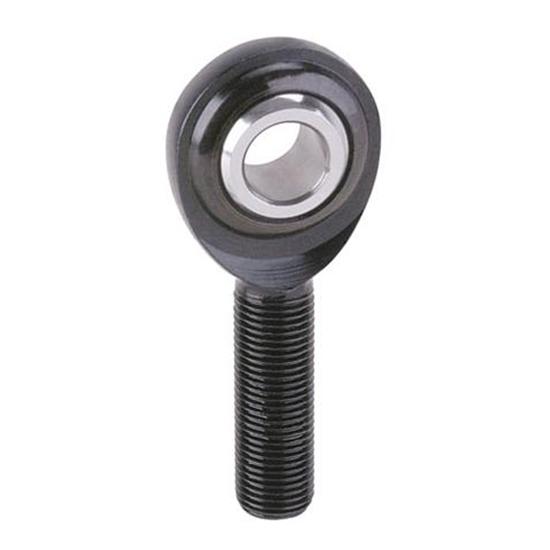

Pro-1 Chromoly Heim Joint Rod Ends, 3/4-16 RH Male
- This Pro-1 rod end is a general purpose 2-piece heavy duty rod end that will withstand extreme abuse
- The chromoly steel body and hardened steel ball without a race provides metal to metal contact for a precise no-slop joint
- Useful for a wide variety of applications including clutch, brake, steering, and suspension components for moderate to high horsepower applications
$14.99
/each
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, RH Male Thread Type, Chromoly, Black
- This Pro-1 rod end is a general purpose 2-piece heavy duty rod end that will withstand extreme abuse
- The chromoly steel body and hardened steel ball without a race provides metal to metal contact for a precise no-slop joint
- Useful for a wide variety of applications including clutch, brake, steering, and suspension components for moderate to high horsepower applications
- 3/4"-16 RH male rolled threads ensure strength and precision
- 24 degrees of misalignment provides a wide range of motion without binding
Key Specs
| Thread Type | RH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 3/4"-16 |
| Material Type | Chromoly |
| Hole Diameter | 0.75" |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 1750507 Details
Speedway Motors 1750507 Details
These Pro-1 rod ends are general purpose, 2-piece, heavy duty rod ends. They feature a chromoly steel body and are black oxide coated to resist corrosion. Heat treated, precision ground ball without a race (metal to metal contact). Pro-1 ends will withstand a greater static load than our "Standard" or "Precision" rod ends.
Applications: Steering & suspension components on moderate to high horsepower applications.
Assembly Tip: To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.
Charts
Pro-1 Rod End Chart (GIF)
Guides & Documents
Speedway Motors 1750507 Specifications
Speedway Motors 1750507 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 1750507 |
| Brand | Speedway Motors |
| Thread Type | RH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 3/4"-16 |
| Material Type | Chromoly |
| Hole Diameter | 0.75" |
| Rod End Style | Metal-to-metal |
| Rod End Construction | 2-piece |
| Grease Fitting | No |
| Finish | Black Oxide |
| Color | Black |
| Bushing Material | Steel |
| Jam Nut Included | No |
| GENERAL | |
| Sold in Quantity | Each |
