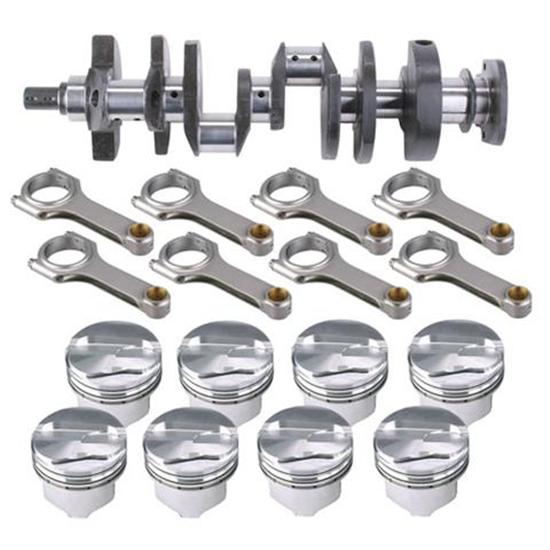

Premium SB Chevy Rotating Assembly, 383 .150 Dome, 6 In Rods
$1,708.99
/kit
In Stock
$1,734.42
Save $25.43
Quantity
Need Help? Call to Order
Add to a list
Share
Select an engine to verify Fitment
Select Engine
|
#91510265
$1,708.99
/kit
In Stock
$1,734.42
Save $25.43
Quantity
Need Help? Call to Order
Add to a list
Select an engine to verify Fitment
Select Engine
350 mains Main Journal Style, 3.750" Engine Stroke
Comes as a Kit
View Kit Components
| MFG. Part # | 91510265 |
| Brand | Speedway Motors |
| Connecting Rod Type | H-Beam |
| Piston Style | Dome |
| Piston Material | Hypereutectic Aluminum |
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway introduces premium rotating assembly engine rebuild kits, with an optional balance job. Includes new 2-pc rear main seal cast steel crank, rods, pistons rod & main bearings. Cranks are new so they use standard size bearings.
All balancing is done with our state-of-the-art Hines balancer by race mechanics with over 30 years of experience! A kit purchased with the optional balance job will ship in 24-48 hours.
NOTE: Piston rings are not included and must be purchased separately.
.150" dome, 595 g
C/R 58=13.4, 64cc=12.3, 76cc=10.7
Piston/Pin Weight: 450 g
Rod Length: 6.0", Ring Style: C
Kits include:
Kits include:
| KEY SPECS | |
|---|---|
| MFG. Part # | 91510265 |
| Brand | Speedway Motors |
| Connecting Rod Type | H-Beam |
| Piston Style | Dome |
| Piston Material | Hypereutectic Aluminum |
| GENERAL | |
| Main Journal Style | 350 mains |
| Engine Stroke | 3.750" |
| Connecting Rod Length | 6.000" |
| Connecting Rod Material | Forged 4340 Steel |
| Connecting Rod Weight | 638 grams |
| Connecting Rod Bolt Diameter | 7/16" |
| Dome Height | 0.150" |
| Piston Weight | 450 grams |
| Piston Ring Style | C |
| Crankshaft Material | Cast Steel |
| Rear Main Seal Style | 2-piece |
| Wrist Pin Diameter | .9272" |
| Wrist Pin Weight | 145 grams |
| Main Journal Diameter | 2.448" |
| Rod Journal Diameter | 2.10" |
| Bearing Construction | Bi-metal |
| Bearing Undersize | Standard |
| Narrowed Bearing | Yes |
| Coated Bearing | No |
| Sold in Quantity | Kit |
4.5
2 Reviews
Customers appreciate the product for its excellent quality and good fit, signifying its top-notch practicality. Its value is praised, delivering great quality for its price, making it a preferred choice over competitors. Repeated purchases came highly recommended due to its confirmed features and undeniable superior qualities.
4.5
2 reviews
5
1
4
1
3
0
2
0
1
0
Filter by Ratings
I would buy again
5.0
2 years ago
Tee
Bentonville,AR
Verified
Quality parts good fit
Would Recommend
Great value
4.0
10 years ago
KOracing
Owendale, Mi
Verified
Great quality for the price.
Would Recommend
Showing 2 of 2 reviews
8 Questions • 10 Answers
How much HP can this kit handle
by Gary
• 8 years ago
1 answer
View Answer
Piston Rings
by Jim
• 8 years ago
2 answers
View Answers
Will this rotating assembly support 7000 RPM?
by Justin
• 8 years ago
2 answers
View Answers
What heads do you guys recommend for this kit?
by Tugger
• 8 years ago
1 answer
View Answer
Can this crank be internally balanced and is it capable of withstanding 6 to 7 thousand rpm in a circle track set up
by Mikey
• 9 years ago
1 answer
View Answer
What size flywheel should be used?
by Jason
• 10 years ago
1 answer
View Answer
How much extra for balancing?
by brian
• 11 years ago
1 answer
View Answer
What is the compression
by cary
• 11 years ago
1 answer
View Answer
8 of 8 questions shown
1973-1975 Chevy Bel Air
Gen 1 L48 Small Block Chevy
1972 Chevy Blazer
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
1973-1974 Chevy Blazer
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1973-1982 Chevy C10
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1983 Chevy C10
2-Piece Rear Main Chevy 350
1984 Chevy C10
Gen 1 L48 Small Block Chevy
1985 Chevy C10
2-Piece Rear Main Chevy 350
1972-1982 Chevy C10 Suburban
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1983 Chevy C10 Suburban
2-Piece Rear Main Chevy 350
1984 Chevy C10 Suburban
Gen 1 L48 Small Block Chevy
1985 Chevy C10 Suburban
2-Piece Rear Main Chevy 350
1982-1987 Chevy C15
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1972-1982 Chevy C20
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1984 Chevy C20
Gen 1 L48 Small Block Chevy
1972-1982 Chevy C20 Suburban
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1984 Chevy C20 Suburban
Gen 1 L82 Small Block Chevy
1972-1982 Chevy C30
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1984 Chevy C30
Gen 1 L46 Small Block Chevy
1983-1987 Chevy C35
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1973-1982 Chevy Camaro
Gen 1 L48 Small Block Chevy
1973-1982 Chevy Caprice
Gen 1 L48 Small Block Chevy
1983 Chevy Caprice
2-Piece Rear Main Chevy 350
1984 Chevy Caprice
Gen 1 L48 Small Block Chevy
1985 Chevy Caprice
2-Piece Rear Main Chevy 350
1973 Chevy Chevelle
Gen 1 L48 Small Block Chevy
1973-1974 Chevy Corvette
Gen 1 L48 Small Block Chevy
1980 Chevy Corvette
Gen 1 L48 Small Block Chevy
1984 Chevy Corvette
Gen 1 L83 Small Block Chevy
1985 Chevy Corvette
2-Piece Rear Main Chevy 350
1973-1977 Chevy El Camino
Gen 1 L48 Small Block Chevy
1978-1979 Chevy El Camino
2-Piece Rear Main Chevy 350
1983 Chevy El Camino
2-Piece Rear Main Chevy 350
1984 Chevy El Camino
Gen 1 L81 Small Block Chevy
1975-1982 Chevy G10
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1984 Chevy G10
Gen 1 L82 Small Block Chevy
1970 Chevy G10 Van
2-Piece Rear Main Chevy 350
1972-1974 Chevy G10 Van
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1975-1982 Chevy G20
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L82 Small Block Chevy
1972 Chevy G20 Van
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1973-1974 Chevy G20 Van
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L82 Small Block Chevy
1975-1982 Chevy G30
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
1970 Chevy G30 Van
2-Piece Rear Main Chevy 350
1972-1974 Chevy G30 Van
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
1973-1982 Chevy Impala
Gen 1 L48 Small Block Chevy
1983 Chevy Impala
2-Piece Rear Main Chevy 350
1985 Chevy Impala
2-Piece Rear Main Chevy 350
1972-1982 Chevy K10
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1972-1982 Chevy K10 Suburban
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1972-1982 Chevy K20
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1972-1982 Chevy K20 Suburban
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1972-1974 Chevy K30
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1977-1982 Chevy K30
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1970-1974 Chevy K5 Blazer
2-Piece Rear Main Chevy 350
1975-1982 Chevy K5 Blazer
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1983 Chevy K5 Blazer
2-Piece Rear Main Chevy 350
1984 Chevy K5 Blazer
Gen 1 L48 Small Block Chevy
1985 Chevy K5 Blazer
2-Piece Rear Main Chevy 350
1973-1975 Chevy Laguna
Gen 1 L48 Small Block Chevy
1976 Chevy Laguna
2-Piece Rear Main Chevy 350
1973-1982 Chevy Malibu
Gen 1 L48 Small Block Chevy
1970-1971 Chevy Monte Carlo
2-Piece Rear Main Chevy 350
1973-1975 Chevy Monte Carlo
2-Piece Rear Main Chevy 350
1976-1977 Chevy Monte Carlo
Gen 1 L48 Small Block Chevy
1982-1983 Chevy Monte Carlo
2-Piece Rear Main Chevy 350
1975 Chevy Monza
Gen 1 L48 Small Block Chevy
1973-1974 Chevy Nova
Gen 1 L48 Small Block Chevy
1975 Chevy Nova
2-Piece Rear Main Chevy 350
1976-1979 Chevy Nova
Gen 1 L48 Small Block Chevy
1975-1979 Chevy P30
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
1980-1983 Chevy P30
2-Piece Rear Main Chevy 350
1985 Chevy P30
2-Piece Rear Main Chevy 350
1970 Chevy P30 Van
2-Piece Rear Main Chevy 350
1972 Chevy P30 Van
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
1973-1974 Chevy P30 Van
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
1967 GMC C15/C1500 Suburban
2-Piece Rear Main Chevy 350
1980-1984 GMC C1500
2-Piece Rear Main Chevy 350
1980-1986 GMC C1500 Suburban
2-Piece Rear Main Chevy 350
1967-1972 GMC C25/C2500 Pickup
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1967-1972 GMC C25/C2500 Suburban
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1967-1974 GMC C35/C3500 Pickup
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1978-1987 GMC Caballero
2-Piece Rear Main Chevy 350
1975-1978 GMC G15
2-Piece Rear Main Chevy 350
1967-1974 GMC G15/G1500 Van
2-Piece Rear Main Chevy 350
1979-1986 GMC G1500
2-Piece Rear Main Chevy 350
1975-1978 GMC G25
2-Piece Rear Main Chevy 350
1967-1974 GMC G25/G2500 Van
2-Piece Rear Main Chevy 350
1979-1986 GMC G2500
2-Piece Rear Main Chevy 350
1975-1978 GMC G35
2-Piece Rear Main Chevy 350
1967 GMC G35/G3500 Van
2-Piece Rear Main Chevy 350
1970-1974 GMC G35/G3500 Van
2-Piece Rear Main Chevy 350
1979-1986 GMC G3500
2-Piece Rear Main Chevy 350
1974-1977 GMC Jimmy
2-Piece Rear Main Chevy 350
1983-1984 GMC Jimmy
2-Piece Rear Main Chevy 350
1975-1978 GMC K15
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1975-1978 GMC K15 Suburban
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1967-1974 GMC K15/K1500 Pickup
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1967-1974 GMC K15/K1500 Suburban
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1979-1984 GMC K1500
2-Piece Rear Main Chevy 350
1979-1980 GMC K1500 Suburban
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1975-1978 GMC K25
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1975-1978 GMC K25 Suburban
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1967-1974 GMC K25/K2500 Pickup
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1967-1974 GMC K25/K2500 Suburban
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1979-1984 GMC K2500
2-Piece Rear Main Chevy 350
1979-1986 GMC K2500 Suburban
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1994-1999 GMC K2500 Suburban
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1967-1974 GMC K35/K3500 Pickup
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
1973-1977 GMC Sprint
Gen 1 LM1 Small Block Chevy
1967 GMC Suburban
Gen 1 L46 Small Block Chevy
1987-1991 GMC V1500 Suburban
350 Chevy Small Block V8
1987 GMC V2500
350 Chevy Small Block V8
1987-1991 GMC V2500 Suburban
350 Chevy Small Block V8
1987-1991 GMC V3500
350 Chevy Small Block V8
