#9151021
Premium Chevy 383 Rotating Assembly, 1-Piece Main, Flat Top, 5.7 Rod
- Fits 350/383 Chevy Small Block V8
- Includes cast steel crank, Keith Black Hypereutectic pistons, and Speedway 4340 full floating H-beam rods with ARP bolts
- One-piece rear main seal
$1,545.99
/kit
On Backorder
$1,569.20
Save $23.21
This part is Backordered. We currently do not have an estimate when this item will ship.
Quantity
Need Help? Call to Order
Add to a list
Select an engine to verify Fitment
Select Engine
Product Summary
350 mains Main Journal Style, 3.750" Engine Stroke
- Fits 350/383 Chevy Small Block V8
- Includes cast steel crank, Keith Black Hypereutectic pistons, and Speedway 4340 full floating H-beam rods with ARP bolts
- One-piece rear main seal
- Hypereutectic aluminum piston material
- Forged 4340 steel connecting rod
Comes as a Kit
View Kit Components
Key Specs
| MFG. Part # | 9151021 |
| Brand | Speedway Motors |
| Connecting Rod Type | H-Beam |
| Piston Style | Flat Top |
| Piston Material | Hypereutectic Aluminum |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 9151021 Details
Speedway Motors 9151021 Details
These rotating assembly engine rebuild kits feature a new one piece rear main cast steel crank with standard size journals, Keith Black Hyperuetectic piston set, and Speedway 4340 full floating H-beam rods with ARP bolts.
All balancing is done with our state-of-the-art Hines balancer by race mechanics with over 30 years of experience! A kit purchased with the optional balance job will ship in 24-48 hours.
NOTE: Piston rings are not included and must be purchased separately.
Item Details
Flat top, 650 g
C/R 58cc=11.9, 64cc=10.9, 76cc=9.6
Piston/Pin Weight: 650 g
Rod Length: 5.7", Ring Style: A

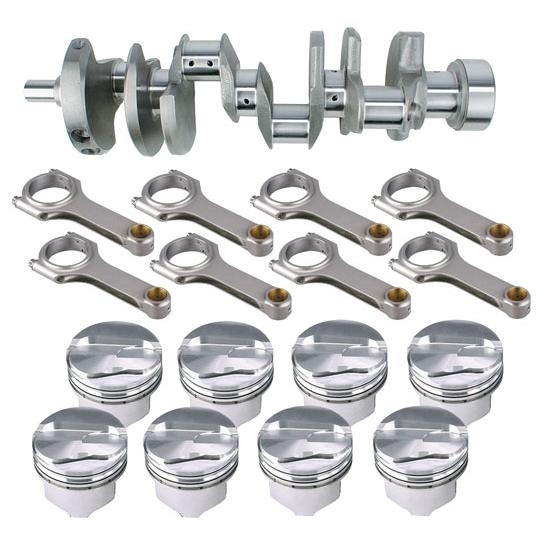

Kits include:
- Scat Cast Steel Crankshaft
- One-piece rear main
- 80-60-06 cast steel construction
- Fatigue-resistant with near forged steel endurance
- Standard size journals
- Speedway 4340 H-beam Connecting Rods w/ ARP bolts
- Full floating pin in silicon bronze bushing
- Precision bolt bushings to positively locate cap
- 5.7 " (622 grams) or 6.0 " (634 grams) lengths
- Weight matched set of 8 rods
- Keith Black Signature Series Hypereutectic Pistons
- T-5 heat treated aluminum construction
- Super stiff design for maximum ring seal
- 4.000 " bore pistons available in .030, .040, or .060 sizes
- King HP Series Main and Rod Bearings
- 0.015 " thick top layer for superior macro particle embedability and conformability
- 40 Vickers hardness to resist overlay migration and extrusion
- 450°F heat threshold for superior protection against friction and overheating
- Mains are 3/4 grooved for improved oiling to the rod journals
- Bi-metal aluminum silicon alloy featuring fine micro-bore finish
Kits include:
- (1) Scat 935050L 383 Chevy Cast Steel Crankshaft, 1-Piece Main, 5.7 Rod
- (1) Small Block Chevy 5.7 H-Beam Connecting Rods, 4340 Steel, 7/16
- (1) King HP Series Chevy 350/400 Large Journal Engine Rod Bearings
- (1) King MB 557HP HP Series Chevy 350 Large Journal Main Bearings
- (1) Keith Black Flat Top 5.7 Rod Chevy 383 Hypereutectic Pistons
Speedway Motors 9151021 Specifications
Speedway Motors 9151021 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 9151021 |
| Brand | Speedway Motors |
| Connecting Rod Type | H-Beam |
| Piston Style | Flat Top |
| Piston Material | Hypereutectic Aluminum |
| GENERAL | |
| Main Journal Style | 350 mains |
| Engine Stroke | 3.750" |
| Connecting Rod Length | 5.700" |
| Connecting Rod Material | Forged 4340 Steel |
| Connecting Rod Weight | 622 grams |
| Connecting Rod Bolt Diameter | 7/16" |
| Piston Weight | 505 grams |
| Piston Ring Style | A |
| Crankshaft Material | Cast Steel |
| Rear Main Seal Style | 1-piece |
| Wrist Pin Diameter | .9272" |
| Wrist Pin Weight | 145 grams |
| Main Journal Diameter | 2.448" |
| Rod Journal Diameter | 2.10" |
| Bearing Construction | Bi-metal |
| Bearing Undersize | Standard |
| Narrowed Bearing | Yes |
| Coated Bearing | No |
| Sold in Quantity | Kit |
