Premium Chevy 383 Rotating Assembly, 1-Piece Main, .150 Dome, 6.0 Rod
Premium Chevy 383 Rotating Assembly, 1-Piece Main, .150 Dome, 6.0 Rod

Premium Chevy 383 Rotating Assembly, 1-Piece Main, .150 Dome, 6.0 Rod

350 Chevy Small Block V8, 383 Chevy Small Block V8, 350 mains Main Journal Style

0 Reviews | 2 Answered Questions
On Backorder
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Premium Chevy 383 Rotating Assembly, 1-Piece Main, .150 Dome, 6.0 Rod
Premium Chevy 383 Rotating Assembly, 1-Piece Main, .150 Dome, 6.0 Rod
Premium Chevy 383 Rotating Assembly, 1-Piece Main, .150 Dome, 6.0 Rod
Premium Chevy 383 Rotating Assembly, 1-Piece Main, .150 Dome, 6.0 Rod
Zoomed In Image
We estimate this item will ship on or before January 22nd.
Part # 9151028
Call to Order
Add to Buildlist
What's In The Kit
Videos & Articles

Build Your Kit

You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Item 1 of 1
KB Chevy 383 Hypereutectic Pistons, .150 Dome, 6.0 Rod
KB Chevy 383 Hypereutectic Pistons, .150 Dome, 6.0 Rod
Quantity: 1
Add to Cart


Main Journal Style:
350 mains
Engine Stroke:
Connecting Rod Type:
Connecting Rod Length:
Connecting Rod Material:
Forged 4340 Steel
Connecting Rod Weight:
638 grams
Connecting Rod Bolt Diameter:
Piston Style:
Piston Material:
Hypereutectic Aluminum
Dome Height:
Piston Weight:
450 grams
Piston Ring Style:
Crankshaft Material:
Cast Steel
Rear Main Seal Style:
Wrist Pin Diameter:
Wrist Pin Weight:
145 grams
Main Journal Diameter:
Rod Journal Diameter:
Bearing Construction:
Bearing Undersize:
Narrowed Bearing:
Coated Bearing:
MFG. Part #:
Sold in Quantity:

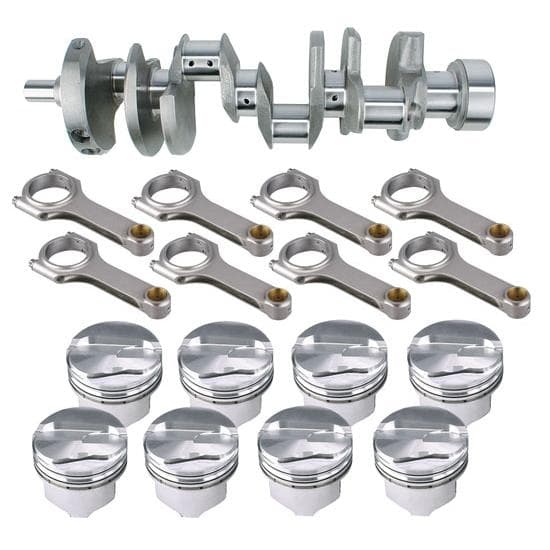

These rotating assembly engine rebuild kits feature a new one piece rear main cast steel crank with standard size journals, Keith Black Hyperuetectic piston set, and Speedway 4340 full floating H-beam rods with ARP bolts.

All balancing is done with our state-of-the-art Hines balancer by race mechanics with over 30 years of experience! A kit purchased with the optional balance job will ship in 24-48 hours.

NOTE: Piston rings are not included and must be purchased separately.

Item Details

0.150" dome, 595 g

C/R 58=13.4, 64cc=12.3, 76cc=10.7
Piston/Pin Weight: 450 g
Rod Length: 6.0", Ring Style: C


Kits include:

  • Scat Cast Steel Crankshaft
    • One-piece rear main
    • 80-60-06 cast steel construction
    • Fatigue-resistant with near forged steel endurance
    • Standard size journals
  • Speedway 4340 H-beam Connecting Rods w/ ARP bolts
    • Full floating pin in silicon bronze bushing
    • Precision bolt bushings to positively locate cap
    • 5.7" (622 grams) or 6.0" (634 grams) lengths
    • Weight matched set of 8 rods
  • Keith Black Signature Series Hypereutectic Pistons
    • T-5 heat treated aluminum construction
    • Super stiff design for maximum ring seal
    • 4.000" bore pistons available in .030, .040, or .060 sizes
  • King HP Series Main & Rod Bearings
    • 0.015" thick top layer for superior macro particle embedability and conformability
    • 40 Vickers hardness to resist overlay migration and extrusion
    • 450°F heat threshold for superior protection against friction and overheating
    • Mains are 3/4 grooved for improved oiling to the rod journals
    • Bi-metal aluminum silicon alloy featuring fine micro-bore finish

Important Messages

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations

Related Products

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
  • Scat 935060L 383 Chevy Cast Steel Crankshaft, 1-Piece Main, 6.0 Rod
    Qty x 1
  • Small Block Chevy 6.0 H-Beam Connecting Rods, 4340 Steel, 7/16
    Qty x 1
  • KB Chevy 383 Hypereutectic Pistons, .150 Dome, 6.0 Rod
    Qty x 1
  • King HP Series Chevy 350/400 Large Journal Engine Rod Bearings, Std
    Qty x 1
  • King MB 557HP HP Series Chevy 350 Large Journal Main Bearings
    Qty x 1
