#9151023
Premium Chevy 350 Rotating Assembly, 1-Piece Main, Flat Top, 6.0 Rod
$1,589.99
/kit
In Stock
$1,613.95
Save $23.96
Quantity
Need Help? Call to Order
Add to a list
Select an engine to verify Fitment
Select Engine
Product Summary
350 mains Main Journal Style, 3.480" Engine Stroke
Comes as a Kit
View Kit Components
Key Specs
| MFG. Part # | 9151023 |
| Brand | Speedway Motors |
| Connecting Rod Type | H-Beam |
| Piston Style | Flat Top |
| Piston Material | Hypereutectic Aluminum |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 9151023 Details
Speedway Motors 9151023 Details
These rotating assembly engine rebuild kits feature a new one piece rear main cast steel crank with standard size journals, Keith Black Hyperuetectic piston set, and Speedway 4340 full floating H-beam rods with ARP bolts.
All balancing is done with our state-of-the-art Hines balancer by race mechanics with over 30 years of experience! A kit purchased with the optional balance job will ship in 24-48 hours.
NOTE: Piston rings are not included and must be purchased separately.
Item Details
Flat top, 605 g
C/R 58cc=10.9, 64cc=10.2, 76cc=8.9
Piston/Pin Weight: 605 g
Rod Length: 6.0", Ring Style: C

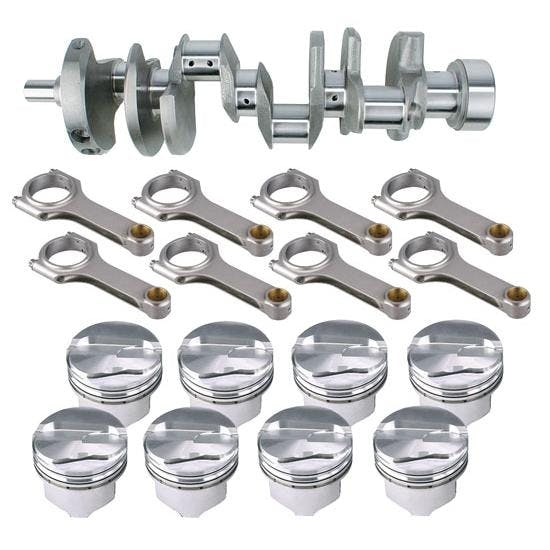

Kits include:
- Scat Cast Steel Crankshaft
- One-piece rear main
- 80-60-06 cast steel construction
- Fatigue-resistant with near forged steel endurance
- Standard size journals
- Speedway 4340 H-beam Connecting Rods w/ ARP bolts
- Full floating pin in silicon bronze bushing
- Precision bolt bushings to positively locate cap
- 5.7 " (622 grams) or 6.0 " (634 grams) lengths
- Weight matched set of 8 rods
- Keith Black Signature Series Hypereutectic Pistons
- T-5 heat treated aluminum construction
- Super stiff design for maximum ring seal
- 4.000 " bore pistons available in .030, .040, or .060 sizes
- King HP Series Main and Rod Bearings
- 0.015 " thick top layer for superior macro particle embedability and conformability
- 40 Vickers hardness to resist overlay migration and extrusion
- 450°F heat threshold for superior protection against friction and overheating
- Mains are 3/4 grooved for improved oiling to the rod journals
- Bi-metal aluminum silicon alloy featuring fine micro-bore finish
Kits include:
- Scat Cast Steel Crankshaft
- One-piece rear main
- 80-60-06 cast steel construction
- Fatigue-resistant with near forged steel endurance
- Standard size journals
- Speedway 4340 H-beam Connecting Rods w/ ARP bolts
- Full floating pin in silicon bronze bushing
- Precision bolt bushings to positively locate cap
- 5.7 " (622 grams) or 6.0 " (634 grams) lengths
- Weight matched set of 8 rods
- Keith Black Signature Series Hypereutectic Pistons
- T-5 heat treated aluminum construction
- Super stiff design for maximum ring seal
- 4.000 " bore pistons available in .030, .040, or .060 sizes
- King HP Series Main and Rod Bearings
- 0.015 " thick top layer for superior macro particle embedability and conformability
- 40 Vickers hardness to resist overlay migration and extrusion
- 450°F heat threshold for superior protection against friction and overheating
- Mains are 3/4 grooved for improved oiling to the rod journals
- Bi-metal aluminum silicon alloy featuring fine micro-bore finish
Speedway Motors 9151023 Specifications
Speedway Motors 9151023 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 9151023 |
| Brand | Speedway Motors |
| Connecting Rod Type | H-Beam |
| Piston Style | Flat Top |
| Piston Material | Hypereutectic Aluminum |
| GENERAL | |
| Main Journal Style | 350 mains |
| Engine Stroke | 3.480" |
| Connecting Rod Length | 6.000" |
| Connecting Rod Material | Forged 4340 Steel |
| Connecting Rod Weight | 638 grams |
| Connecting Rod Bolt Diameter | 7/16" |
| Piston Weight | 460 grams |
| Piston Ring Style | C |
| Crankshaft Material | Cast Steel |
| Rear Main Seal Style | 1-piece |
| Wrist Pin Diameter | .9272" |
| Wrist Pin Weight | 145 grams |
| Main Journal Diameter | 2.448" |
| Rod Journal Diameter | 2.10" |
| Bearing Construction | Bi-metal |
| Bearing Undersize | Standard |
| Narrowed Bearing | Yes |
| Coated Bearing | No |
| Sold in Quantity | Kit |
