Add to Cart
$17.99

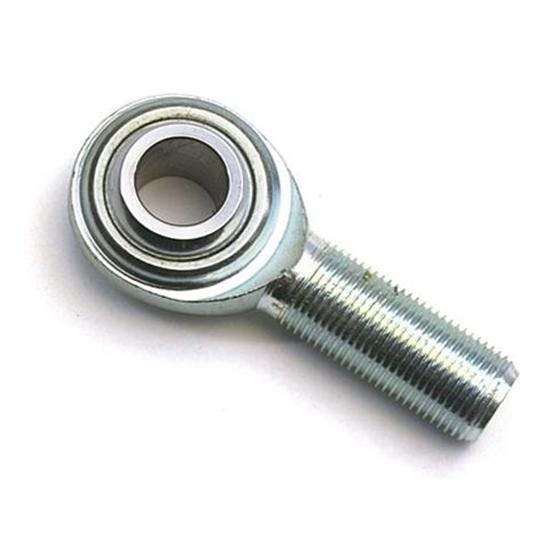

Precision X-Series Heim Joint Rod Ends, 3/4-16 LH Male, 5/8 Inch Hole
Precision X-Series Heim Joint Rod Ends, 3/4-16 LH Male, 5/8 Inch Hole

Precision X-Series Heim Joint Rod Ends, 3/4-16 LH Male, 5/8 Inch Hole

Universal Fit, LH Male Thread Type, Male Threads/Eyelet Rod End Attachment, Steel, Zinc Plated

0 Reviews | 0 Answered Questions
In Stock
Can Ship FREE
Select your vehicle to verify fitment.
Select Vehicle
Precision X-Series Heim Joint Rod Ends, 3/4-16 LH Male, 5/8 Inch Hole
Precision X-Series Heim Joint Rod Ends, 3/4-16 LH Male, 5/8 Inch Hole
Precision X-Series Heim Joint Rod Ends, 3/4-16 LH Male, 5/8 Inch Hole
X
Precision X-Series Heim Joint Rod Ends, 3/4-16 LH Male, 5/8 Inch Hole
Zoomed In Image
Part # 1750327
$17.99
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Details

Thread Type:
LH Male
Rod End Attachment:
Male Threads/Eyelet
Thread Pitch:
3/4"-16
Material Type:
Steel
Hole Diameter:
0.625"
Rod End Style:
Spherical Bearing
Grease Fitting:
No
Finish:
Zinc Plated
Thread Length:
1.750"
Rod End Head Width:
1.75"
Overall Length:
3.75"
Overall Thickness:
0.75"
Center Hole to End of Shank:
2.875"
MFG. Part #:
1750327
Sold in Quantity:
Each

Info

These rod ends are used when you need to combine different sized rod shank and through hole. These ends offer greater strength than our "standard" rod ends.

ASSEMBLY TIP:
To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.

Some parts are not legal for use in California or other states with similar laws/regulations
