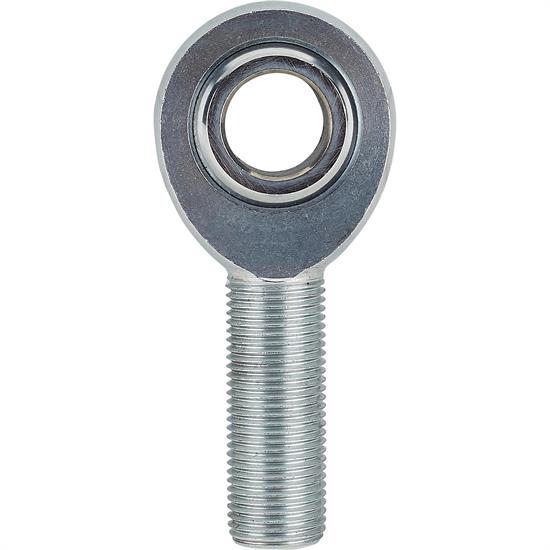

Precision Carbon Steel RH Male Heim Joint Rod Ends, 5/8 Inch

#1750116

Precision Carbon Steel RH Male Heim Joint Rod Ends, 5/8 Inch

Name: Precision Carbon Steel RH Male Heim Joint Rod Ends, 5/8 Inch
Brand: Speedway Motors
SKU: 1750116
Price: 14.99 USD
Availability: InStock
Rating: 4.8 (17 reviews)

17 Reviews

4 Questions

Precision steel rod ends provide greater strength and longer life than our standard series rod ends
The carbon steel body and 5210 precision ground steel ball features a Teflon®Kevlar®race for self-lubrication and to seal out dirt and debris
Useful for a wide variety of applications including clutch, brake, steering, and suspension components for moderate horsepower applications

Thread:

Right Hand

Left Hand

$14.99

/each

In Stock

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, RH Male Thread Type, Steel, Zinc Plated

Precision steel rod ends provide greater strength and longer life than our standard series rod ends
The carbon steel body and 5210 precision ground steel ball features a Teflon®Kevlar®race for self-lubrication and to seal out dirt and debris
Useful for a wide variety of applications including clutch, brake, steering, and suspension components for moderate horsepower applications
5/8"-18 RH male rolled threads ensure strength and precision
16 degrees of misalignment provides a moderate range of motion without binding

See more details

Key Specs

Thread Type	RH Male
Rod End Attachment	Male Threads/Eyelet
Thread Pitch	5/8"-18
Material Type	Steel
Hole Diameter	0.625"

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Speedway Motors 1750116 Details

Precision steel rod ends provide greater strength than our "standard" rod ends. They have close tolerance and have a 3 piece medium duty rod end. Carbon steel body, 5210 precision ground ball and feature a Teflon Kevlar race. Self lubrication teflon liner to seal out dirt and debris. Shank and hole are the same size.

Applications: Clutch, Brake, Steering & Suspension Components. Quieter, Smoother, & More Durable Than 2 Piece Rod Ends. Tight Tolerance of Kevlar Race Reduces "Slop" In Steering & Suspension.

ASSEMBLY TIP:
To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.

Charts

Standard Heim Sizes Chart (GIF)

Guides & Documents

Heim Joints and Rod Ends Sizing Chart (1750116)

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

Speedway Motors 1750116 Specifications

KEY SPECS
MFG. Part #	1750116
Brand	Speedway Motors
Thread Type	RH Male
Rod End Attachment	Male Threads/Eyelet
Thread Pitch	5/8"-18
Material Type	Steel
Hole Diameter	0.625"
Rod End Style	PTFE Lined
Rod End Construction	3-piece
Grease Fitting	No
Finish	Zinc Plated
Color	Natural
Bushing Material	PTFE
Jam Nut Included	No

GENERAL
Sold in Quantity	Each

Ratings & Reviews

4.8

17 Reviews

Overall Assessment

Customers rave about the product's quality, practicality, and durability. They appreciate its usability in diverse applications from steering joints, suspensions, ladder bars, control arms, and tie rods. Users have found our product beneficial as a replacement for worn parts. It has impressed customers with its excellent finish, aesthetic appeal, and its long-lasting performance even in high-demand scenarios such as track use. Distinctly superior to competitor offerings, our product enjoys a solid customer endorsement.

Write A Review

4.8

17 reviews

Most Liked Positive Review

5.0

Great product, time tested

I have been running a set of these on the custom independant rear suspension of my Triumph Spitfire for a couple of years, around 25000km per year, with no issues. They are still good after over 50000km part of which was on the track.

Most Liked Negative Review

3.0

Not installed yet.

N/A

Filter by Ratings

Sort Reviews

It was just what I needed

5.0

6 months ago

Oklahoma

Verified

Work great

Would Recommend

These are the best kind of Heim joints to use.

5.0

a year ago

Jersey Jeff

South New Jersey

Verified

I'm running these on my 32 Plymouth with a Speedway dropped tube axle, they seem to be holding up well I'm using them for around 13,000 miles so far. These are lined with nylon and if you use the dust boots along with them, it's difficult for debris to get in and destroy them definitely worth the money.

Would Recommend

it fit my needs

5.0

3 years ago

roder

south williamsport, pa

Verified

it made a good steering joint

Would Recommend

i would buy this again

5.0

4 years ago

jim

ind

Verified

used this on my stump grinder for belt adjustment

Would Recommend

Just what I needed

5.0

5 years ago

Sutton

Verified

Made the rear suspension work so much better that the part used by the builder.

Would Recommend

Great piece for the price

5.0

6 years ago

Duncan Motorsports

Texas

Verified

Quality component for the price

Would Recommend

Great product

5.0

9 years ago

Jake

Verified

They are great joints at a good price and they worked perfectly for my ladder bars

Would Recommend

Great product!

5.0

10 years ago

Farm mechanic

Eaton, OH

Verified

Great product, used these to replace worn joints on front control arms on a model A roadster.

Would Recommend

good mid quality

4.0

10 years ago

burn um off

canton ga

Verified

as described

Would Recommend

great deal

5.0

10 years ago

Lumpy

Byron Center MI

Verified

used these with the tie rod adapter studs to fix bump steer. works great.

Would Recommend

Load More Reviews

Showing 10 of 17 reviews

Questions & Answers

4 Questions • 5 Answers

Sort Questions

What is total thickness of the swivel ball, where the 5/8 bolt would go through?

by Brian

• 11 years ago

1 answer

View Answer

what is the total length of the threads and what is the dimension from the center of the 5/8" bore to the end of the threads Thank you

by Craig

• 11 years ago

1 answer

View Answer

Center bolt attachment size Does Speedway offer a bolt kit for attaching these joint rod or what size bolt should be purchased?

by PopsH1

• 12 years ago

1 answer

View Answer

is this piece chrome plated

by JGJBoud

• 13 years ago

2 answers

View Answers

4 of 4 questions shown
