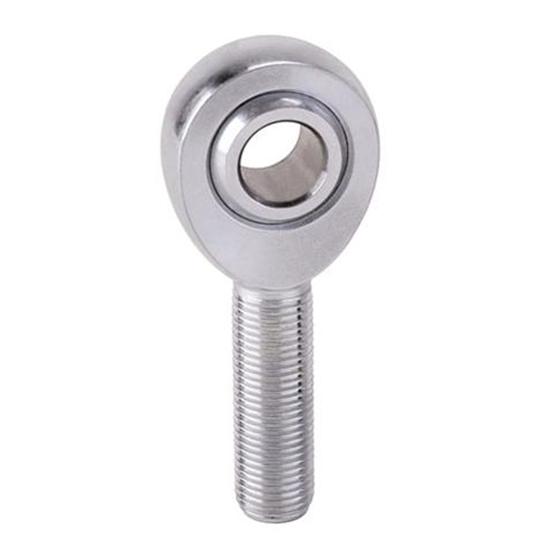

Precision Carbon Steel RH Male Heim Joint Rod Ends, 3/16 Inch
- Precision steel rod ends provide greater strength and longer life than our standard series rod ends
- The carbon steel body and 5210 precision ground steel ball features a Teflon®/Kevlar® race for self-lubrication and to seal out dirt and debris
- Useful for a wide variety of applications including clutch, brake, steering, and suspension components for moderate horsepower applications
$7.99
/each
In Stock
$12.59
Save $4.60
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, RH Male Thread Type, Steel, Zinc Plated
- Precision steel rod ends provide greater strength and longer life than our standard series rod ends
- The carbon steel body and 5210 precision ground steel ball features a Teflon®/Kevlar® race for self-lubrication and to seal out dirt and debris
- Useful for a wide variety of applications including clutch, brake, steering, and suspension components for moderate horsepower applications
- 10-32 RH male rolled threads ensure strength and precision
- 13 degrees of misalignment provides a moderate range of motion without binding
Key Specs
| Thread Type | RH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 3/16" (10-32) |
| Material Type | Steel |
| Hole Diameter | 0.19" |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 1750110 Details
Speedway Motors 1750110 Details
Applications: Clutch, Brake, Steering & Suspension Components. Quieter, Smoother, & More Durable Than 2 Piece Rod Ends. Tight Tolerance of Kevlar Race Reduces "Slop" In Steering & Suspension.
ASSEMBLY TIP:
To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.
Charts
Guides & Documents
Speedway Motors 1750110 Specifications
Speedway Motors 1750110 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 1750110 |
| Brand | Speedway Motors |
| Thread Type | RH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 3/16" (10-32) |
| Material Type | Steel |
| Hole Diameter | 0.19" |
| Rod End Style | PTFE Lined |
| Rod End Construction | 3-piece |
| Grease Fitting | No |
| Finish | Zinc Plated |
| Color | Natural |
| Bushing Material | PTFE |
| Jam Nut Included | No |
| GENERAL | |
| Sold in Quantity | Each |
Ratings & Reviews
5
4 Reviews
Customers are highly satisfied with our product's functionality and practicality, especially in enabling a smooth linkage operation. The tool reliably caters to both left and right hand threads for dual quad tunnel ram linkages, as well as functioning effectively on edmunds dual stromberg flathead manifolds, setting it apart from options offered by competitors. The material quality and usability are also commended for being flawless, while the overall value added to the users made it highly recommended.
Ratings & Reviews
5
4 Reviews
Customers are highly satisfied with our product's functionality and practicality, especially in enabling a smooth linkage operation. The tool reliably caters to both left and right hand threads for dual quad tunnel ram linkages, as well as functioning effectively on edmunds dual stromberg flathead manifolds, setting it apart from options offered by competitors. The material quality and usability are also commended for being flawless, while the overall value added to the users made it highly recommended.
5
4 reviews
5
4
4
0
3
0
2
0
1
0
Filter by Ratings
Just what I was looking for👍🏻
5.0
4 years ago
Garyh54
Long Island
Verified

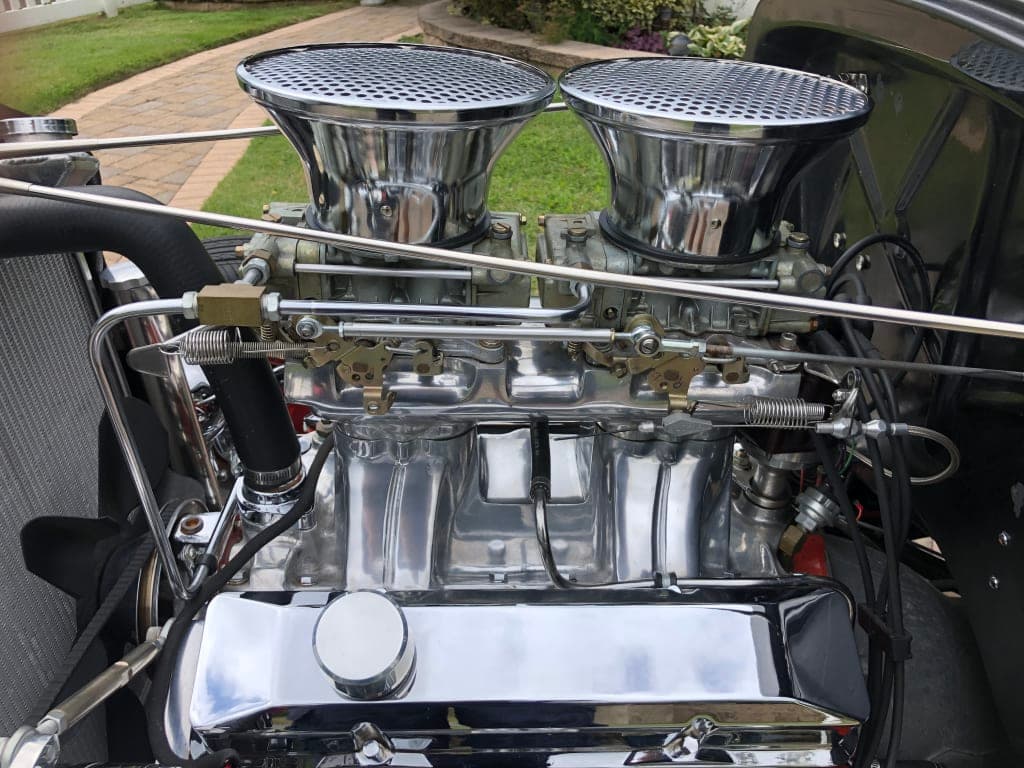

Used both left and right hand threads for dual quad tunnel ram linkage.
