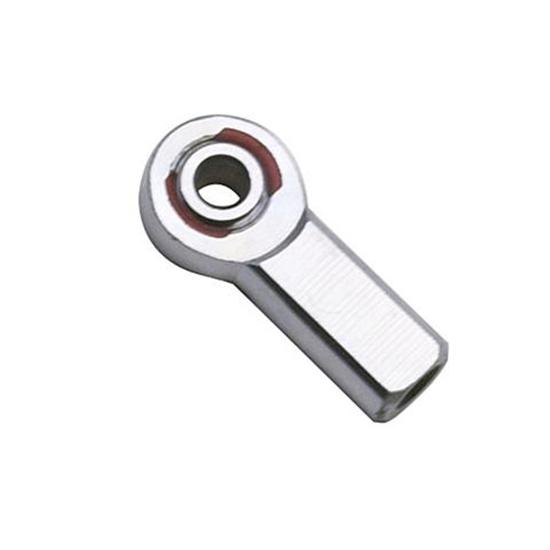

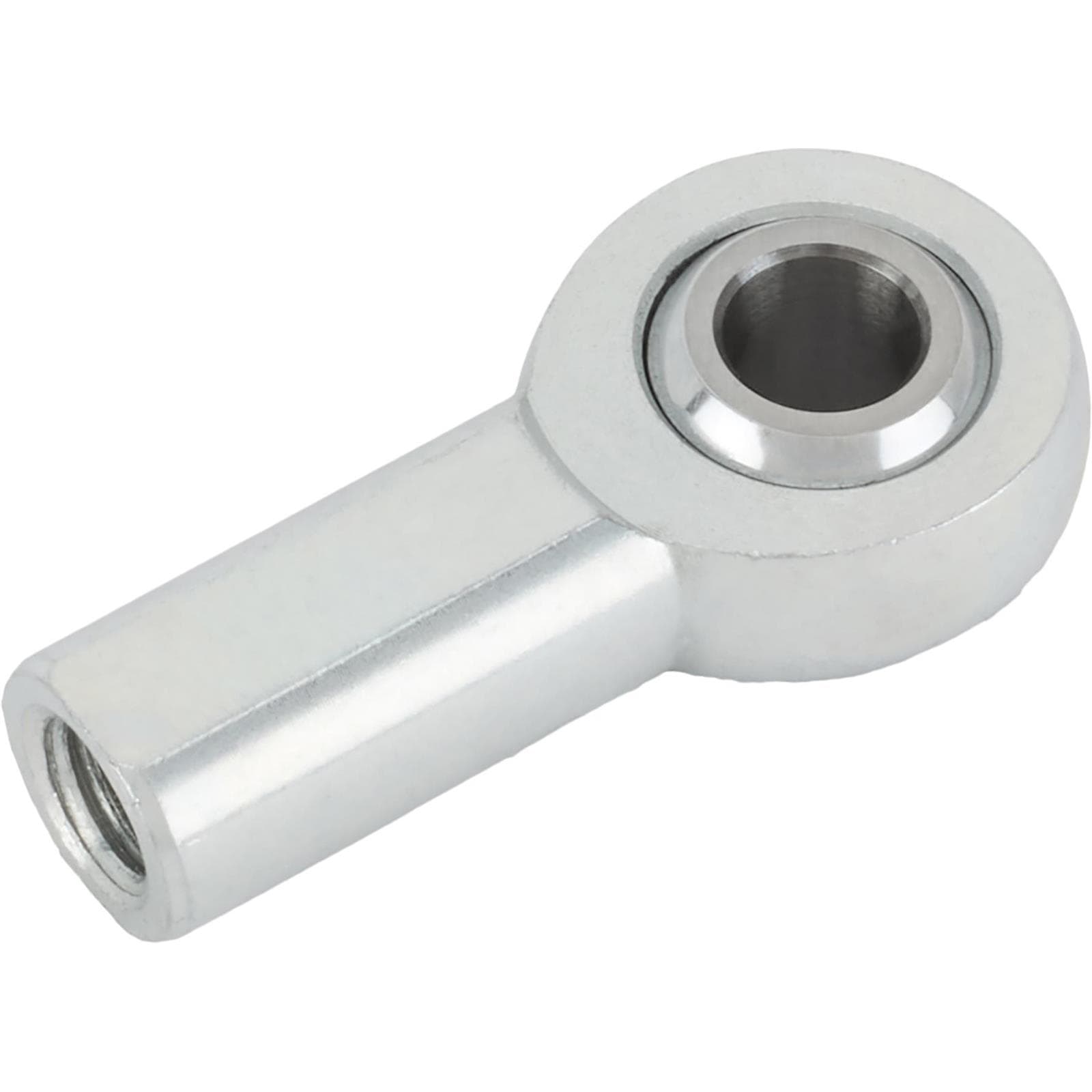

Precision Carbon Steel RH Female Heim Joint Rod Ends, 5/16 Inch
- Precision steel rod ends provide greater strength and longer life than our standard series rod ends
- The carbon steel body and 5210 precision ground steel ball features a Teflon®/Kevlar® race for self-lubrication and to seal out dirt and debris
- Useful for a wide variety of applications including clutch, brake, steering, and suspension components for moderate horsepower applications
$9.69
/each
In Stock
$15.69
Save $6.00
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, RH Female Thread Type, Steel, Natural
- Precision steel rod ends provide greater strength and longer life than our standard series rod ends
- The carbon steel body and 5210 precision ground steel ball features a Teflon®/Kevlar® race for self-lubrication and to seal out dirt and debris
- Useful for a wide variety of applications including clutch, brake, steering, and suspension components for moderate horsepower applications
- 5/16"-24 RH female threads ensure strength and precision
- 14 degrees of misalignment provides a moderate range of motion without binding
Key Specs
| Thread Type | RH Female |
| Rod End Attachment | Female Threads/Eyelet |
| Thread Pitch | 5/16"-24 |
| Material Type | Steel |
| Hole Diameter | 0.313" |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 1750212 Details
Speedway Motors 1750212 Details
Applications: Clutch, Brake, Steering & Suspension Components. Quieter, Smoother, & More Durable Than 2 Piece Rod Ends. Tight Tolerance of Kevlar Race Reduces "Slop" In Steering & Suspension.
ASSEMBLY TIP:
To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.
Speedway Motors 1750212 Specifications
Speedway Motors 1750212 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 1750212 |
| Brand | Speedway Motors |
| Thread Type | RH Female |
| Rod End Attachment | Female Threads/Eyelet |
| Thread Pitch | 5/16"-24 |
| Material Type | Steel |
| Hole Diameter | 0.313" |
| Rod End Style | PTFE Lined |
| Rod End Construction | 3-piece |
| Grease Fitting | No |
| Finish | Zinc Plated |
| Color | Natural |
| Bushing Material | PTFE |
| Jam Nut Included | No |
| GENERAL | |
| Sold in Quantity | Each |
