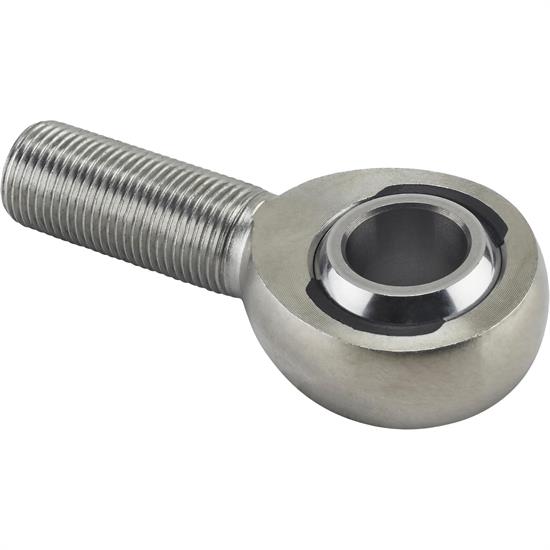

Precision Carbon Steel LH Male Heim Joint Rod Ends, 3/4 Inch
Precision Carbon Steel LH Male Heim Joint Rod Ends, 3/4 Inch
Speedway Motors

|

#1750317

Precision Carbon Steel LH Male Heim Joint Rod Ends, 3/4 Inch

  • Precision steel rod ends provide greater strength and longer life than our standard series rod ends
  • The carbon steel body and 5210 precision ground steel ball features a Teflon®/Kevlar® race for self-lubrication and to seal out dirt and debris
  • Useful for a wide variety of applications including clutch, brake, steering, and suspension components for moderate horsepower applications
See More

Thread:

Left Hand

Right Hand

$17.49

/each

In Stock


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, LH Male Thread Type, Steel, Zinc Plated

  • Precision steel rod ends provide greater strength and longer life than our standard series rod ends
  • The carbon steel body and 5210 precision ground steel ball features a Teflon®/Kevlar® race for self-lubrication and to seal out dirt and debris
  • Useful for a wide variety of applications including clutch, brake, steering, and suspension components for moderate horsepower applications
  • 3/4"-16 LH male rolled threads ensure strength and precision
  • 14 degrees of misalignment provides a moderate range of motion without binding
See more details

Key Specs

Thread TypeLH Male
Rod End AttachmentMale Threads/Eyelet
Thread Pitch3/4"-16
Material TypeSteel
Hole Diameter0.75"
See more specs

Need To Know

Need help?

855.313.9176
View the Help Center

Quick and Easy Returns

Return Policy

Speedway Motors 1750317 Details

Precision steel rod ends provide greater strength than our "standard" rod ends. They have close tolerance and have a 3 piece medium duty rod end. Carbon steel body, 5210 precision ground ball and feature a Teflon Kevlar race. Self lubrication teflon liner to seal out dirt and debris. Shank and hole are the same size.

Applications: Clutch, Brake, Steering & Suspension Components. Quieter, Smoother, & More Durable Than 2 Piece Rod Ends. Tight Tolerance of Kevlar Race Reduces "Slop" In Steering & Suspension.

ASSEMBLY TIP:
To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.

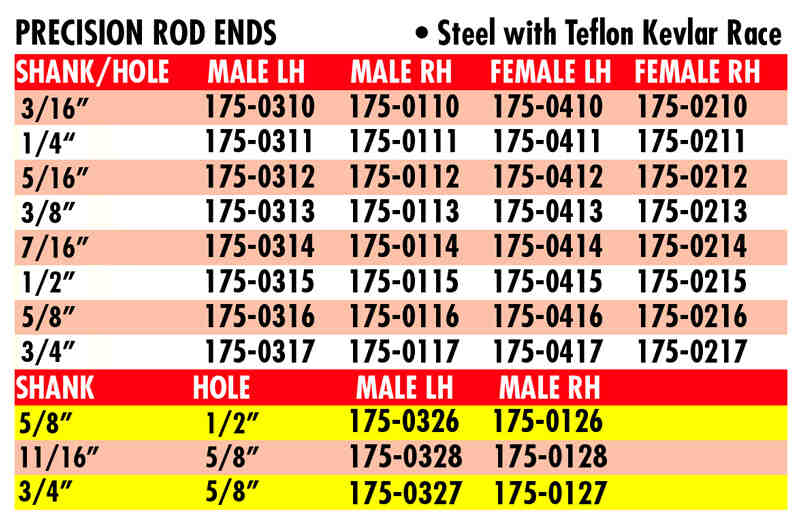

Charts

Speedway Motors 1750317 Specifications

KEY SPECS
MFG. Part #1750317
BrandSpeedway Motors
Thread TypeLH Male
Rod End AttachmentMale Threads/Eyelet
Thread Pitch3/4"-16
Material TypeSteel
Hole Diameter0.75"
Rod End StylePTFE Lined
Rod End Construction3-piece
Grease FittingNo
FinishZinc Plated
ColorNatural
Bushing MaterialPTFE
Jam Nut IncludedNo
GENERAL
Sold in QuantityEach

Ratings & Reviews

5

1 Review

Write A Review

5

1 reviews

5

1

4

0

3

0

2

0

1

0

Filter by Ratings

heim joint

5.0

11 years ago

blanchardracing

motley mn

Verified

used on pull bar and they work great

Would Recommend

Showing 1 of 1 reviews

Questions & Answers

2 Questions • 2 Answers

I'll need misalignment spacers to take up slack, but can't find how thick these are on their own?

by Jeremy

• 2 years ago

1 answer

View Answer

how long are the threads?

by Jeremy

• 7 years ago

1 answer

View Answer

2 of 2 questions shown
