$166 Off

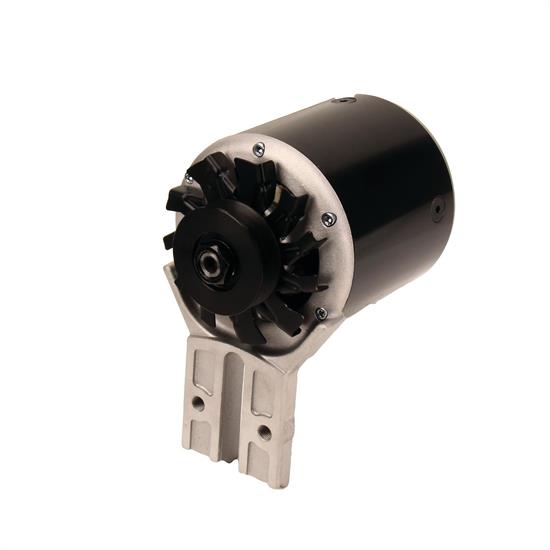

Powermaster 82013 Shorty PowerGEN 1939-48 Ford Alternator, 12-Volt

$166 Off

#25582013

Powermaster 82013 Shorty PowerGEN 1939-48 Ford Alternator, 12-Volt

Designed to be 1.5" shorter than standard generator
Specifically designed for the 1939-1941 Ford engines
Puts out 65 amp at idle, 75 amp when cruising, and 90 amp top end

$432.99

/each

In Stock

$598.75

Save $165.76

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

One Wire Alternator, Generator Alternator Case Style

Designed to be 1.5" shorter than standard generator
Specifically designed for the 1939-1941 Ford engines
Puts out 65 amp at idle, 75 amp when cruising, and 90 amp top end
Features an easy one-wire hookup and come with a 5/8" wide belt pulley
Comes with a black powder coat finish and stock-appearing mounting bracket

See more details

Key Specs

MFG. Part #	82013
One Wire Alternator	Yes
Alternator Amperage	90 amp
Alternator Finish	Powder Coated
Pulley Style	V-belt

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Powermaster 82013 Details

If you like traditional looks and reliable, modern performance, you’ll love this cool Flathead "Shorty" 1-wire alternator. It has the look of an original generator, but is really a 12-volt, negative-ground alternator that produces 65 amps at idle and 75 amps going down the road. This model is designed to fit 1939-1948 Ford & Mercury Cars and Ford Trucks with Flathead V8s and features a simple one-wire hookup.

We offer this one wire alternator in a black powder coat finish with included stock-appearing mounting brackets (the stock fan carrier bolts to that bracket) and pulleys that accept wide 5/8” belts.

1.5" shorter than standard generator
Easy one-wire hookup
65 amp idle, 75 amp cruise, 90 amp top end
5/8" wide belt pulley included
If using 3/8" wide belt, order pulley # 910-67178
Uses stock-appearing bracket and fan carrier bolts
Multiple carb apps, (1) 4 barrel carb

Charts

PowerGEN 82013 Instructions (PDF)

Powergen Cutaway View (JPG)

Guides & Documents

Alternators Installation Instructions (25582013)

Installation Instructions (Powermaster)

Warranty (Powermaster)

Technical Information (Powermaster)

Warranty Information

Do not send the unit back to Speedway Motors unless you have called Powermaster and talked to their Tech Department while the unit was still on the vehicle so they could help you troubleshoot the problem.

CA Prop 65

Powermaster 82013 Specifications

KEY SPECS
MFG. Part #	82013
Brand	Powermaster
One Wire Alternator	Yes
Alternator Amperage	90 amp
Alternator Finish	Powder Coated
Pulley Style	V-belt
Belt Type	V-Belt

GENERAL
Alternator Case Style	Generator
Voltage Required	12-Volt
Regulator	Internal
Regulator Style	Internal
Regulator Included	Yes
Alternator Pulley Included	Yes
Belt Width	0.625"
Alternator Brackets Included	Yes
Overall Length	7.5"
Color	Black
Sold in Quantity	Each
Notes	Made in the USA
GTIN Code	692209016380
Belt Included	No
Coating Type	Powdercoated

Ratings & Reviews

Be the first to write a review.

Questions & Answers

2 Questions • 2 Answers

Sort Questions

What the length of the unit? Do you measure from the pulley bolt to the rear housing, or? I'm running high-rise w/ dual 97 carbs and want to make sure the rear of the unit does not run into the front carb float bowl.

by Dutch

• 3 years ago

1 answer

View Answer

if you replace your original generator with this, what do you do about a fan? thank you

by sul

• 9 years ago

1 answer

View Answer

2 of 2 questions shown

Fitment

1932 Ford 1 Ton Pickup

221 Ford Flathead V8

1933-1936 Ford 1 Ton Pickup

Ford Flathead V8 17 Stud 221 18
Ford Flathead V8 21 Stud 221 40

1937-1938 Ford 1 Ton Pickup

221 Ford Flathead V8

1939-1940 Ford 1 Ton Pickup

239 Ford Flathead V8

1941-1947 Ford 1 Ton Pickup

221 Ford Flathead V8
239 Ford Flathead V8

1932-1938 Ford 1/2 Ton Pickup

221 Ford Flathead V8

1939-1947 Ford 1/2 Ton Pickup

221 Ford Flathead V8
239 Ford Flathead V8

1932-1938 Ford 3/4 Ton Pickup

221 Ford Flathead V8

1939-1947 Ford 3/4 Ton Pickup

221 Ford Flathead V8
239 Ford Flathead V8

1952 Ford Country Sedan

239 Ford Flathead V8

1952 Ford Country Squire

239 Ford Flathead V8

1939-1940 Ford Deluxe

221 Ford Flathead V8
239 Ford Flathead V8

1946-1948 Ford Deluxe

221 Ford Flathead V8
239 Ford Flathead V8

1948 Ford F1

221 Ford Flathead V8
239 Ford Flathead V8

1948 Ford F2

221 Ford Flathead V8
239 Ford Flathead V8

1948 Ford F3

221 Ford Flathead V8
239 Ford Flathead V8

1932 Ford Model 18

221 Ford Flathead V8

1942 Ford Model 21 A Deluxe

221 Ford Flathead V8
239 Ford Flathead V8

1933-1934 Ford Model 40

221 Ford Flathead V8

1934 Ford Model 40 A

221 Ford Flathead V8

1933 Ford Model 46

221 Ford Flathead V8

1935 Ford Model 48

221 Ford Flathead V8

1935 Ford Model 50

221 Ford Flathead V8

1936 Ford Model 67

221 Ford Flathead V8

1936 Ford Model 68

221 Ford Flathead V8

1937 Ford Model 74

221 Ford Flathead V8

1937 Ford Model 78

221 Ford Flathead V8

1938 Ford Model 81 A

221 Ford Flathead V8

1938 Ford Model 82 A

221 Ford Flathead V8

1938 Ford Model 85

221 Ford Flathead V8

1932-1934 Ford Model BB

221 Ford Flathead V8

1940 Ford Pickup

221 Ford Flathead V8

1932-1938 Ford Sedan Delivery

221 Ford Flathead V8

1939-1942 Ford Sedan Delivery

221 Ford Flathead V8
239 Ford Flathead V8

1946-1947 Ford Sedan Delivery

221 Ford Flathead V8
239 Ford Flathead V8

1942 Ford Super Deluxe

221 Ford Flathead V8
239 Ford Flathead V8

1946-1948 Ford Super Deluxe

221 Ford Flathead V8
239 Ford Flathead V8

1946-1948 Mercury Mercury

221 Ford Flathead V8
239 Ford Flathead V8

1941 Mercury Series 19A

239 Ford Flathead V8

1942 Mercury Series 29A

221 Ford Flathead V8
239 Ford Flathead V8

1939 Mercury Series 99A

239 Ford Flathead V8

1940 Mercury Series O9A

239 Ford Flathead V8
