Product Summary

Universal Fit, One Wire Alternator, Natural, Natural

    Key Specs

    MFG. Part #8174
    One Wire AlternatorYes
    Alternator FinishNatural

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

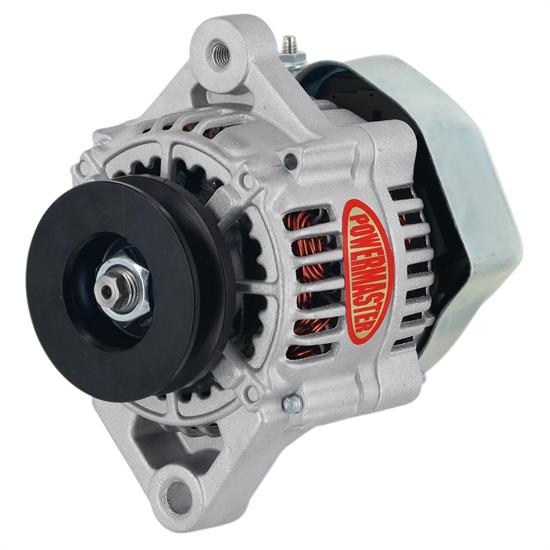

    Powermaster 8174 Details

    XS Volt is a powerful internal regulating system. These one-wire alternators offer the highest stability available for modern electrical systems. Available in Delco CS and Denso style alternators, these units offer a number of features including digital control, response time in milliseconds, compared to seconds for analog regulators, adjustable voltage, adjustable between 13.5 and 18.5 volts and great for 12 volt or 16 volt systems. Also features powerful, reliable internals with short circuit protection and loss of ground protection in a sealed, vibration resistant housing. One wire operation is easy to connect and turns on and off with the engine. The XS Volt gives the user a great deal of control. It also provides many benefits even without adjustment. With its digital regulator, lightning-quick response time, and the stability a digital system provides, many users have found their electronic components function better, even benefiting the daily driver.

    • Powermaster 8174
    • Race Style
    • XS Volt
    • 100mm
    • Pulley included
    • 35A at idle, 75A top end
    • True one-wire hookup
    • Natural finish


    Powermaster 8174 Specifications

    MFG. Part #8174
    One Wire AlternatorYes
    Alternator FinishNatural
    Alternator Case StyleDenso
    Alternator Amperage75 amp
    Regulator IncludedYes
    Alternator Pulley IncludedYes
    Alternator Brackets IncludedNo
    Sold in QuantityEach
    NotesFits 5.400 in. mount spacing. Adjustable output range.
    GTIN Code692209023135
    Belt IncludedNo
    Pulley StyleV-belt
