Powermaster 8-722 SB Chevy 75 Amp Mini Alternator w/Serp-Belt Kit
1 Review
|
Ask a Question
- Has a true 1-wire hookup with set voltage of 14.7
- Engineered to provide all the electrical punch you need, while saving weight and space
- Will work with small block Chevy engines with the short water pumps
See More
$389.99
each
In Stock
Order soon, only 2 left in stock!
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, One Wire Alternator, Powder Coated
- Has a true 1-wire hookup with set voltage of 14.7
- Engineered to provide all the electrical punch you need, while saving weight and space
- Will work with small block Chevy engines with the short water pumps
- Designed to mount on either side of the engine
- The operating temp range is between -40°C to 150°C and weighs only 8.885 lbs.
See more details
Key Specs
MFG. Part # | 8-722 |
Brand | Powermaster |
One Wire Alternator | Yes |
Voltage Output | 14.7 Volts |
Alternator Finish | Powder Coated |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyPowermaster 8-722 Details
Powermaster 8-722 Details

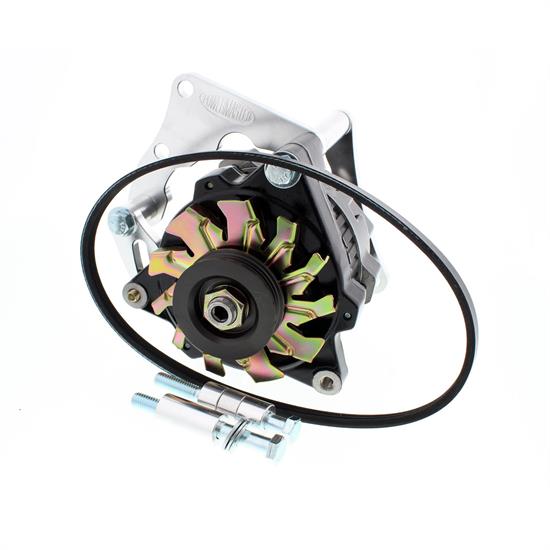

Powermaster provides all the electrical punch you need, while saving weight and space with these racing alternator kits. One-wire unit for small block Chevy using short pump only. Mounts on either side of engine. Cranks out 14.7 volts and 75 amps. Kit includes mini alternator, brackets, bolts, spacers, drive pulley and belt.
- True 1-wire hookup with set voltage of 14.7
- High output to weight ratio
- Excellent idle output
- Gold battery post
- Operating Range: -40°C to 150°C
- Max RPM: 18,000
- Weight: 8.885 lbs.
NOTE: Mini alternators are NOT IMCA approved for Hobby Stock or Sport Mod Divisions.
Warranties
Powermaster's warranty is one year from the date of purchase on all street rod components, and 90 days for any component use for an off road or race application.
Powermaster will provide technical support regarding warranty claims and inquiries directly to the purchaser to help resolve any warranty claims or necessary technical support for warranty resolution. Component or components can be returned to Speedway Motors as long as the product is still under warranty.
All customer service inquiries pertaining to warranty and defect claims are to be handled by Speedway Motors if under one year street or 90 days race. If the product is out of warranty please contact Powermaster direct to discuss their repair and return program.
Powermaster 8-722 Specifications
Powermaster 8-722 Specifications
KEY SPECS | |
---|---|
MFG. Part # | 8-722 |
Brand | Powermaster |
One Wire Alternator | Yes |
Voltage Output | 14.7 Volts |
Alternator Finish | Powder Coated |
GENERAL | |
Alternator Case Style | Denso |
Alternator Amperage | 75 amp |
Voltage Required | 12-Volt |
Regulator Style | Internal |
Regulator Included | Yes |
Alternator Pulley Included | Yes |
Belt Type | Serpentine |
Belt Width | 0.375" |
Alternator Brackets Included | Yes |
Color | Black |
Sold in Quantity | Kit |
GTIN Code | 692209004219 |
Belt Included | Yes |
Pulley Style | Serpentine |
