Powermaster 8-57529-111 CS130 Chrysler Upgrade Alternator, Black

-23%

#255857529111

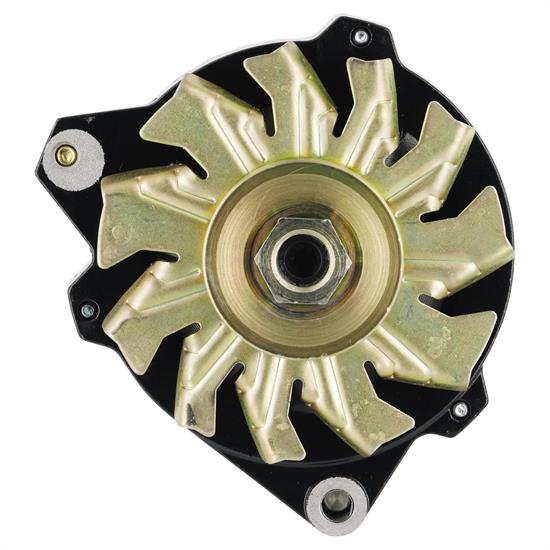

Powermaster 8-57529-111 CS130 Chrysler Upgrade Alternator, Black

Name: Powermaster 8-57529-111 CS130 Chrysler Upgrade Alternator, Black
Brand: Powermaster
SKU: 255857529111
Price: 241.99 USD
Availability: InStock

Write a Review

Ask a Question

$241.99

/each

Factory Shipped

$316.25

Save $74.26

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

One Wire Alternator, GM CS130 Alternator Case Style

See more details

Key Specs

MFG. Part #	8-57529-111
One Wire Alternator	Yes
Alternator Amperage	140 amp
Alternator Finish	Powder Coated
Pulley Style	V-belt

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Installation Details

Alternators Installation Instructions (255857529111)

Installation Instructions (Powermaster)

Installation Tips

This product is made in America, 100% tested before it left the factory and works as intended. TOP 3 Items to check if you are experiencing problems:

Wired incorrectly
Poor ground due to paint, corrosion, excessive heat
Loose belt on the pulley. A belt may slip under load if it isn’t sufficiently tight

Do not send the unit back to Speedway Motors unless you have called Powermaster and talked with their Tech Department while the unit was still on the vehicle. 800-323-5102.

This product is made in America, 100% tested before it left the factory and works as intended. TOP 3 Items to check if you are experiencing problems:

Wired incorrectly
Poor ground due to paint, corrosion, excessive heat
Loose belt on the pulley

A belt may slip under load if it isn't sufficiently tight. Do not send the unit back to Speedway Motors unless you have called Powermaster and talked with their Tech Department while the unit was still on the vehicle. 800-323-5102.

Powermaster 8-57529-111 Details

Powermaster Chrysler Upgrade Alternators feature a huge amp increase at both idle and top end. Upgrade alternators have the options for 1 wire or OE hookup. Fits existing brackets, spacer modification may be required.

Powermaster 8-57529-111
Chrysler Upgrade CS130 w/ external fan
Small block only
1V pulley
95A at idle, 140A top end
Black finish
Fits 318/340/360

Charts

Installation Instructions (PDF)

Warning (PDF)

GM CS Series Instructions (PDF)

Guides & Documents

Alternators Installation Instructions (255857529111)

Alternators Technical Information (255857529111)

Selecting the Right Wire Size for Automotive Alternator to Battery Applications

Alternators Installation Instructions (255857529111)

Alternators Technical Information (255857529111)

Alternators Warranty (255857529111)

Installation Instructions (Powermaster)

Warranty (Powermaster)

Technical Information (Powermaster)

Warranty Information

Do not send the unit back to Speedway Motors unless you have called Powermaster and talked to their Tech Department while the unit was still on the vehicle so they could help you troubleshoot the problem.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

Powermaster 8-57529-111 Specifications

KEY SPECS
MFG. Part #	8-57529-111
Brand	Powermaster
One Wire Alternator	Yes
Alternator Amperage	140 amp
Alternator Finish	Powder Coated
Pulley Style	V-belt

GENERAL
Alternator Case Style	GM CS130
Voltage Required	12-Volt
Regulator Included	Yes
Alternator Pulley Included	Yes
Alternator Pulley Grooves	1 V-groove
Alternator Brackets Included	No
Color	Black
Sold in Quantity	Each
Notes	This is a left offset alternator. Includes 1-groove alternator pulley with fan.
GTIN Code	692209022558
Belt Included	No
Coating Type	Powdercoated
