Product Summary

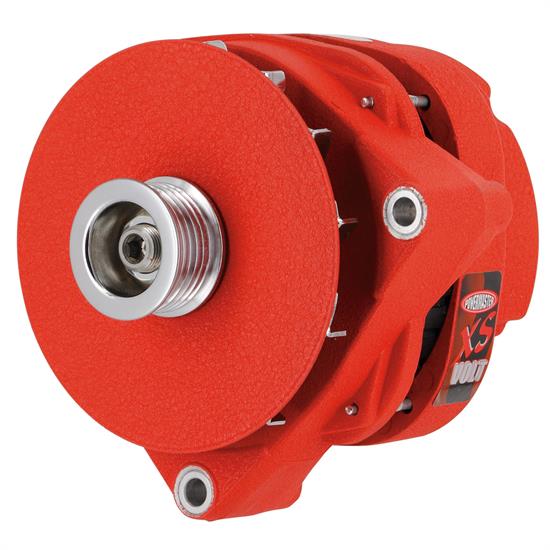

Many Engines, One Wire Alternator, Serpentine Belt Type

    Key Specs

    MFG. Part #482038SPL
    BrandPowermaster

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Details

    Newly designed voltage regulator. Change voltage adjustment while running. Power saving mode, two operating levels. Indicator light drive. Entire circuit sealed in epoxy.

    • XS Volt Hi Amp Alternator
    • Special CS144
    • 300 Amp
    • Large Case
    • Offset Mount
    • Red Wrinkle

    Application

    Buick 204ci V6
    Buick 231ci V6
    Chevy 2.8ci 60-Degree V6
    Chevy 262ci 90-Degree V6
    Chevy 292ci Inline Six
    Chevy 3.1ci 60-Degree V6
    Chevy 3.4ci 60-Degree V6
    Chevy 305ci Small Block V8
    Chevy 305ci Small Block V8
    Chevy 350ci Small Block V8
    Chevy 350ci Small Block V8
    Chevy 454ci Big Block V8
    Chevy 454ci Big Block V8
    Chevy L20ci LS V8
    Chevy L33ci LS V8
    Chevy L59ci LS V8
    Chevy L76ci LS V8
    Chevy LC9ci LS V8
    Chevy LH6ci LS V8
    Chevy LH8ci LS V8
    Chevy LM4ci LS V8
    Chevy LM7ci LS V8
    Chevy LMGci LS V8
    Chevy LQ4ci LS V8
    Chevy LQ9ci LS V8
    Chevy LR4ci LS V8
    Chevy LS1ci LS V8
    Chevy LS2ci LS V8
    Chevy LS6ci LS V8
    Chevy LY2ci LS V8
    Chevy LY5ci LS V8
    Chevy LY6ci LS V8
    Pontiac 151ci Iron Duke Inline Four
    Pontiac 151ci Iron Duke Inline Four

    Charts

    Specifications

    KEY SPECS
    MFG. Part #482038SPL
    BrandPowermaster
    GENERAL
    One Wire AlternatorYes
    Belt TypeSerpentine
    Alternator Case StyleGM CS144
    Alternator Amperage300 amp
    Voltage Required12-16 Volt
    Alternator FinishPowder Coated
    ColorRed
    Alternator Pulley IncludedYes
    Alternator Brackets IncludedNo
    Sold in QuantityEach
    GTIN Code692209010852
    Belt IncludedNo
    Pulley StyleSerpentine
    Regulator StyleInternal
    Regulator IncludedYes
