Product Summary

194, 216, 230, 235, 250, 261, 292, One Wire Alternator

    Key Specs

    MFG. Part #182023
    One Wire AlternatorYes
    Alternator FinishChrome

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Powermaster 182023 Details

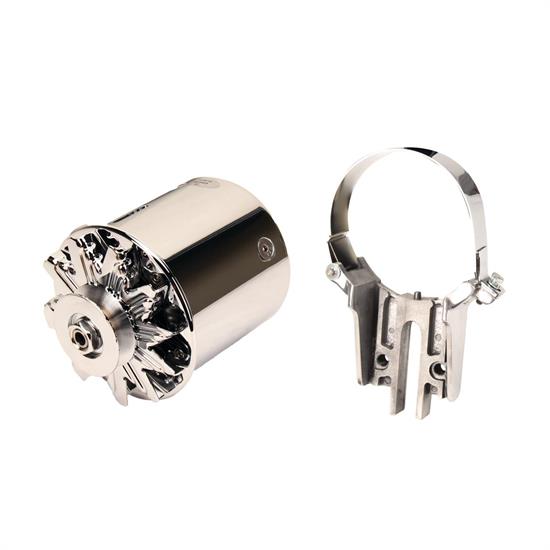

    If you like traditional looks and reliable, modern performance, you’ll love this cool Flathead "Shorty" 1-wire alternator. It has the look of an original generator, but is really a 12-volt, negative-ground alternator that produces 65 amps at idle and 75 amps going down the road. This model is designed to fit 1949-1953 Ford & Mercury Cars and Ford Trucks with Flathead V8s and features a simple one-wire hookup.

    We offer this one wire alternator in a beautiful chrome finish with included stock-appearing mounting brackets (the stock fan carrier bolts to that bracket) and pulleys that accept wide 5/8” belts.

    • 1.5" shorter than standard generator
    • Easy one-wire hookup
    • 65 amp idle, 75 amp cruise, 90 amp top end
    • 5/8" wide belt pulley included
    • If using 3/8" wide belt, order pulley # 91067178
    • Uses stock-appearing bracket and fan carrier bolts
    • Multiple carb apps, (1) 4 barrel carb



    Powermaster's warranty is one year from the date of purchase on all street rod components, and 90 days for any component use for an off road or race application.

    Powermaster will provide technical support regarding warranty claims and inquiries directly to the purchaser to help resolve any warranty claims or necessary technical support for warranty resolution. Component or components can be returned to Speedway Motors as long as the product is still under warranty.

    All customer service inquiries pertaining to warranty and defect claims are to be handled by Speedway Motors if under one year street or 90 days race. If the product is out of warranty please contact Powermaster direct to discuss their repair and return program.

    Powermaster 182023 Specifications

    MFG. Part #182023
    One Wire AlternatorYes
    Alternator FinishChrome
    Alternator Case StyleGenerator
    Alternator Amperage90 amp
    Voltage Required12-Volt
    Regulator StyleInternal
    Regulator IncludedYes
    Alternator Pulley IncludedYes
    Belt TypeV-Belt
    Belt Width0.625"
    Alternator Brackets IncludedYes
    Overall Length8.78"
    Sold in QuantityEach
    NotesThis alternator is 1.5 in. shorter than the stock generator and features the Ford strap mount design. Includes a 5/8 in. width pulley.
    GTIN Code692209016113
    Belt IncludedNo
    Pulley StyleV-belt
    Coating TypePlated
