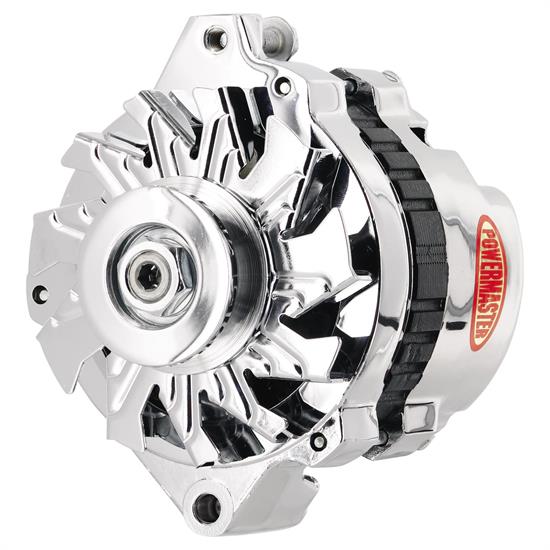

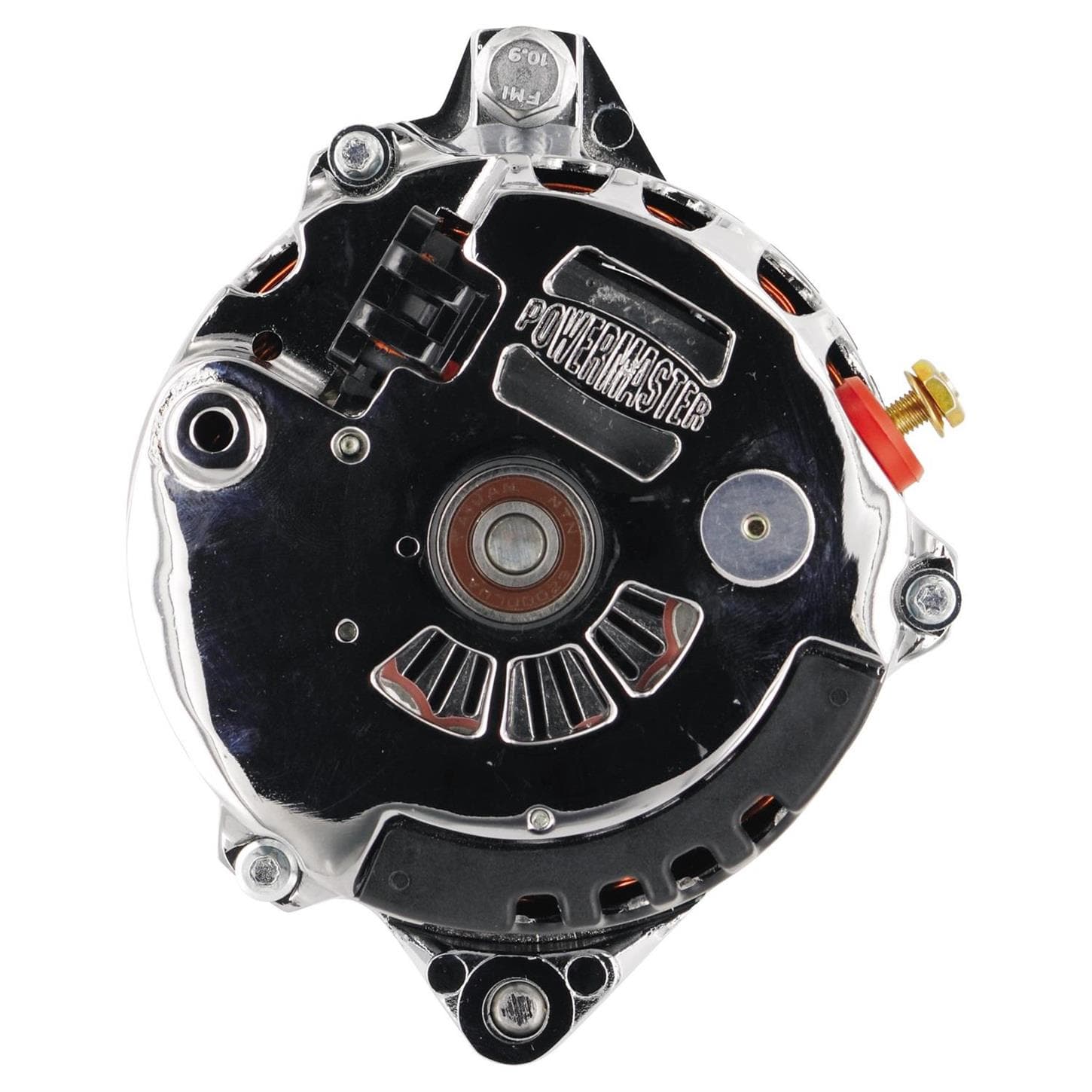

Powermaster 174011 Street Alternator, 105 Amps, V-belt, 12V, GM

Name: Powermaster 174011 Street Alternator, 105 Amps, V-belt, 12V, GM
Brand: Powermaster
SKU: 255174011
Price: 215.99 USD
Availability: InStock

Write a Review

Ask a Question

$215.99

each

Factory Shipped

This part will be shipped by the manufacturer. We estimate this item will ship on or before June 9th.

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

305, 350, 454, 292, 262, 2.8, 151, One Wire Alternator

See more details

Key Specs

MFG. Part #	174011
Brand	Powermaster
Alternator Amperage	105 amp

See more specs

Need To Know

This Product Will Ship Free

Shipping Policies & FAQs

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Powermaster 174011 Details

Powermaster has a variety of alternators available for various applications.

Alternator
CS130
105 Amp
w/Side Battery Post/One Wire Voltage Regulator
Chrome

Application

Chevy 2.8ci 60-Degree V6
Chevy 262ci 90-Degree V6
Chevy 292ci Inline Six
Chevy 305ci Small Block V8
Chevy 305ci Small Block V8
Chevy 350ci Small Block V8
Chevy 350ci Small Block V8
Chevy 454ci Big Block V8
Chevy 454ci Big Block V8
Chevy 454ci Big Block V8
Pontiac 151ci Iron Duke Inline Four

Guides & Documents

Selecting the Right Wire Size for Automotive Alternator to Battery Applications

CA Prop 65

Powermaster 174011 Specifications

KEY SPECS
MFG. Part #	174011
Brand	Powermaster
Alternator Amperage	105 amp

GENERAL
Speedway Motors Catalog Part #	255-174011
One Wire Alternator	Yes
Alternator Case Style	GM CS130
Voltage Required	12-Volt
Alternator Finish	Chrome
Color	Chrome
Alternator Pulley Included	Yes
Alternator Brackets Included	No
Sold in Quantity	Each
Notes	This is a center offset alternator. Straight mount, 6.14 in. alternator. Battery post is located on the side.
GTIN Code	692209012269
Belt Included	No
Pulley Style	V-belt
Regulator Style	Internal
Regulator Included	Yes
Coating Type	Plated
