#580441
Posies Super Slide Springs D441 47-54 Chevy/GM Pickup Front Springs
14 Reviews
|
16 Questions
- It includes 2 leaves per side that are 1-7/8" wide
- Specifically designed for the 1947-1954 Chevy/GM pickups
- Engineered to lower your vehicle 3" when compared to stock suspension
See More
$379.99
pair
On Backorder
This part is Backordered. We estimate this item will ship on or before June 15th.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Front Position, 37.88" Length Eye to Eye, Natural
- It includes 2 leaves per side that are 1-7/8" wide
- Specifically designed for the 1947-1954 Chevy/GM pickups
- Engineered to lower your vehicle 3" when compared to stock suspension
- Center pin to center standard eye (front shackle end) measures 18-3/4"
- The unique 2-leaf tapered design offers a better ride and provides a 100% increase in safety over mono-leaf springs
See more details
Key Specs
| MFG. Part # | D441 |
| Brand | Posies Super Slide Springs |
| Position | Front |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyPosies Super Slide Springs D441 Details
Posies Super Slide Springs D441 Details

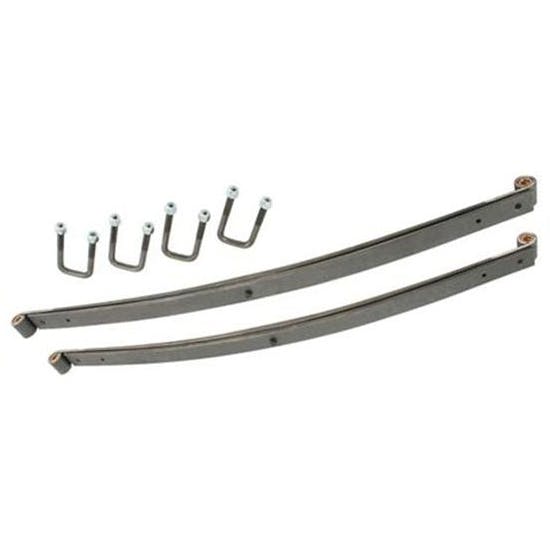

These Dual-Flex front springs by Posies lower your classic Chevy 1/2-ton pickup 3" more than a set of new replacement springs. The unique 2-leaf tapered design offers a better ride and provides a 100% increase in safety over mono-leaf springs.
Includes new U-bolts for easy installation.
- Center pin to center standard eye (front shackle end) 18-3/4"
- Center pin to center reverse eye (rear stationary mount) 19-1/8"
- 39-1/8" overall length, 37-7/8" eye to eye length
Note: If used in conjunction with a dropped front axle, you may encounter bump steer and tie rod issues.
Guides & Documents
Posies Super Slide Springs D441 Specifications
Posies Super Slide Springs D441 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | D441 |
| Brand | Posies Super Slide Springs |
| Position | Front |
| GENERAL | |
| Speedway Motors Catalog Part # | 580-441 |
| Leaf Spring Eye Type | Reverse/Standard Eye Combo |
| Length Eye to Eye | 37.88" |
| Leaf Spring Width | 1-7/8 Inch |
| Suspension Height Adjustment | 3 Inch Lowered |
| Spring Height (Underside) | 3.25" |
| Number of Leafs | 2 |
| Material Type | Steel |
| Finish | Natural |
| Sold in Quantity | Pair |
| Notes | Lowers the truck 3" versus stock springs. If used with a dropped axle, bump steer and tie rod issues may be a problem. Includes new shorter U-bolts. |
