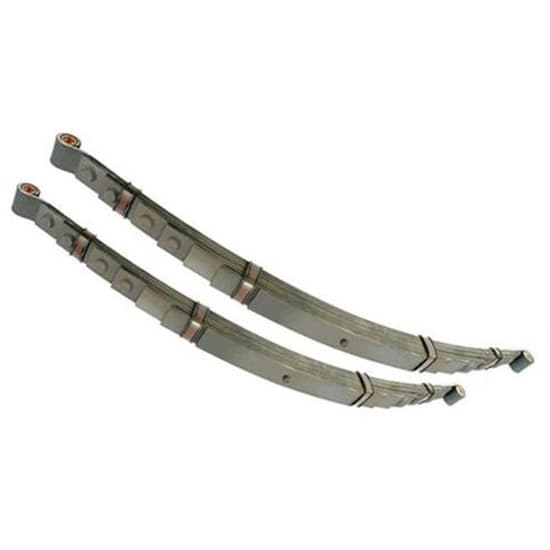

Posies Super Slide Springs 440 47-54 Chevy/GMC Pickup Rear Springs
Rear Position, Reverse/Standard Eye Combo Leaf Spring Eye Type, 54" Length Eye to Eye, Natural
- Specifically designed for the 1947-1954 Chevy/GM pickup
- Will lower the ride height 3" compared to stock
- Springs incorporate moly-nylon buttons that reside in die-formed pockets
- Eye to eye measurement is 54-1/8"
- Each side has a total of 8 leaved and is designed to provide a much smoother ride
These multi-leaf rear springs by Posies lower your classic Chevy 3100 1/2-ton pickup 3" more than a set of stock replacement springs. Super Slide springs incorporate moly-nylon buttons that reside in die-formed pockets at the tips of the spring leave. Replace your 50 year old stock springs with these new, computer-designed leaf springs for a much smoother ride.
Factory spec spring eye bushings come with springs. Shackles, shackle bolts and U-bolts sold separately. For use with the original 1947-54 Chevy rear axle as these are not applicable to be used with a newer model rear axle assembly.
Note: For use with stock axle. This will ((not)) fit the 1955 First Series Truck application (or any application with a round radius u-bolt).
- 1-3/4" Wide, 54"-1/8" eye to eye length
- Center bolt to front eye center is 25-1/8"
- Center bolt to rear eye center is 29"
- Front eye type is standard
- Rear eye type is reversed
- 8 Leaf spring
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
