#5804148
$457.99
/each
In Stock
Order soon, only 1 left in stock!
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Rear Position, Reverse Eye Leaf Spring Eye Type
Need help?
855.313.9176Quick and Easy Returns

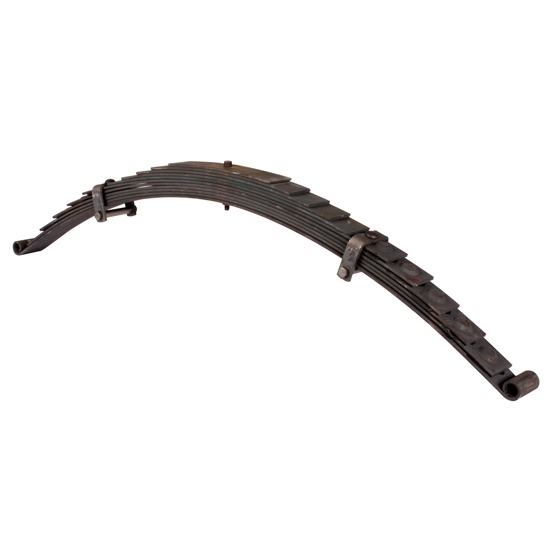

Return PolicyThis Posies Super Slide transverse rear leaf spring features a domed pocket at the end of each spring leaf which houses a moly-nylon button. The buttons reduce friction between the spring leaves resulting in a smooth, comfortable ride. This spring is computer designed to offer a lowered stance while maintaining proper load capacities.
Specs
Guides & Documents
| KEY SPECS | |
|---|---|
| MFG. Part # | R46L |
| Brand | Posies Super Slide Springs |
| Position | Rear |
| GENERAL | |
| Overall Thickness | 2.31" |
| Leaf Spring Eye Type | Reverse Eye |
| Length Eye to Eye | 45" |
| Leaf Spring Width | 2-1/4 Inch |
| Suspension Height Adjustment | 2-1/2 Inch Lowered |
| Number of Leafs | 11 |
| Material Type | Steel |
| Finish | Natural |
| Sold in Quantity | Each |
| Overall Height | 10.13" |
| Spring Eye I.D. | 0.75" |
3 Questions • 3 Answers
will this spring fit into a stock model A rear cross member? The frame will be Z'd and spring will be inside body as original but not exactly the same location . Can I use mounting brackets 916-45108? I have sufficient length on my 3"10 bolt rear end. Total weight on the rear will not exceed 500 lbs. Or would you recommend the medium 910-43106 ? Please advise
by dave
• 10 years ago
1 answer
View Answer
Will this spring work on 1948-1950 Ford f1 truck...stock rearend.
by junklover
• 10 years ago
1 answer
View Answer
Free arch Can you tell me the free arch measurement of this spring? Thanks
by Tone
• 12 years ago
1 answer
View Answer
3 of 3 questions shown
1946-1948 Ford Deluxe
1942 Ford Model 2 GA Special
1942 Ford Model 21 A Deluxe
1946-1947 Ford Sedan Delivery
1942-1948 Ford Super Deluxe
