Painless 10104 21-Circuit GM Pickup Wiring Harness/Switch Kit
Painless 10104 21-Circuit GM Pickup Wiring Harness/Switch Kit

Painless 10104 21-Circuit GM Pickup Wiring Harness/Switch Kit

Universal Fit, 21 Number of Circuits, Fuse Block Included, Compatible with GM Column

3 Reviews | 0 Answered Questions
In Stock
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Limited Qty
Select your vehicle to verify fitment.
Select Vehicle
Painless 10104 21-Circuit GM Pickup Wiring Harness/Switch Kit
Painless 10104 21-Circuit GM Pickup Wiring Harness/Switch Kit
Painless 10104 21-Circuit GM Pickup Wiring Harness/Switch Kit
Painless 10104 21-Circuit GM Pickup Wiring Harness/Switch Kit
Painless 10104 21-Circuit GM Pickup Wiring Harness/Switch Kit
Painless 10104 21-Circuit GM Pickup Wiring Harness/Switch Kit
Painless 10104 21-Circuit GM Pickup Wiring Harness/Switch Kit
Painless 10104 21-Circuit GM Pickup Wiring Harness/Switch Kit
Painless 10104 21-Circuit GM Pickup Wiring Harness/Switch Kit
Painless 10104 21-Circuit GM Pickup Wiring Harness/Switch Kit
Painless 10104 21-Circuit GM Pickup Wiring Harness/Switch Kit
Painless 10104 21-Circuit GM Pickup Wiring Harness/Switch Kit
Painless 10104 21-Circuit GM Pickup Wiring Harness/Switch Kit
Painless 10104 21-Circuit GM Pickup Wiring Harness/Switch Kit
Painless 10104 21-Circuit GM Pickup Wiring Harness/Switch Kit
Painless 10104 21-Circuit GM Pickup Wiring Harness/Switch Kit
X
Painless 10104 21-Circuit GM Pickup Wiring Harness/Switch Kit
Painless 10104 21-Circuit GM Pickup Wiring Harness/Switch Kit
Painless 10104 21-Circuit GM Pickup Wiring Harness/Switch Kit
Painless 10104 21-Circuit GM Pickup Wiring Harness/Switch Kit
Painless 10104 21-Circuit GM Pickup Wiring Harness/Switch Kit
Painless 10104 21-Circuit GM Pickup Wiring Harness/Switch Kit
Painless 10104 21-Circuit GM Pickup Wiring Harness/Switch Kit
Painless 10104 21-Circuit GM Pickup Wiring Harness/Switch Kit
Painless 10104 21-Circuit GM Pickup Wiring Harness/Switch Kit
Painless 10104 21-Circuit GM Pickup Wiring Harness/Switch Kit
Painless 10104 21-Circuit GM Pickup Wiring Harness/Switch Kit
Painless 10104 21-Circuit GM Pickup Wiring Harness/Switch Kit
Painless 10104 21-Circuit GM Pickup Wiring Harness/Switch Kit
Painless 10104 21-Circuit GM Pickup Wiring Harness/Switch Kit
Zoomed In Image
Part # 9109535
Save 40%
$362.99
$611.95
kit
Call to Order
Add to Buildlist
Compare
Details
What's In The Kit
Reviews
Q&A
Videos & Articles
  • The exact kit featured on our 1952 Chevy pickup as part Classic Truck's Week to Wicked build
  • Features many pre-wired connections and are color coded to make installation a snap
  • Designed for non-fuel injected engine and a non-electronic transmission applications
  • Instrument panel lighting and gauges includes wiring for fuel gauge, oil gauge, tachometer, temperature gauge, and voltmeter
  • Comes with a GM engineered fuse block & Painless mounting bracket, GM turn signal connectors, pre-wire plugs for the headlights, and headlight, ignition, and dimmer switches

Build Your Kit

You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Next
Add to Cart

Details

Number of Circuits:
21
Fuse Block Included:
Yes
Compatible with GM Column:
Yes
Ignition Key Location:
Dash
Fuse Style:
ATO/ATC
Sold in Quantity:
Kit
Notes:
Includes wiring harnesses, all connectors, brackets, flashers, and zip ties.
Harness Length:
Extra-Long

Info

As featured on our 1952 Chevy Pickup for Classic Truck’s Week to Wicked. Watch the transformation here!

Kit Includes:

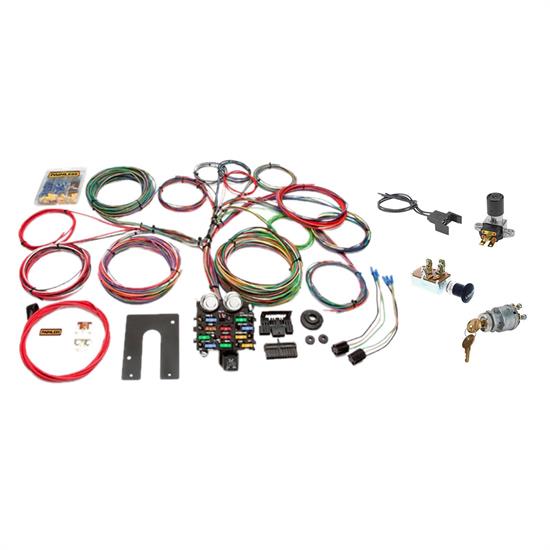

  • (1) Painless Wiring 10104 21 Circuit GM Pickup Chassis Wiring Harness
  • (1) Dimmer Switch Pigtail Connector
  • (1) Dimmer Switch, Floor Mount, Chrome
  • (1) Speedway Universal Headlight Switch
  • (1) Speedway Universal 4-Way Ignition Switch with Keys



Painless Wiring 10104 21 Circuit GM Pickup Chassis Wiring Harness

Features:

  • Customizable 21 circuit - 12 fuse w/ horn relay and Maxi Fuse pickup chassis wiring harness
  • Made from Painless Performance
  • You'll find that the ample wire lengths make this kit especially suited for trucks with long beds and extended cabs
  • These Painless wiring harnesses feature many pre-wired connections and are color coded to make installation a snap
  • Application intended for non-fuel injected engine and a non-electronic transmission

Included with this harness are the following parts:

  • GM engineered fuse block & Painless mounting bracket
  • GM turn signal connectors
  • Pre-wire plugs for the headlights and a dimmer switch

Includes Circuits for:

  • A/C & Heat
  • Accessory / Cigarette Lighter
  • Backup Lights
  • Brake Lights
  • Charging
  • Dome Light
  • Electric Choke
  • Emergency Flashers
  • Fan Relay Activation Power
  • Fused Power Source
  • Headlights
  • Horn (Relay)
  • Ignition Coil
  • Instrument Panel Lighting and Gauges ( Included wires for: fuel gauge, oil gauge, tachometer, temperature gauge, and voltmeter)
  • Park Lights
  • Radio/Clock (Constant and Switched)
  • Starting
  • Tail Lights
  • Third Brake Light
  • Turn Signals
  • Wipers

Connectors included:

  • GM Steering Column Turn Switch
  • Two Headlight Pigtails
  • 10SI & 12 SI Alternator
  • Dimmer Switch



Dimmer Switch Pigtail Connector

  • Use this pigtail connector with our universal dimmer switch (91064054)
  • Has three 16AWG wire leads 12" long



Dimmer Switch, Floor Mount, Chrome

  • Floor mount dimmer switch
  • Overall height of 2.125"
  • Center to center measurement is 1.750"
  • Has crimp-style terminals
  • Available in a chrome finish



Speedway Universal Headlight Switch

  • Universal 3-position headlight switch features Off, Park, and Headlight/tailight
  • Screw type terminals
  • 7/16" mounting hole
  • Has a 15 amp per circuit rating at 12 volts



Speedway Universal 4-Way Ignition Switch with Keys

  • Universal 4 position ignition switch features ACC, OFF, IGN/ACC, and IGN/START
  • Screw type terminals
  • 3/4" mounting hole and 2 keys included
  • Requires 2-3/8" of space behind dash for clearance
  • Fits 3/4" to 7/8" hole
  • Terminals: 4 screw
  • Actuators: coded tumbler lock, 2 keys
  • Sealed terminal insulator: no
  • O-ring seal in stem: no
  • Ground terminal: no
  • Mounting stem: 3/4"-20
  • Case material: diecast zinc
  • Mounting panel thickness: 3/8"
  • Amperage ratings (current ratings at 12V DC)
    •  Accessory: 10A
    • Ign/Run: 10A
    • Start: 5A
    • test test test
