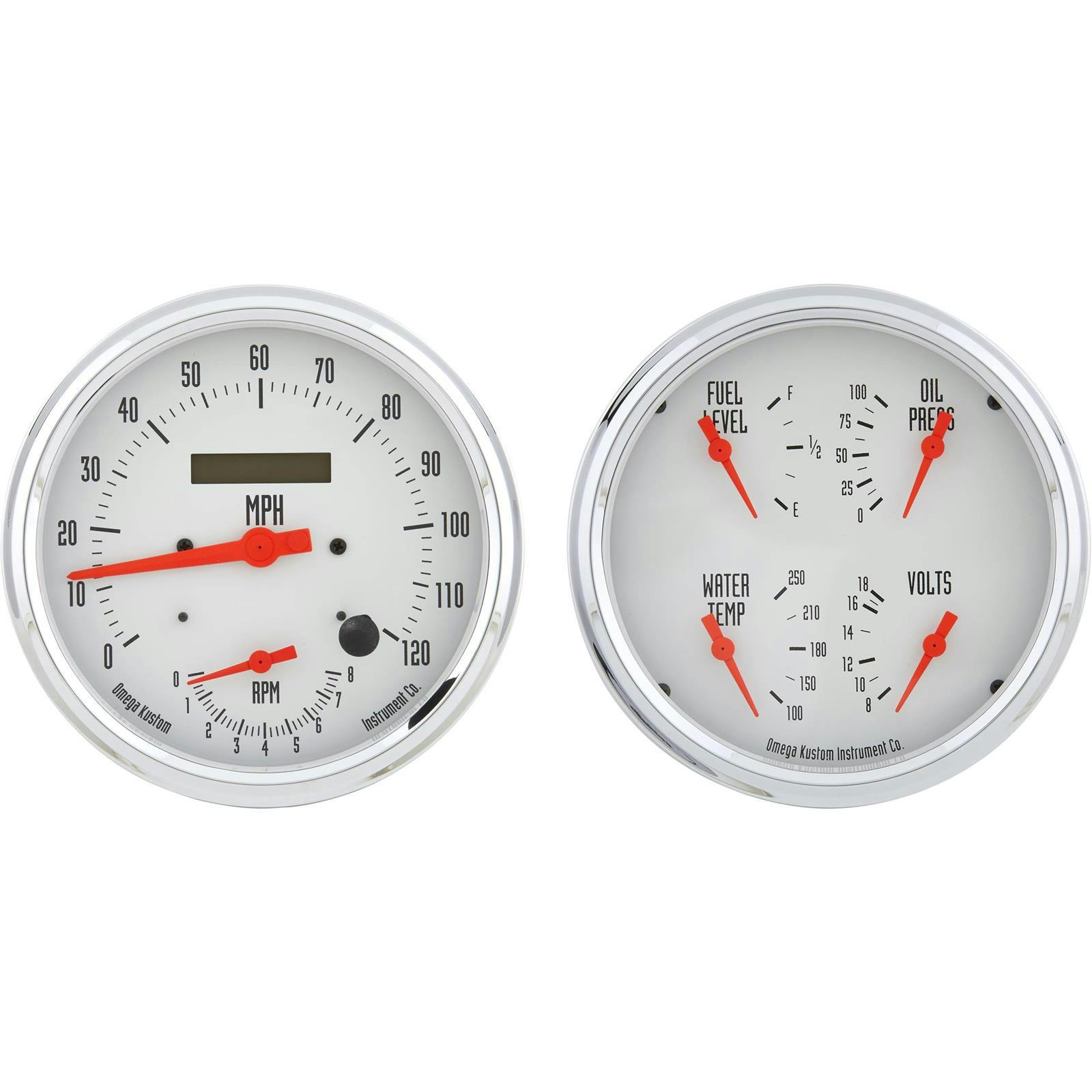

Omega Kustom Quad Gauge and Speedometer/Tach Combo, 4-5/8 Inch

Omega Kustom Instruments manufactures high-quality gauges that are designed to not only look excellent but perform to your expectations of a high-performance instrument kit. All of Omega Kustom's instruments have the finest movements and latest lighting technology available today. They feature chrome bezels and real glass lenses in three different designs: Black Top, Kool White, and Timeless Tan.

These universal fit 2-gauge sets include an electric 4-5/8" speedometer/tachometer combo gauge and a 4-5/8" quad gauge that includes: oil pressure, water temperature, fuel level, and voltmeter. The electric programmable speedometer has many functions including trip odometer, hour meter, and over speed indicator. They are compatible with most OEM computers/signal generators, including those found on GM LT1, LS1, and most Fords.

Standard features include:

• Chrome bezels
• Anti-scratch flat glass lenses
• Plastic cases (won't rust)
• Precision movements
• Latest perimeter lighting technology
• Works with 12 volt electrical systems
• Includes 1/8" NPT oil and water senders
• Includes 240/33 ohm fuel sender
• Includes adjustable plastic brackets (won't rust)

Electronic speedometer features include:

• Easy one-button programming
• Can be programmed to match your gear ratio and tire diameter
• Programming button can be hidden
• Programs to most computers and electronic transmissions
• GPS compatible
• Odometer
• Trip odometer
• Hour meter
• Over speed indicator
• Maximum speed save
• Service interval reminder
• 0-8,000 RPM tachometer

Other features include:

• Fuel sender can be used as a right or left swing
• Works in fuel tanks from 6" to 24" deep
• Oil pressure sender includes a warning light terminal which triggers at 5 PSI

Dimensions:

• Speedometer:
  • Hole size is 4.625"
  • Bezel diameter is 5"
• Quad Gauge:
  • Hole size is 4.625"
  • Bezel diameter is 5"

Omega Kustom Instructions (PDF)
