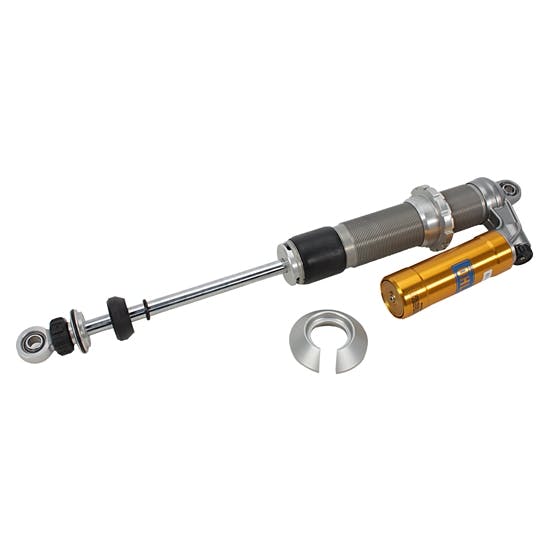

Ohlins LMP Series Dirt Late Model Shocks, Left Rear
Ohlins LMP Series Dirt Late Model Shocks, Left Rear
Ohlins

|

#5533300

Ohlins LMP Series Dirt Late Model Shocks, Left Rear

Model:

Select a model

$671.99

/each

In Stock


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Dirt Late Model, Rear Left Position

    See more details

    Key Specs

    Shock TypeTwin Tube
    Shock AdjustabilitySingle Adjustable
    Shock Body MaterialAluminum
    Body Diameter1.81"
    Shock Body TypeThreaded
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    Details

    The LMP is based off of the championship winning LMJ shock but is upgraded to a piggyback style reservoir. The LMP piggy back cylinder head offers many advantages over the hose style shock absorber
    • The large port cylinder head’s oil flow path is highly efficient
    • Less risk of cavitation due to the less restricted, efficient flow of oil
    • Better performing BOB-R Compression Valve
    • Improved reliability because of the elimination of hose
    • Ease of installation, no remote reservoir to mount

    Item Details

    Left Rear

    Application

    • Model   5 - Black rocket - old style (agressive on the throttle)
    • Model   6 - Crate anything
    • Model   7 - All around
    • Model   8 - Blue rocket front end (agressive on the throttle)
    • Model   9 - Blue rocket front end (smooth driver)
    • Model 10 - Mastersbilt (flat set up)

    Front: Extended 19.8", Compressed 12.8"

    Rear: Extended 23.3", Compressed 14.3"

    Specifications

    KEY SPECS
    BrandOhlins
    Shock TypeTwin Tube
    Shock AdjustabilitySingle Adjustable
    Shock Body MaterialAluminum
    Body Diameter1.81"
    Shock Body TypeThreaded
    Shock Body SizeLarge Body
    Shock Stroke Range9.00" to 9.99"
    PositionRear Left
    Stroke9"
    Compression ValvingSelect Model to see
    Rebound ValvingCustom
    Upper Shock MountEyelet
    Lower Shock MountEyelet
    Extended Length Range23.00" to 23.99"
    Extended Length23.31"
    Compressed Length Range14.00" to 14.99"
    FinishNatural
    Compressed Length14.3"
    Gas ChargedYes
    GENERAL
    RebuildableYes
