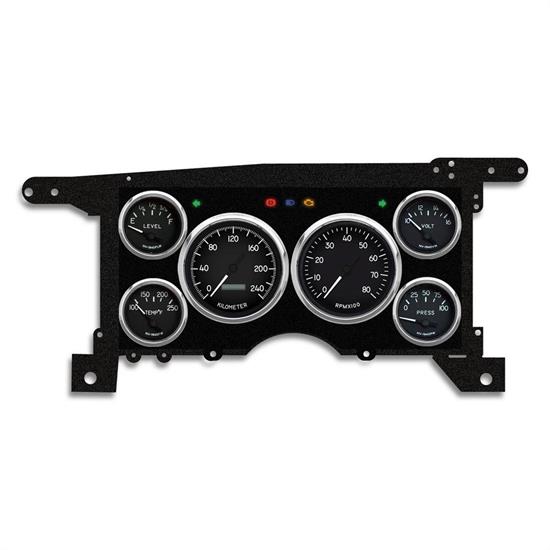

New Vintage USA 90411-01M 6 Gauge Performance KM/H 86 93 Chev

NVU gauge kits for 86-93 S-10/15 Pickup and 86-94 S10/15 Blazer offer the easiest way to upgrade the dash with all the functions you need. Each kit starts with NVU's exclusive ABS Laser-cut mounting system with laminate printed overlay including hidden indicators for turn signals, hi beam, check engine and warning light. Uses the existing stock dash spacer for a clean, factory-installed look.

Installs in the factory location using all OE mountings. Stock cluster spacer is re-used for a factory-installed fit. NVU's exclusive dead-fronted mounting panel hides the indicators when off, then clearly lights the icons when on. Each package includes speedometer, tachometer, voltmeter, water temperature, oil pressure and a factory match 0-90 ohm fuel gauge. Kits are bolt-in and require wiring similar to any gauge kit, some splicing is required (not plug-and-play). Kits also include temperature sender, pressure sender, bushing kit and detailed instructions. May require speed sender for electronic speedometers, check your application. Need to add-on? NVU offers a full line of matching gauges in functions form Air-Fuel ratio, oil temp, trans temp and vacuum/boost.

Performance Series gauges feature air core meters and incandescent perimeter lighting (works with factory dimmer).

Inspired by military sets, the 1940 Series has duplicated the feel of the very popular aircraft and military gauges of the 30s and 40s, but with modern technology. Why buy salvage yard gauges that don’t match, or work for that matter? We started with the military graphics and upgraded to domed lenses and stainless steel bezels for an upscale, “5-Star General” appearance. The graphics are duplicated down to the smallest detail, and a white-tipped pointer adds to the effect.

Kit includes:

Speedometer, 3-3/8" Programmable electronic 240 kph

Tachometer 3-3/8"

Fuel gauge 2-1/16", 0-90 ohm factory match

Water temperature gauge 2-1/16:

Oil pressure gauge 2-1/16"

Voltmeter 2-1/16"

Oil pressure and water temperature senders

Bushing kit

Mounting bracket

Instruction booklet

Mounting hardware for gauges

* Speed sender may be required, check your application, not included in kit. NVU Programmable speedometers will operate on stock VSS (speed sender) from stock S-10/GM transmission or PCM output.

Installation Instructions (PDF)

Installation Instructions (PDF)

Some parts are not legal for use in California or other states with similar laws/regulations
