New Vintage USA 89211-01 6 Gauge Performance ll Black 88-94 Chev
88-94 Chevy, 88-94 GMC, Analog Gauge Series, Electric Gauge Style, Black, Titanium Smoke

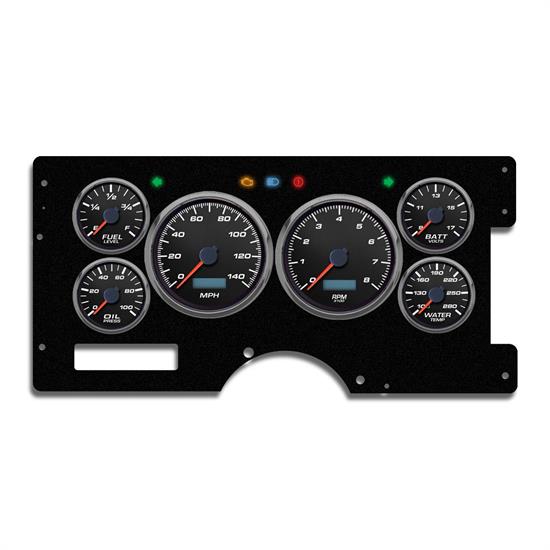

NVU gauge packages for 88-94 full size trucks bring some class to the dash! 6 gauges packed into an NVU exclusive CNC laminate printed cluster bracket with turn signals and indicators. Installs in the factory location and can incorporate the stock shift indicator (PRNDL). Installs using the OE cluster visor for a clean, professional looking installation. Included 0-90 (factory match) fuel gauge. Gauges can be repositioned to your liking and must be wired up by splicing into harness as in most aftermarket installations (not plug-and-play) Programmable speedometers can operate on stock VSS (speed sender) or PCM output; Tachometers can read from HEI, any coil or PCM output.
Performance II Series instruments have the combined style of European sports car and racing gauges. This performance look has a classic gauge feel without the "in-your-face" look of a racing gauge. Full sweep stepper motors for higher dial resolution and blue LED back lighting at night. Titanium bezels and flat glass add to the high class, OE installed look. Just like always, NVU does not have any logos on the dial so the final result will be a professional, custom look.
They say looks are only skin deep, behind the scenes the GENII stepper motor internals offer selectable inputs for fuel gauge (0-90 GM, 73-10 Ford, 240-33 Universal and 16-158 late Ford, other custom programmed options available) with full tank sender dampening. Fuel senders are not included and must be purchased separately. Programmable speedometer operates on ANY pulsed sender with a 3000-64,000 Pulse Per Mile (PPM) input with push-button programming. Programmable tachometer has integrated shift outputs, hour meter and operates on ANY tach signal input from a coil, magneto, CDI (MSD box), PCM (computer), Diesel crank or cam sensor and alternator "W" terminal.
- Speedometer, 3-3/8" Programmable electronic 140 MPH
- Tachometer 3-3/8"
- Fuel gauge 2-1/16", 0-90 ohm factory match
- Water temperature gauge 2-1/16:
- Oil pressure gauge 2-1/16"
- Voltmeter 2-1/16"
- Oil pressure and water temperature senders
- Bushing kit
- Mounting bracket
- Instruction booklet
- Mounting hardware for gauges
* Speed sender may be required, check your application, not included in kit. NVU Programmable speedometers will operate on stock VSS (speed sender) from stock S-10/GM transmission or PCM output.
ChartsInstallation Instructions (PDF)
- This item ships directly from the manufacturer. It may take an additional 3 business days for New Vintage USA to ship this item.
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
