Product Summary

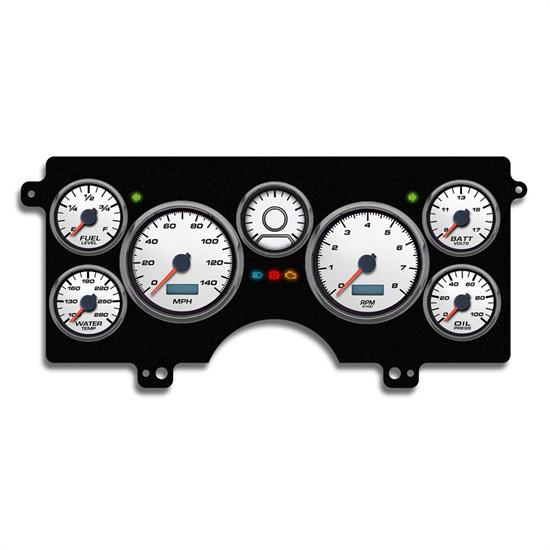

84-87 Buick Regal, Analog Gauge Series, White, Red

    Key Specs

    MFG. Part #84211-03
    BrandNew Vintage USA
    Gauge SeriesAnalog
    Gauge StyleElectric
    Gauge Set DesignDash Cluster

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Details

    NVU has been building these for years a s a custom, now its finally available as a standard part! Bring your 84-87 Buick Regal N/A (natural aspiration non-turbo) dash to the next level with a complete kit from NVU. Designed to fit similar to the GNX style, the exclusive laminate printed CNC cut bracket bolts to the stock mounting tabs. The printed acrylic trim with black and silver finish adds a touch of class and cleans up any ragged edges left from trimming. (trimming of stock bezel required, see instructions). NVU also included deadfronted (now you see it, now you don't) turn signals, hi beam and warning lamps to the panel for a clean, professional look. Kits include matching center filler gauge that can be removed in the event you need to add on a matching gauge for boost, trans temp, oil temp, etc..

    Performance II Series instruments have the combined style of European sports car and racing gauges. This performance look has a classic gauge feel without the "in-your-face" look of a racing gauge. Full sweep stepper motors for higher dial resolution and blue LED back lighting at night. Titanium bezels and flat glass add to the high class, OE installed look. Just like always, NVU does not have any logos on the dial so the final result will be a professional, custom look.

    They say looks are only skin deep, behind the scenes the GENII stepper motor internals offer selectable inputs for fuel gauge (0-90 GM, 73-10 Ford, 240-33 Universal and 16-158 late Ford, other custom programmed options available) with full tank sender dampening. Fuel senders are not included and must be purchased separately. Programmable speedometer operates on ANY pulsed sender with a 3000-64,000 Pulse Per Mile (PPM) input with push-button programming. Programmable tachometer has integrated shift outputs, hour meter and operates on ANY tach signal input from a coil, magneto, CDI (MSD box), PCM (computer), Diesel crank or cam sensor and alternator "W" terminal.

    Kit includes:

    Speedometer, 3-3/8" Programmable electronic 140 MPH

    Tachometer 3-3/8"

    Filler gauge

    Fuel gauge 2-1/16", 0-90 ohm factory match

    Water temperature gauge 2-1/16:

    Oil pressure gauge 2-1/16"

    Voltmeter 2-1/16"

    Oil pressure and water temperature senders

    Bushing kit

    Mounting bracket

    Instruction booklet

    Mounting hardware for gauges

    * Speed sender may be required, check your application, not included in kit. NVU Programmable speedometers will operate on stock VSS (speed sender) from stock S-10/GM transmission or PCM output.

    For all technical/repair/warranty product questions or needs, please contact New Vintage directly. For all other inquiries regarding shipping and delivery information, please contact the Speedway Motors Customer Experience Center.

    For all technical/repair/warranty product questions or needs, please contact New Vintage directly. For all other inquiries regarding shipping and delivery information, please contact the Speedway Motors Customer Experience Center.

    Charts

    Specifications

    KEY SPECS
    MFG. Part #84211-03
    BrandNew Vintage USA
    Gauge SeriesAnalog
    Gauge StyleElectric
    Gauge Set DesignDash Cluster
    GENERAL
    Gauge Face ColorWhite
    Bezel FinishTitanium Smoke
    Needle ColorRed
    Lettering ColorBlack
    Includes Mounting Bracket(s)Yes
    Fuel Sender IncludedNo
    Speed Sender IncludedNo
    Oil Pressure Sender IncludedYes
    Turn Signals IncludedYes
    Includes Wire HarnessNo
    Bezel IncludedYes
    Gauge TypeAnalog
    Lens StyleFlat
    Temperature Sensor Bung IncludedYes
    GTIN Code689860959828
