Product Summary

78-88 Pontiac Grand Prix, Analog Gauge Series, Black

    Key Specs

    MFG. Part #83111-03
    BrandNew Vintage USA
    Gauge SeriesAnalog
    Gauge StyleElectric
    Gauge Set DesignDash Cluster

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Details

    Gauge kits for 78-88 Pontiac Grand Prix enable installation of NVU instruments into the stock location in the Pontiac dash. 6 gauges kits help you monitor the vitals while upgrading the look and features of the stock dash. Instruments can be installed in any position to suit your taste. NVU's exclusive center indicator allow the use of warning lights, turn signals and hi beam. Bracket is manufactured using NVU's exclusive CNC laminate process with adjustabilty for a perfect fit every time.

    Performance II Series instruments have the combined style of European sports car and racing gauges. This performance look has a classic gauge feel without the "in-your-face" look of a racing gauge. Full sweep stepper motors for higher dial resolution and blue LED back lighting at night. Titanium bezels and flat glass add to the high class, OE installed look. Just like always, NVU does not have any logos on the dial so the final result will be a professional, custom look.

    They say looks are only skin deep, behind the scenes the GENII stepper motor internals offer selectable inputs for fuel gauge (0-90 GM, 73-10 Ford, 240-33 Universal and 16-158 late Ford, other custom programmed options available) with full tank sender dampening. Fuel senders are not included and must be purchased separately. Programmable speedometer operates on ANY pulsed sender with a 3000-64,000 Pulse Per Mile (PPM) input with push-button programming. Programmable tachometer has integrated shift outputs, hour meter and operates on ANY tach signal input from a coil, magneto, CDI (MSD box), PCM (computer), Diesel crank or cam sensor and alternator "W" terminal.

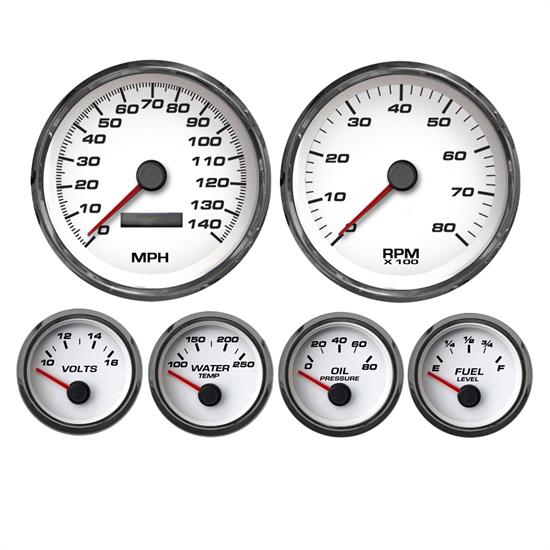

    6 gauge kit components: 4-3/8" speedometer 0-140 MPH, 4-3/8" tachometer 0-8,000 RPM ,Fuel gauge with user selectable ranges: 0-90 (GM), 73-10 (Ford), 240-33 (universal), 16-158 (Ford late) ,Water temperature gauge ,Oil pressure gauge ,Voltmeter ,Bushing kit ,Programming button ,Spin-on back-clamps ,Wiring harnesses ,Temperature sender , oil pressure sender ,*Fuel and speed senders may be required, check your application

    For all technical/repair/warranty product questions or needs, please contact New Vintage directly. For all other inquiries regarding shipping and delivery information, please contact the Speedway Motors Customer Experience Center.

    For all technical/repair/warranty product questions or needs, please contact New Vintage directly. For all other inquiries regarding shipping and delivery information, please contact the Speedway Motors Customer Experience Center.

    Charts

    Specifications

    KEY SPECS
    MFG. Part #83111-03
    BrandNew Vintage USA
    Gauge SeriesAnalog
    Gauge StyleElectric
    Gauge Set DesignDash Cluster
    GENERAL
    Gauge Face ColorBlack
    Bezel FinishBlack
    Needle ColorRed
    Lettering ColorWhite
    Includes Mounting Bracket(s)Yes
    Fuel Sender IncludedNo
    Speed Sender IncludedNo
    Oil Pressure Sender IncludedYes
    Turn Signals IncludedYes
    Includes Wire HarnessNo
    Bezel IncludedYes
    Gauge TypeAnalog
    Lens StyleFlat
    Temperature Sensor Bung IncludedYes
    GTIN Code689860960091
