New Vintage USA 82421-01 7 Gauge Aviator Blk 82-89 Buick T/GN
$1,044.99
/set
Factory Shipped
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
|
#2768242101
$1,044.99
/set
Factory Shipped
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
| MFG. Part # | 82421-01 |
| Gauge Series | Analog |
| Gauge Style | Electric |
| Gauge Set Design | Dash Cluster |
| Gauge Face Color | Black |
Need help?
855.313.9176Quick and Easy Returns

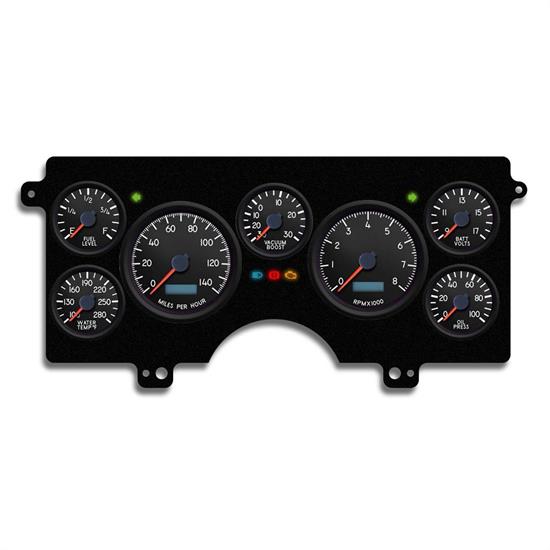

Return PolicyNVU has been building these for years a s a custom, now its finally available as a standard part! Bring your 82-87 Buick Regal/T-Type and Grand National dash to the next level with a complete kit from NVU. Designed to fit similar to the GNX style, the exclusive laminate printed CNC cut bracket bolts to the stock mounting tabs. The printed acrylic trim with black and silver finish adds a touch of class and cleans up any ragged edges left from trimming. (trimming of stock bezel required, see instructions). NVU also included deadfronted (now you see it, now you don't) turn signals, hi beam and warning lamps to the panel for a clean, professional look. Kits include matching vacuum/boost gauge to monitor the turbo.
AVIATOR instruments deliver the information you need to monitor your vitals in a clean, easy to read package that is designed to be rugged and take the abuse you throw at your high-performance vehicle, whether its race, off road or daily driver. LED back lit glow red at night for for minimal pupil dilation at night. Instruments feature hard-shock case and spin-on back clamp with vibration dampening o-ring, waterproof up to 35 PSI from the front,. The AVIATOR instrument line will not only add distinction to the dash but will also make sure your ride is operating properly in any conditions. Topped with black bezels and flat glass for easy viewing in open-cockpit vehicles. Great choice for a hot rod with a modern twist Jeeps, off road, pro-touring builds with an aviation theme or any vehicle that demands a military look while maintaining easy visibility at night
Kit includes:
Speedometer, 3-3/8" Programmable electronic 140 MPH
Tachometer 3-3/8"
Vacuum/Boost gauge- Electronic with transducer sending unit
Fuel gauge 2-1/16", 0-90 ohm factory match
Water temperature gauge 2-1/16:
Oil pressure gauge 2-1/16"
Voltmeter 2-1/16"
Oil pressure and water temperature senders
Bushing kit
Mounting bracket
Instruction booklet
Mounting hardware for gauges
* Speed sender may be required, check your application, not included in kit. NVU Programmable speedometers will operate on stock VSS (speed sender) from stock S-10/GM transmission or PCM output.
For all technical/repair/warranty product questions or needs, please contact New Vintage directly. For all other inquiries regarding shipping and delivery information, please contact the Speedway Motors Customer Experience Center.
Charts
| KEY SPECS | |
|---|---|
| MFG. Part # | 82421-01 |
| Brand | New Vintage USA |
| Gauge Series | Analog |
| Gauge Style | Electric |
| Gauge Set Design | Dash Cluster |
| Gauge Face Color | Black |
| Bezel Finish | Black |
| GENERAL | |
| Sold in Quantity | Kit |
| GTIN Code | 689860959323 |
| Number of Gauge Housings | 7 |
| Speedometer Diameter | 3-3/8 Inch |
| Tachometer Diameter | 3-3/8 Inch |
| Auxiliary Gauge Diameter | 2-1/16 Inch |
| Liquid Filled | No |
| Lighted | No |
| Lighting Type | LCD |
| Light Color | White |
| Needle Color | Red |
| Lettering Color | White |
| Mount Type | Direct |
| Speedometer Included | Yes |
| Tachometer Included | Yes |
| Oil Pressure Gauge Included | Yes |
| Oil Temperature Gauge Included | No |
| Water Pressure Gauge Included | No |
| Water Temperature Gauge Included | Yes |
| Fuel Pressure Gauge Included | No |
| Fuel Level Gauge Included | Yes |
| Vacuum Gauge Included | Yes |
| Volt Gauge Included | Yes |
| Ammeter Gauge Included | No |
| Boost/Pyrometer Gauge Included | No |
| Exhaust Pressure Gauge Included | No |
| Odometer Gauge Included | Yes |
| Includes Mounting Bracket(s) | Yes |
| Clock Included | No |
| Fuel Sender Included | No |
| Speed Sender Included | No |
| Oil Pressure Sender Included | Yes |
| Turn Signals Included | Yes |
| Includes Wire Harness | No |
| Bezel Included | Yes |
| Gauge Type | Analog |
| Lens Style | Flat |
| Temperature Sensor Bung Included | Yes |
| Shape | Round |
| Tripometer | Yes |
| Warning Lights Included | Yes |
| Boost Gauge Included | Yes |
