New Vintage USA 82211-03M 7 Gaug Perform ll KM/H 82-89 Buick T/GN

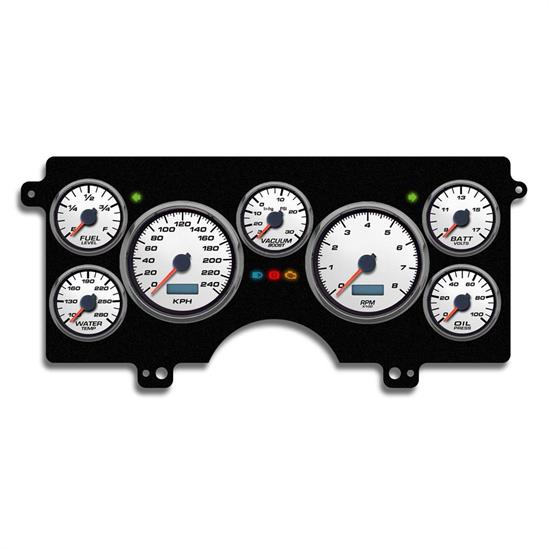

NVU has been building these for years a s a custom, now its finally available as a standard part! Bring your 82-87 Buick Regal/T-Type and Grand National dash to the next level with a complete kit from NVU. Designed to fit similar to the GNX style, the exclusive laminate printed CNC cut bracket bolts to the stock mounting tabs. The printed acrylic trim with black and silver finish adds a touch of class and cleans up any ragged edges left from trimming. (trimming of stock bezel required, see instructions). NVU also included deadfronted (now you see it, now you don't) turn signals, hi beam and warning lamps to the panel for a clean, professional look. Kits include matching vacuum/boost gauge to monitor the turbo.

Performance II Series instruments have the combined style of European sports car and racing gauges. This performance look has a classic gauge feel without the "in-your-face" look of a racing gauge. Full sweep stepper motors for higher dial resolution and blue LED back lighting at night. Titanium bezels and flat glass add to the high class, OE installed look. Just like always, NVU does not have any logos on the dial so the final result will be a professional, custom look.

They say looks are only skin deep, behind the scenes the GENII stepper motor internals offer selectable inputs for fuel gauge (0-90 GM, 73-10 Ford, 240-33 Universal and 16-158 late Ford, other custom programmed options available) with full tank sender dampening. Programmable speedometer operates on ANY pulsed sender with a 3000-64,000 Pulse Per Mile (PPM) input with push-button programming. Programmable tachometer has integrated shift outputs, hour meter and operates on ANY tach signal input from a coil, magneto, CDI (MSD box), PCM (computer), Diesel crank or cam sensor and alternator "W" terminal.

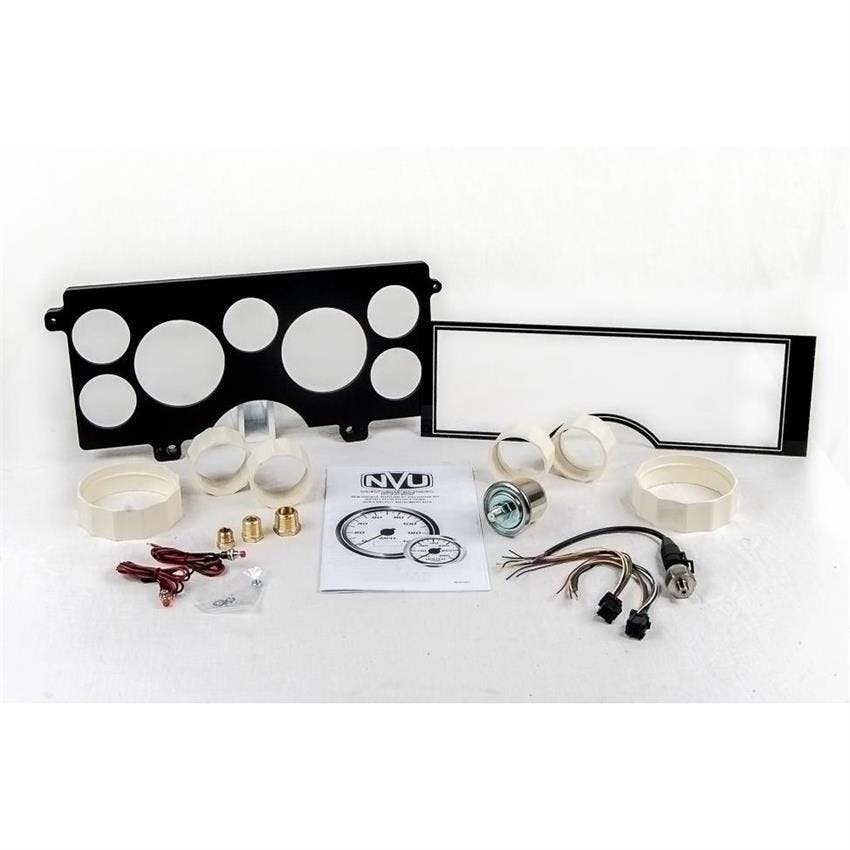

Kit includes:

Speedometer, 3-3/8" Programmable electronic 240 kph

Tachometer 3-3/8"

Vacuum/Boost gauge- Electronic with transducer sending unit

Fuel gauge 2-1/16", 0-90 ohm factory match

Water temperature gauge 2-1/16:

Oil pressure gauge 2-1/16"

Voltmeter 2-1/16"

Oil pressure and water temperature senders

Bushing kit

Mounting bracket

Instruction booklet

Mounting hardware for gauges

* Speed sender may be required, check your application, not included in kit. NVU Programmable speedometers will operate on stock VSS (speed sender) from stock S-10/GM transmission or PCM output.

For all technical/repair/warranty product questions or needs, please contact New Vintage directly. For all other inquiries regarding shipping and delivery information, please contact the Speedway Motors Customer Experience Center.



Installation Instructions (PDF)

Installation Instructions (PDF)
