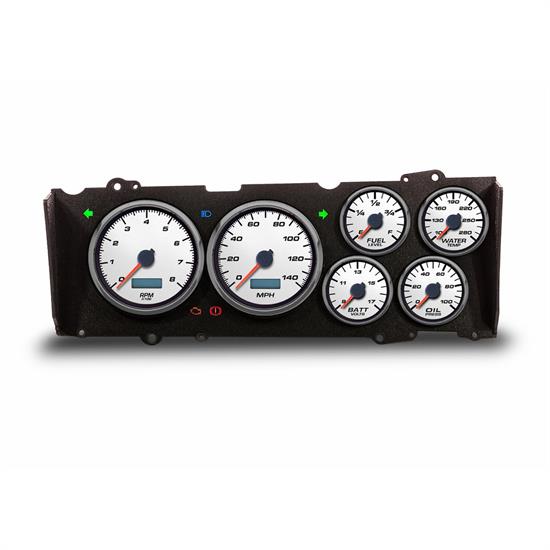

New Vintage USA 81211-03 6 Gauge Performance ll Wht 78-88 Cutlass
78-81 Oldsmobile Cutlass, 85-88 Oldsmobile Cutlass, Analog Gauge Series, Electric Gauge Style
Built around NVU's tried and true period styled and themed instruments in air core perimeter lighting or Full sweep stepper motor with LED backlighting, several bold and exciting styles will bring your dash to the next level while monitoring the vitals. The mounting solution bolts in place of the stock cluster (some trimming behind the scenes required for clearance not visible when installed). Bracket assembly features NVU's exclusive CNC laser ABC/Polycarbonate laminate printed icons with LED lights for a professional look.
Installs in the factory location using all OE mountings.( clearancing of back plate required not visible when installed. NVU's exclusive dead-fronted mounting panel hides the indicators when off, then clearly lights the icons when on. Each package includes speedometer, tachometer, voltmeter, water temperature, oil pressure and a factory match 0-90 ohm fuel gauge. Kits are bolt-in and require wiring similar to any gauge kit, some splicing is required (not plug-and-play). Kits also include temperature sender, pressure sender, bushing kit and detailed instructions. May require speed sender for electronic speedometers, check your application.
Need to add-on? NVU offers a full line of matching gauges in functions form Air-Fuel ratio, oil temp, trans temp and vacuum/boost.
They say looks are only skin deep, behind the scenes the GENII stepper motor internals offer selectable inputs for fuel gauge (0-90 GM, 73-10 Ford, 240-33 Universal and 16-158 late Ford, other custom programmed options available) with full tank sender dampening. Fuel senders are not included and must be purchased separately. Programmable speedometer operates on ANY pulsed sender with a 3000-64,000 Pulse Per Mile (PPM) input with push-button programming. Programmable tachometer has integrated shift outputs, hour meter and operates on ANY tach signal input from a coil, magneto, CDI (MSD box), PCM (computer), Diesel crank or cam sensor and alternator "W" terminal.

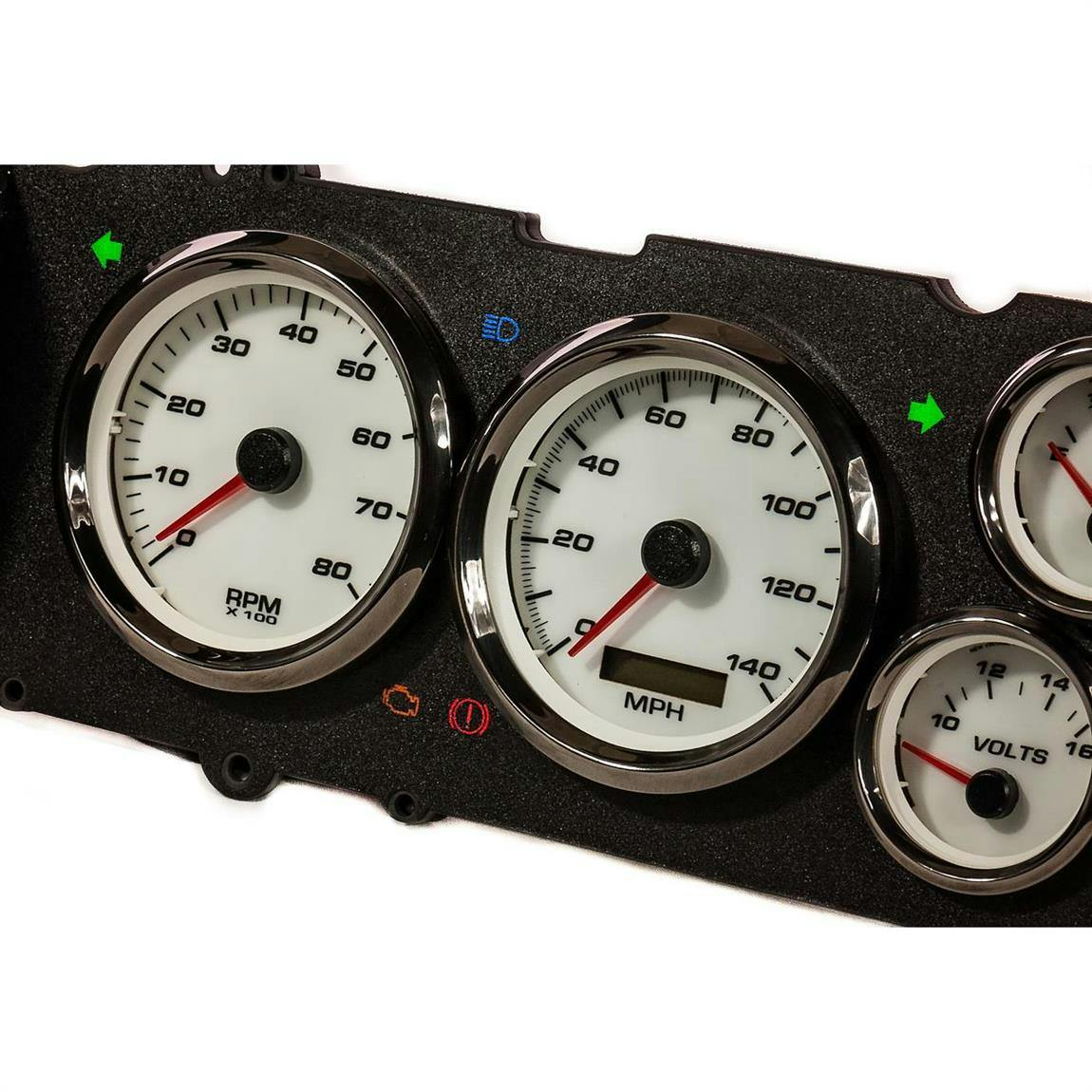

Speedometer, 3-3/8" Programmable electronic 140 MPH
Fuel gauge 2-1/16", 0-90 ohm factory match
Water temperature gauge 2-1/16:
Oil pressure gauge 2-1/16"
Oil pressure and water temperature senders
Mounting hardware for gauges
* Speed sender may be required, check your application, not included in kit. NVU Programmable speedometers will operate on stock VSS (speed sender) from stock GM transmission or PCM output.
- This item ships directly from the manufacturer. It may take an additional 3 business days for New Vintage USA to ship this item.
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
