Product Summary

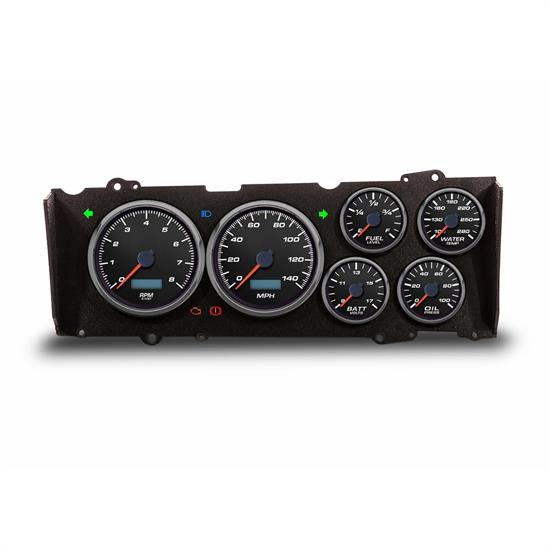

78-81 Oldsmobile Cutlass, 85-88 Oldsmobile Cutlass, Red

    Key Specs

    MFG. Part #81211-01
    BrandNew Vintage USA
    Gauge SeriesAnalog
    Gauge StyleElectric
    Gauge Set DesignDash Cluster

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Details

    Built around NVU's tried and true period styled and themed instruments in air core perimeter lighting or Full sweep stepper motor with LED backlighting, several bold and exciting styles will bring your dash to the next level while monitoring the vitals. The mounting solution bolts in place of the stock cluster (some trimming behind the scenes required for clearance not visible when installed). Bracket assembly features NVU's exclusive CNC laser ABC/Polycarbonate laminate printed icons with LED lights for a professional look.

    Installs in the factory location using all OE mountings.( clearancing of back plate required not visible when installed. NVU's exclusive dead-fronted mounting panel hides the indicators when off, then clearly lights the icons when on. Each package includes speedometer, tachometer, voltmeter, water temperature, oil pressure and a factory match 0-90 ohm fuel gauge. Kits are bolt-in and require wiring similar to any gauge kit, some splicing is required (not plug-and-play). Kits also include temperature sender, pressure sender, bushing kit and detailed instructions. May require speed sender for electronic speedometers, check your application.

    Need to add-on? NVU offers a full line of matching gauges in functions form Air-Fuel ratio, oil temp, trans temp and vacuum/boost.

    They say looks are only skin deep, behind the scenes the GENII stepper motor internals offer selectable inputs for fuel gauge (0-90 GM, 73-10 Ford, 240-33 Universal and 16-158 late Ford, other custom programmed options available) with full tank sender dampening. Fuel senders are not included and must be purchased separately. Programmable speedometer operates on ANY pulsed sender with a 3000-64,000 Pulse Per Mile (PPM) input with push-button programming. Programmable tachometer has integrated shift outputs, hour meter and operates on ANY tach signal input from a coil, magneto, CDI (MSD box), PCM (computer), Diesel crank or cam sensor and alternator "W" terminal.

    Kit includes:

    Speedometer, 3-3/8" Programmable electronic 140 MPH

    Tachometer 3-3/8"

    Fuel gauge 2-1/16", 0-90 ohm factory match

    Water temperature gauge 2-1/16:

    Oil pressure gauge 2-1/16"

    Voltmeter 2-1/16"

    Oil pressure and water temperature senders

    Bushing kit

    Mounting bracket

    Instruction booklet

    Mounting hardware for gauges

    * Speed sender may be required, check your application, not included in kit. NVU Programmable speedometers will operate on stock VSS (speed sender) from stock GM transmission or PCM output.

    For all technical/repair/warranty product questions or needs, please contact New Vintage directly. For all other inquiries regarding shipping and delivery information, please contact the Speedway Motors Customer Experience Center.

    For all technical/repair/warranty product questions or needs, please contact New Vintage directly. For all other inquiries regarding shipping and delivery information, please contact the Speedway Motors Customer Experience Center.

    Charts

    Specifications

    KEY SPECS
    MFG. Part #81211-01
    BrandNew Vintage USA
    Gauge SeriesAnalog
    Gauge StyleElectric
    Gauge Set DesignDash Cluster
    GENERAL
    Gauge Face ColorBlack
    Bezel FinishTitanium Smoke
    Needle ColorRed
    Lettering ColorWhite
    Includes Mounting Bracket(s)Yes
    Fuel Sender IncludedNo
    Speed Sender IncludedNo
    Oil Pressure Sender IncludedYes
    Turn Signals IncludedYes
    Includes Wire HarnessNo
    Bezel IncludedYes
    Gauge TypeAnalog
    Lens StyleFlat
    Temperature Sensor Bung IncludedYes
    GTIN Code689860959729
