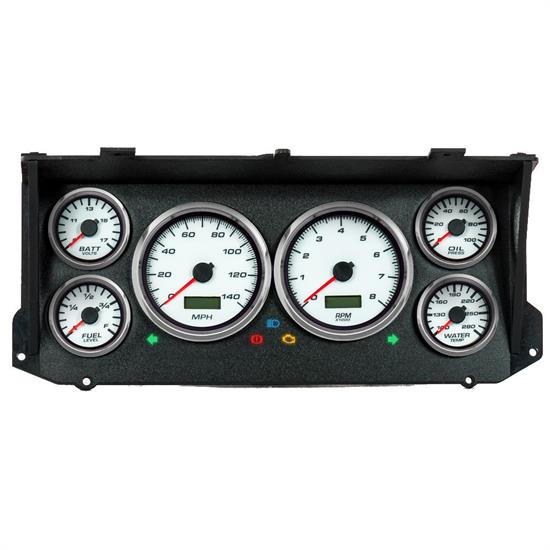

New Vintage USA 79026-03 6 Gauge Performance ll White 73-79 Ford

NVU brings you a new way to install aftermarket gauges in your 73-79 Ford Truck dash. Ditch those old square gauges and go with a new look altogether. NVU's exclusive CNC laminate brackets and cover pieces create the look you want while providing the info on the vitals you need. Create the look you want while retaining most fo the factory dash appearance, switches and layout. The exclusive CNC laser-cut mounting bracket features turn signals, hi beam and warning lamps, designed to match the factory viewing angle to kelp you keep your eye on the vitals. Requires removal of factory bezel "uprights" and installation of NVU cover pieces (included) 6 gauge kits include a factory-match 73-10 ohm fuel gauge to match standard tanks. Polished stainless steel bezels bring some pop to the dash.

Performance II Series instruments have the combined style of European sports car and racing gauges. This performance look has a classic gauge feel without the "in-your-face" look of a racing gauge. Full sweep stepper motors for higher dial resolution and blue LED back lighting at night. Polished, stainless bezels and flat glass add to the high class, OE installed look. Just like always, NVU does not have any logos on the dial so the final result will be a professional, custom look.

They say looks are only skin deep, behind the scenes the GENII stepper motor internals offer selectable inputs for fuel gauge (0-90 GM, 73-10 Ford, 240-33 Universal and 16-158 late Ford, other custom programmed options available) with full tank sender dampening. Fuel senders are not included and must be purchased separately. Programmable speedometer operates on ANY pulsed sender with a 3000-64,000 Pulse Per Mile (PPM) input with push-button programming. Programmable tachometer has integrated shift outputs, hour meter and operates on ANY tach signal input from a coil, magneto, CDI (MSD box), PCM (computer), Diesel crank or cam sensor and alternator "W" terminal.

Kit includes:

Speedometer, 3-3/8" Programmable electronic 140 MPH

Tachometer 3-3/8"

Filler gauge

Fuel gauge 2-1/16", 73-10 ohm factory match

Water temperature gauge 2-1/16:

Oil pressure gauge 2-1/16"

Voltmeter 2-1/16"

Oil pressure and water temperature senders

Bushing kit

Mounting bracket

Instruction booklet

Mounting hardware for gauges

* Speed sender may be required, check your application, not included in kit. NVU Programmable speedometers will operate on stock VSS (speed sender) from stock transmission.
