Add to Cart
$824.95
$749.95
New Vintage USA 78221-03 6 Gauge Performance ll Wht 78-81 G Body
New Vintage USA 78221-03 6 Gauge Performance ll Wht 78-81 G Body

New Vintage USA 78221-03 6 Gauge Performance ll Wht 78-81 G Body

78-81 Buick, 78-81 Chevy, 78-81 Oldsmobile, 78-81 Pontiac, Analog Gauge Series, White

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
New Vintage USA 78221-03 6 Gauge Performance ll Wht 78-81 G Body
New Vintage USA 78221-03 6 Gauge Performance ll Wht 78-81 G Body
New Vintage USA 78221-03 6 Gauge Performance ll Wht 78-81 G Body
New Vintage USA 78221-03 6 Gauge Performance ll Wht 78-81 G Body
New Vintage USA 78221-03 6 Gauge Performance ll Wht 78-81 G Body
New Vintage USA 78221-03 6 Gauge Performance ll Wht 78-81 G Body
New Vintage USA 78221-03 6 Gauge Performance ll Wht 78-81 G Body
X
New Vintage USA 78221-03 6 Gauge Performance ll Wht 78-81 G Body
New Vintage USA 78221-03 6 Gauge Performance ll Wht 78-81 G Body
New Vintage USA 78221-03 6 Gauge Performance ll Wht 78-81 G Body
New Vintage USA 78221-03 6 Gauge Performance ll Wht 78-81 G Body
New Vintage USA 78221-03 6 Gauge Performance ll Wht 78-81 G Body
Zoomed In Image
We estimate this item will ship on or before June 1st.
Part # 2767822103
Save 9%
$749.95
$824.95
set
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Gauge Series:
Analog
Gauge Style:
Electric
Gauge Set Design:
Dash Cluster
Gauge Face Color:
White
Bezel Finish:
Titanium Smoke
Needle Color:
Red
Lettering Color:
Black
Includes Mounting Bracket(s):
Yes
Fuel Sender Included:
No
Speed Sender Included:
No
Oil Pressure Sender Included:
Yes
Turn Signals Included:
Yes
Includes Wire Harness:
No
Bezel Included:
Yes
Gauge Type:
Analog
Lens Style:
Flat
Temperature Sensor Bung Included:
Yes
MFG. Part #:
78221-03
GTIN Code:
689860959910

Info

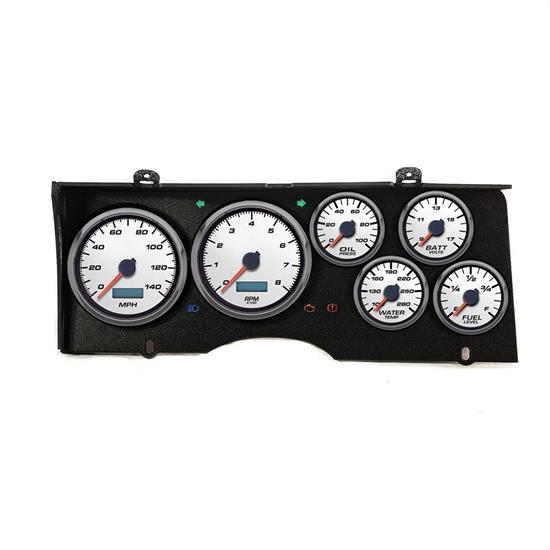

Custom gauge clusters for 78-81 Chevy G-Body cars bring your dash up to snuff. The first instrument product available anywhere that enables the installation of aftermarket gauges in the stock location utilizing the factory dash bezel for a clean, professional look. NVU style will make your dash look and perform as good as the rest of your build. Kits start off with NVU's exclusive CNC laser cut laminate mounting bracket with integrated deadfronted turn signals, hi beam, check engine and brake lamps incorporated. May require speed sender for electronic speedometers, check your application. Need to add-on? NVU offers a full line of matching gauges in functions form Air-Fuel ratio, oil temp, trans temp and vacuum/boost.

Performance II Series instruments have the combined style of European sports car and racing gauges. This performance look has a classic gauge feel without the "in-your-face" look of a racing gauge. Full sweep stepper motors for higher dial resolution and blue LED back lighting at night. Titanium bezels and flat glass add to the high class, OE installed look. Just like always, NVU does not have any logos on the dial so the final result will be a professional, custom look.

They say looks are only skin deep, behind the scenes the GENII stepper motor internals offer selectable inputs for fuel gauge (0-90 GM, 73-10 Ford, 240-33 Universal and 16-158 late Ford, other custom programmed options available) with full tank sender dampening. Fuel senders are not included and must be purchased separately. Programmable speedometer operates on ANY pulsed sender with a 3000-64,000 Pulse Per Mile (PPM) input with push-button programming. Programmable tachometer has integrated shift outputs, hour meter and operates on ANY tach signal input from a coil, magneto, CDI (MSD box), PCM (computer), Diesel crank or cam sensor and alternator "W" terminal.

Kit includes:

Speedometer, 3-3/8" Programmable electronic 140 MPH

Tachometer 3-3/8"

Filler gauge

Fuel gauge 2-1/16", 0-90 ohm factory match

Water temperature gauge 2-1/16:

Oil pressure gauge 2-1/16"

Voltmeter 2-1/16"

Oil pressure and water temperature senders

Bushing kit

Mounting bracket

Instruction booklet

Mounting hardware for gauges

* Speed sender may be required, check your application, not included in kit. NVU Programmable speedometers will operate on stock VSS (speed sender) from stock S-10/GM transmission or PCM output.

Installation Instructions (PDF)

Installation Instructions (PDF)

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 3 business days for New Vintage USA to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
